The ezRenderDevice class is the primary interface for interactions with rendering APIs It contains a set of (non-virtual) functions to set state, create resources etc. which rely on API specific implementations provided by protected virtual functions. Redundant state changes are prevented at the platform independent level in the non-virtual functions. More...

#include <Device.h>

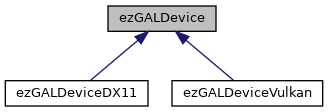

Inheritance diagram for ezGALDevice:

[legend]

Classes
struct	DeadObject

Public Types
using	SwapChainFactoryFunction = ezDelegate< ezGALSwapChain (ezAllocator )>

Public Member Functions
ezResult	Init ()

ezResult	Shutdown ()

ezStringView	GetRenderer ()

ezGALCommandEncoder *	BeginCommands (const char *szName)
	Begin recording GPU commands on the returned command encoder.

void	EndCommands (ezGALCommandEncoder *pCommandEncoder)
	Stop recording commands on the command encoder.

ezGALBlendStateHandle	CreateBlendState (const ezGALBlendStateCreationDescription &description)

void	DestroyBlendState (ezGALBlendStateHandle hBlendState)

ezGALDepthStencilStateHandle	CreateDepthStencilState (const ezGALDepthStencilStateCreationDescription &description)

void	DestroyDepthStencilState (ezGALDepthStencilStateHandle hDepthStencilState)

ezGALRasterizerStateHandle	CreateRasterizerState (const ezGALRasterizerStateCreationDescription &description)

void	DestroyRasterizerState (ezGALRasterizerStateHandle hRasterizerState)

ezGALSamplerStateHandle	CreateSamplerState (const ezGALSamplerStateCreationDescription &description)

void	DestroySamplerState (ezGALSamplerStateHandle hSamplerState)

ezGALBindGroupLayoutHandle	CreateBindGroupLayout (const ezGALBindGroupLayoutCreationDescription &description)

void	DestroyBindGroupLayout (ezGALBindGroupLayoutHandle hBindGroupLayout)

ezGALPipelineLayoutHandle	CreatePipelineLayout (const ezGALPipelineLayoutCreationDescription &description)

void	DestroyPipelineLayout (ezGALPipelineLayoutHandle hPipelineLayout)

ezGALGraphicsPipelineHandle	CreateGraphicsPipeline (const ezGALGraphicsPipelineCreationDescription &description)

void	DestroyGraphicsPipeline (ezGALGraphicsPipelineHandle hGraphicsPipeline)

ezGALComputePipelineHandle	CreateComputePipeline (const ezGALComputePipelineCreationDescription &description)

void	DestroyComputePipeline (ezGALComputePipelineHandle hComputePipeline)

ezGALShaderHandle	CreateShader (const ezGALShaderCreationDescription &description)

void	DestroyShader (ezGALShaderHandle hShader)

ezGALBufferHandle	CreateBuffer (const ezGALBufferCreationDescription &description, ezArrayPtr< const ezUInt8 > initialData=ezArrayPtr< const ezUInt8 >())

void	DestroyBuffer (ezGALBufferHandle hBuffer)

ezGALDynamicBufferHandle	CreateDynamicBuffer (const ezGALBufferCreationDescription &description, ezStringView sDebugName)

void	DestroyDynamicBuffer (ezGALDynamicBufferHandle &inout_hBuffer)

ezGALBufferHandle	CreateVertexBuffer (ezUInt32 uiVertexSize, ezUInt32 uiVertexCount, ezArrayPtr< const ezUInt8 > initialData=ezArrayPtr< const ezUInt8 >(), bool bDataIsMutable=false)

ezGALBufferHandle	CreateIndexBuffer (ezGALIndexType::Enum indexType, ezUInt32 uiIndexCount, ezArrayPtr< const ezUInt8 > initialData=ezArrayPtr< const ezUInt8 >(), bool bDataIsMutable=false)

ezGALBufferHandle	CreateConstantBuffer (ezUInt32 uiBufferSize)

ezGALTextureHandle	CreateTexture (const ezGALTextureCreationDescription &description, ezArrayPtr< ezGALSystemMemoryDescription > initialData=ezArrayPtr< ezGALSystemMemoryDescription >())

void	DestroyTexture (ezGALTextureHandle hTexture)

ezGALTextureHandle	CreateProxyTexture (ezGALTextureHandle hParentTexture, ezUInt32 uiSlice)

void	DestroyProxyTexture (ezGALTextureHandle hProxyTexture)

ezGALTextureHandle	CreateSharedTexture (const ezGALTextureCreationDescription &description, ezArrayPtr< ezGALSystemMemoryDescription > initialData={})

ezGALTextureHandle	OpenSharedTexture (const ezGALTextureCreationDescription &description, ezGALPlatformSharedHandle hSharedHandle)

void	DestroySharedTexture (ezGALTextureHandle hTexture)

ezGALReadbackBufferHandle	CreateReadbackBuffer (const ezGALBufferCreationDescription &description)

void	DestroyReadbackBuffer (ezGALReadbackBufferHandle hBuffer)

ezGALReadbackTextureHandle	CreateReadbackTexture (const ezGALTextureCreationDescription &description)

void	DestroyReadbackTexture (ezGALReadbackTextureHandle hTexture)

void	UpdateBufferForNextFrame (ezGALBufferHandle hBuffer, ezConstByteArrayPtr sourceData, ezUInt32 uiDestOffset=0)
	Ensures that the given buffer is updated at the beginning of the next frame.

void	UpdateTextureForNextFrame (ezGALTextureHandle hTexture, const ezGALSystemMemoryDescription &sourceData, const ezGALTextureSubresource &destinationSubResource={}, const ezBoundingBoxu32 &destinationBox=ezBoundingBoxu32::MakeZero())
	Ensures that the given texture is updated at the beginning of the next frame.

ezGALRenderTargetViewHandle	GetDefaultRenderTargetView (ezGALTextureHandle hTexture)

ezGALRenderTargetViewHandle	CreateRenderTargetView (const ezGALRenderTargetViewCreationDescription &description)

void	DestroyRenderTargetView (ezGALRenderTargetViewHandle hRenderTargetView)

ezGALSwapChainHandle	CreateSwapChain (const SwapChainFactoryFunction &func)

ezResult	UpdateSwapChain (ezGALSwapChainHandle hSwapChain, ezEnum< ezGALPresentMode > newPresentMode)

void	DestroySwapChain (ezGALSwapChainHandle hSwapChain)

ezGALVertexDeclarationHandle	CreateVertexDeclaration (const ezGALVertexDeclarationCreationDescription &description)

void	DestroyVertexDeclaration (ezGALVertexDeclarationHandle hVertexDeclaration)

ezEnum< ezGALAsyncResult >	GetTimestampResult (ezGALTimestampHandle hTimestamp, ezTime &out_result)
	Queries the result of a timestamp. Should be called every frame until ezGALAsyncResult::Ready is returned.

ezEnum< ezGALAsyncResult >	GetOcclusionQueryResult (ezGALOcclusionHandle hOcclusion, ezUInt64 &out_uiResult)
	Queries the result of an occlusion query. Should be called every frame until ezGALAsyncResult::Ready is returned.

ezEnum< ezGALAsyncResult >	GetFenceResult (ezGALFenceHandle hFence, ezTime timeout=ezTime::MakeZero())
	Queries the result of a fence. Fences can never expire as they are just monotonically increasing numbers over time.

ezReadbackBufferLock	LockBuffer (ezGALReadbackBufferHandle hReadbackBuffer, ezArrayPtr< const ezUInt8 > &out_memory)
	Tries to lock a readback buffer for reading. Only fails if the handle is invalid.

ezReadbackTextureLock	LockTexture (ezGALReadbackTextureHandle hReadbackTexture, const ezArrayPtr< const ezGALTextureSubresource > &subResources, ezDynamicArray< ezGALSystemMemoryDescription > &out_memory)
	Tries to lock a readback texture for reading. Only fails if the handle is invalid.

ezGALTextureHandle	GetBackBufferTextureFromSwapChain (ezGALSwapChainHandle hSwapChain)

void	EnqueueFrameSwapChain (ezGALSwapChainHandle hSwapChain)
	Adds a swap-chain to be used for the next frame. Must be called before or during the ezGALDeviceEvent::BeforeBeginFrame event (BeginFrame function) and repeated for every frame the swap-chain is to be used. This approach guarantees that all swap-chains of a frame acquire and present at the same time, which improves frame pacing.

void	BeginFrame (const ezUInt64 uiAppFrame=0)
	Begins rendering of a frame. This needs to be called first before any rendering function can be called.

void	EndFrame ()
	Ends rendering of a frame and submits all data to the GPU. No further rendering calls are allowed until BeginFrame is called again.

ezUInt64	GetCurrentFrame () const
	The current rendering frame. This is a monotonically increasing number which changes +1 every time EndFrame is called. You can use this to synchronize read/writes between CPU and GPU, see GetSafeFrame.

ezUInt64	GetSafeFrame () const
	The latest frame that has been fully executed on the GPU. Whenever you execute any work that requires synchronization between CPU and GPU, remember the GetCurrentFrame result in which the operation was done. When GetSafeFrame reaches this number, you know for sure that the GPU has completed all operations of that frame.

const ezGALDeviceCreationDescription *	GetDescription () const

const ezGALSwapChain *	GetSwapChain (ezGALSwapChainHandle hSwapChain) const

template<typename T >
const T *	GetSwapChain (ezGALSwapChainHandle hSwapChain) const

const ezGALShader *	GetShader (ezGALShaderHandle hShader) const

const ezGALTexture *	GetTexture (ezGALTextureHandle hTexture) const

virtual const ezGALSharedTexture *	GetSharedTexture (ezGALTextureHandle hTexture) const =0

const ezGALBuffer *	GetBuffer (ezGALBufferHandle hBuffer) const

const ezGALDynamicBuffer *	GetDynamicBuffer (ezGALDynamicBufferHandle hBuffer) const

ezGALDynamicBuffer *	GetDynamicBuffer (ezGALDynamicBufferHandle hBuffer)

const ezGALReadbackBuffer *	GetReadbackBuffer (ezGALReadbackBufferHandle hBuffer) const

const ezGALReadbackTexture *	GetReadbackTexture (ezGALReadbackTextureHandle hTexture) const

const ezGALDepthStencilState *	GetDepthStencilState (ezGALDepthStencilStateHandle hDepthStencilState) const

const ezGALBlendState *	GetBlendState (ezGALBlendStateHandle hBlendState) const

const ezGALRasterizerState *	GetRasterizerState (ezGALRasterizerStateHandle hRasterizerState) const

const ezGALVertexDeclaration *	GetVertexDeclaration (ezGALVertexDeclarationHandle hVertexDeclaration) const

const ezGALSamplerState *	GetSamplerState (ezGALSamplerStateHandle hSamplerState) const

const ezGALBindGroupLayout *	GetBindGroupLayout (ezGALBindGroupLayoutHandle hBindGroupLayout) const

const ezGALPipelineLayout *	GetPipelineLayout (ezGALPipelineLayoutHandle hPipelineLayout) const

const ezGALGraphicsPipeline *	GetGraphicsPipeline (ezGALGraphicsPipelineHandle hGraphicsPipeline) const

const ezGALComputePipeline *	GetComputePipeline (ezGALComputePipelineHandle hComputePipeline) const

const ezGALRenderTargetView *	GetRenderTargetView (ezGALRenderTargetViewHandle hRenderTargetView) const

const ezGALDeviceCapabilities &	GetCapabilities () const

virtual ezUInt64	GetMemoryConsumptionForTexture (const ezGALTextureCreationDescription &description) const

virtual ezUInt64	GetMemoryConsumptionForBuffer (const ezGALBufferCreationDescription &description) const

void	Flush ()

void	WaitIdle ()
	Waits for the GPU to be idle and destroys any pending resources and GPU objects.

ezAllocator *	GetAllocator ()
	Internal: Returns the allocator used by the device.

template<typename IdTableType , typename ReturnType >
EZ_ALWAYS_INLINE ReturnType *	Get (typename IdTableType::TypeOfId hHandle, const IdTableType &IdTable) const

template<typename HandleType >
EZ_FORCE_INLINE void	AddDeadObject (ezUInt32 uiType, HandleType handle)

Static Public Member Functions
static void	SetDefaultDevice (ezGALDevice *pDefaultDevice)

static ezGALDevice *	GetDefaultDevice ()

static bool	HasDefaultDevice ()

Public Attributes
ezMutex	m_Mutex

Static Public Attributes
static ezEvent< const ezGALDeviceEvent &, ezMutex >	s_Events

Protected Types
using	ShaderTable = ezIdTable< ezGALShaderHandle::IdType, ezGALShader *, ezLocalAllocatorWrapper >

using	BlendStateTable = ezIdTable< ezGALBlendStateHandle::IdType, ezGALBlendState *, ezLocalAllocatorWrapper >

using	DepthStencilStateTable = ezIdTable< ezGALDepthStencilStateHandle::IdType, ezGALDepthStencilState *, ezLocalAllocatorWrapper >

using	RasterizerStateTable = ezIdTable< ezGALRasterizerStateHandle::IdType, ezGALRasterizerState *, ezLocalAllocatorWrapper >

using	BufferTable = ezIdTable< ezGALBufferHandle::IdType, ezGALBuffer *, ezLocalAllocatorWrapper >

using	DynamicBufferTable = ezIdTable< ezGALDynamicBufferHandle::IdType, ezGALDynamicBuffer *, ezLocalAllocatorWrapper >

using	TextureTable = ezIdTable< ezGALTextureHandle::IdType, ezGALTexture *, ezLocalAllocatorWrapper >

using	ReadbackBufferTable = ezIdTable< ezGALReadbackBufferHandle::IdType, ezGALReadbackBuffer *, ezLocalAllocatorWrapper >

using	ReadbackTextureTable = ezIdTable< ezGALReadbackTextureHandle::IdType, ezGALReadbackTexture *, ezLocalAllocatorWrapper >

using	SamplerStateTable = ezIdTable< ezGALSamplerStateHandle::IdType, ezGALSamplerState *, ezLocalAllocatorWrapper >

using	RenderTargetViewTable = ezIdTable< ezGALRenderTargetViewHandle::IdType, ezGALRenderTargetView *, ezLocalAllocatorWrapper >

using	SwapChainTable = ezIdTable< ezGALSwapChainHandle::IdType, ezGALSwapChain *, ezLocalAllocatorWrapper >

using	VertexDeclarationTable = ezIdTable< ezGALVertexDeclarationHandle::IdType, ezGALVertexDeclaration *, ezLocalAllocatorWrapper >

using	BindGroupLayoutTable = ezIdTable< ezGALBindGroupLayoutHandle::IdType, ezGALBindGroupLayout *, ezLocalAllocatorWrapper >

using	PipelineLayoutTable = ezIdTable< ezGALPipelineLayoutHandle::IdType, ezGALPipelineLayout *, ezLocalAllocatorWrapper >

using	GraphicsPipelineTable = ezIdTable< ezGALGraphicsPipelineHandle::IdType, ezGALGraphicsPipeline *, ezLocalAllocatorWrapper >

using	ComputePipelineTable = ezIdTable< ezGALComputePipelineHandle::IdType, ezGALComputePipeline *, ezLocalAllocatorWrapper >

Protected Member Functions
	ezGALDevice (const ezGALDeviceCreationDescription &Description)

template<typename IdTableType , typename ReturnType >
ReturnType *	Get (typename IdTableType::TypeOfId hHandle, const IdTableType &IdTable) const

void	DestroyViews (ezGALTexture *pResource)

template<typename HandleType >
void	AddDeadObject (ezUInt32 uiType, HandleType handle)

template<typename HandleType >
void	ReviveDeadObject (ezUInt32 uiType, HandleType handle)

void	DestroyDeadObjects ()

void	VerifyMultithreadedAccess () const
	Asserts that either this device supports multi-threaded resource creation, or that this function is executed on the main thread.

const ezGALSwapChain *	GetSwapChainInternal (ezGALSwapChainHandle hSwapChain, const ezRTTI *pRequestedType) const

ezGALTextureHandle	FinalizeTextureInternal (const ezGALTextureCreationDescription &desc, ezGALTexture *pTexture)

template<typename Handle , typename View , typename ViewTable , typename CacheTable >
Handle	TryGetView (ezUInt32 uiHash, ViewTable &viewTable, CacheTable &cacheTable)

template<typename Handle , typename View , typename ViewTable , typename CacheTable >
Handle	InsertView (ezUInt32 uiHash, View *pView, ViewTable &viewTable, CacheTable &cacheTable)

template<typename View , typename Handle , typename ViewTable >
void	DestroyView (Handle hView, ViewTable &table, ezUInt32 galObjectType)

template<typename Handle , typename Resource , typename Table , typename CacheTable >
Handle	TryGetHashedResource (ezUInt32 uiHash, Table &table, CacheTable &cacheTable, ezUInt32 galObjectType, ezUInt32 &ref_uiCounter)

template<typename Handle , typename Resource , typename Table , typename CacheTable >
Handle	InsertHashedResource (ezUInt32 uiHash, Resource *pResource, Table &table, CacheTable &cacheTable, ezUInt32 &ref_uiCounter)

template<typename Resource , typename Handle , typename Table >
void	DestroyHashedResource (Handle hResource, Table &table, ezUInt32 galObjectType, ezUInt32 &ref_uiCounter)

Protected Attributes
ezProxyAllocator	m_Allocator

ezLocalAllocatorWrapper	m_AllocatorWrapper

ShaderTable	m_Shaders

VertexDeclarationTable	m_VertexDeclarations

BlendStateTable	m_BlendStates

DepthStencilStateTable	m_DepthStencilStates

RasterizerStateTable	m_RasterizerStates

SamplerStateTable	m_SamplerStates

BindGroupLayoutTable	m_BindGroupLayouts

PipelineLayoutTable	m_PipelineLayouts

GraphicsPipelineTable	m_GraphicsPipelines

ComputePipelineTable	m_ComputePipelines

BufferTable	m_Buffers

DynamicBufferTable	m_DynamicBuffers

TextureTable	m_Textures

ReadbackBufferTable	m_ReadbackBuffers

ReadbackTextureTable	m_ReadbackTextures

RenderTargetViewTable	m_RenderTargetViews

SwapChainTable	m_SwapChains

ezHashTable< ezUInt32, ezGALShaderHandle, ezHashHelper< ezUInt32 >, ezLocalAllocatorWrapper >	m_ShaderTable

ezHashTable< ezUInt32, ezGALVertexDeclarationHandle, ezHashHelper< ezUInt32 >, ezLocalAllocatorWrapper >	m_VertexDeclarationTable

ezHashTable< ezUInt32, ezGALBlendStateHandle, ezHashHelper< ezUInt32 >, ezLocalAllocatorWrapper >	m_BlendStateTable

ezHashTable< ezUInt32, ezGALDepthStencilStateHandle, ezHashHelper< ezUInt32 >, ezLocalAllocatorWrapper >	m_DepthStencilStateTable

ezHashTable< ezUInt32, ezGALRasterizerStateHandle, ezHashHelper< ezUInt32 >, ezLocalAllocatorWrapper >	m_RasterizerStateTable

ezHashTable< ezUInt32, ezGALSamplerStateHandle, ezHashHelper< ezUInt32 >, ezLocalAllocatorWrapper >	m_SamplerStateTable

ezHashTable< ezUInt32, ezGALBindGroupLayoutHandle, ezHashHelper< ezUInt32 >, ezLocalAllocatorWrapper >	m_BindGroupLayoutTable

ezHashTable< ezUInt32, ezGALPipelineLayoutHandle, ezHashHelper< ezUInt32 >, ezLocalAllocatorWrapper >	m_PipelineLayoutTable

ezHashTable< ezUInt32, ezGALGraphicsPipelineHandle, ezHashHelper< ezUInt32 >, ezLocalAllocatorWrapper >	m_GraphicsPipelineTable

ezHashTable< ezUInt32, ezGALComputePipelineHandle, ezHashHelper< ezUInt32 >, ezLocalAllocatorWrapper >	m_ComputePipelineTable

ezDynamicArray< DeadObject, ezLocalAllocatorWrapper >	m_DeadObjects

ezGALDeviceCreationDescription	m_Description

ezGALDeviceCapabilities	m_Capabilities

Detailed Description

The ezRenderDevice class is the primary interface for interactions with rendering APIs It contains a set of (non-virtual) functions to set state, create resources etc. which rely on API specific implementations provided by protected virtual functions. Redundant state changes are prevented at the platform independent level in the non-virtual functions.

Member Function Documentation

◆ BeginFrame()

void ezGALDevice::BeginFrame ( const ezUInt64 uiAppFrame = 0 )

Begins rendering of a frame. This needs to be called first before any rendering function can be called.

Parameters

uiAppFrame Frame index for debugging purposes, has no effect on GetCurrentFrame.

◆ CreateBuffer()

ezGALBufferHandle ezGALDevice::CreateBuffer	(	const ezGALBufferCreationDescription &	description,
		ezArrayPtr< const ezUInt8 >	initialData = `ezArrayPtr<const ezUInt8>()`
	)

Todo:: Platform independent validation (buffer type supported)

◆ CreateSharedTexture()

ezGALTextureHandle ezGALDevice::CreateSharedTexture	(	const ezGALTextureCreationDescription &	description,
		ezArrayPtr< ezGALSystemMemoryDescription >	initialData = `{}`
	)

Todo:: Platform independent validation (desc width & height < platform maximum, format, etc.)

◆ CreateTexture()

ezGALTextureHandle ezGALDevice::CreateTexture	(	const ezGALTextureCreationDescription &	description,
		ezArrayPtr< ezGALSystemMemoryDescription >	initialData = `ezArrayPtr<ezGALSystemMemoryDescription>()`
	)

Todo:: Platform independent validation (desc width & height < platform maximum, format, etc.)

◆ CreateVertexDeclaration()

ezGALVertexDeclarationHandle ezGALDevice::CreateVertexDeclaration ( const ezGALVertexDeclarationCreationDescription & description )

Todo:: Platform independent validation

◆ EndCommands()

void ezGALDevice::EndCommands ( ezGALCommandEncoder * pCommandEncoder )

Stop recording commands on the command encoder.

Parameters

pCommandEncoder Must match the command encoder returned by BeginCommands.

◆ EnqueueFrameSwapChain()

void ezGALDevice::EnqueueFrameSwapChain ( ezGALSwapChainHandle hSwapChain )

Adds a swap-chain to be used for the next frame. Must be called before or during the ezGALDeviceEvent::BeforeBeginFrame event (BeginFrame function) and repeated for every frame the swap-chain is to be used. This approach guarantees that all swap-chains of a frame acquire and present at the same time, which improves frame pacing.

Parameters

hSwapChain Swap-chain used in this frame. The device will ensure to acquire an image from the swap-chain during BeginFrame and present it when calling EndFrame.

◆ GetCurrentFrame()

EZ_ALWAYS_INLINE ezUInt64 ezGALDevice::GetCurrentFrame ( ) const

The current rendering frame. This is a monotonically increasing number which changes +1 every time EndFrame is called. You can use this to synchronize read/writes between CPU and GPU, see GetSafeFrame.

See also: GetSafeFrame

◆ GetFenceResult()

ezEnum< ezGALAsyncResult > ezGALDevice::GetFenceResult	(	ezGALFenceHandle	hFence,
		ezTime	timeout = `ezTime::MakeZero()`
	)

Queries the result of a fence. Fences can never expire as they are just monotonically increasing numbers over time.

Parameters

hFence	The fence handle to query.
timeout	If set to > 0, the function will block until the fence is ready or the timeout is reached.

Returns: Returns either Ready or Pending.

See also: ezCommandEncoder::InsertFence

◆ GetOcclusionQueryResult()

EZ_ALWAYS_INLINE ezEnum< ezGALAsyncResult > ezGALDevice::GetOcclusionQueryResult	(	ezGALOcclusionHandle	hOcclusion,
		ezUInt64 &	out_uiResult
	)

Queries the result of an occlusion query. Should be called every frame until ezGALAsyncResult::Ready is returned.

Parameters

hOcclusion	The occlusion query handle to query.
out_uiResult	If ezGALAsyncResult::Ready is returned, this will be the number of pixels of the occlusion query.

Returns: If ezGALAsyncResult::Expired is returned, the result was in a ready state for more than 4 frames and was thus deleted.

See also: ezCommandEncoder::BeginOcclusionQuery, ezCommandEncoder::EndOcclusionQuery

◆ GetSafeFrame()

EZ_ALWAYS_INLINE ezUInt64 ezGALDevice::GetSafeFrame ( ) const

The latest frame that has been fully executed on the GPU. Whenever you execute any work that requires synchronization between CPU and GPU, remember the GetCurrentFrame result in which the operation was done. When GetSafeFrame reaches this number, you know for sure that the GPU has completed all operations of that frame.

See also: GetCurrentFrame

◆ GetTimestampResult()

EZ_ALWAYS_INLINE ezEnum< ezGALAsyncResult > ezGALDevice::GetTimestampResult	(	ezGALTimestampHandle	hTimestamp,
		ezTime &	out_result
	)

Queries the result of a timestamp. Should be called every frame until ezGALAsyncResult::Ready is returned.

Parameters

hTimestamp	The timestamp handle to query.
out_result	If ezGALAsyncResult::Ready is returned, this will be the timestamp at which this handle was inserted into the command encoder.

Returns: If ezGALAsyncResult::Expired is returned, the result was in a ready state for more than 4 frames and was thus deleted.

See also: ezCommandEncoder::InsertTimestamp

◆ LockBuffer()

ezReadbackBufferLock ezGALDevice::LockBuffer	(	ezGALReadbackBufferHandle	hReadbackBuffer,
		ezArrayPtr< const ezUInt8 > &	out_memory
	)

Tries to lock a readback buffer for reading. Only fails if the handle is invalid.

Parameters

hReadbackBuffer	The buffer to lock.
out_memory	If successful, contains the memory of the buffer. Only allowed to be accessed within the lifetime of the returns lock object.

Returns: Returns the lock. ezReadbackBufferLock::IsValid needs to be called to ensure the locking was successful.

◆ LockTexture()

ezReadbackTextureLock ezGALDevice::LockTexture	(	ezGALReadbackTextureHandle	hReadbackTexture,
		const ezArrayPtr< const ezGALTextureSubresource > &	subResources,
		ezDynamicArray< ezGALSystemMemoryDescription > &	out_memory
	)

Tries to lock a readback texture for reading. Only fails if the handle is invalid.

Parameters

hReadbackTexture	The texture to lock.
subResources	The sub-resources that should to be locked.
out_memory	If successful, contains the memory locations of each sub-resource. Only allowed to be accessed within the lifetime of the returns lock object.

Returns: Returns the lock. ezReadbackTextureLock::IsValid needs to be called to ensure the locking was successful.

The documentation for this class was generated from the following files:

/home/runner/work/ezEngine/ezEngine/Code/Engine/RendererFoundation/Device/Device.h
/home/runner/work/ezEngine/ezEngine/Code/Engine/RendererFoundation/Device/Implementation/Device.cpp
/home/runner/work/ezEngine/ezEngine/Code/Engine/RendererFoundation/Device/Implementation/Device_inl.h

Classes

Public Types

Public Member Functions

Static Public Member Functions

Public Attributes

Static Public Attributes

Protected Types

Protected Member Functions

Protected Attributes

Detailed Description

Member Function Documentation

◆ BeginFrame()

◆ CreateBuffer()

◆ CreateSharedTexture()

◆ CreateTexture()

◆ CreateVertexDeclaration()

◆ EndCommands()

◆ EnqueueFrameSwapChain()

◆ GetCurrentFrame()

◆ GetFenceResult()

◆ GetOcclusionQueryResult()

◆ GetSafeFrame()

◆ GetTimestampResult()

◆ LockBuffer()

◆ LockTexture()
