#include <LSAOPass.h>

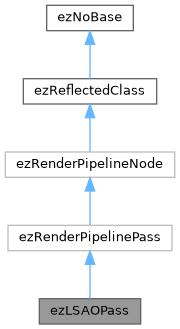

Inheritance diagram for ezLSAOPass:

[legend]

Public Member Functions
virtual bool	GetRenderTargetDescriptions (const ezView &view, const ezArrayPtr< ezGALTextureCreationDescription *const > inputs, ezArrayPtr< ezGALTextureCreationDescription > outputs) override
	For a given input pin configuration, provide the output configuration of this node. Outputs is already resized to the number of output pins.

virtual void	InitRenderPipelinePass (const ezArrayPtr< ezRenderPipelinePassConnection const > inputs, const ezArrayPtr< ezRenderPipelinePassConnection const > outputs) override
	After GetRenderTargetDescriptions was called successfully for each pass, this function is called with the inputs and outputs for review. Disconnected pins have a nullptr value in the passed in arrays. This is the time to create additional resources that are not covered by the pins automatically, e.g. a picking texture or eye adaptation buffer.

virtual void	Execute (const ezRenderViewContext &renderViewContext, const ezArrayPtr< ezRenderPipelinePassConnection const > inputs, const ezArrayPtr< ezRenderPipelinePassConnection const > outputs) override
	Render into outputs. Both inputs and outputs are passed in with actual texture handles. Disconnected pins have a nullptr value in the passed in arrays. You can now create views and render target setups on the fly and fill the output targets with data.

virtual void	ExecuteInactive (const ezRenderViewContext &renderViewContext, const ezArrayPtr< ezRenderPipelinePassConnection const > inputs, const ezArrayPtr< ezRenderPipelinePassConnection const > outputs) override

virtual ezResult	Serialize (ezStreamWriter &inout_stream) const override

virtual ezResult	Deserialize (ezStreamReader &inout_stream) override

ezUInt32	GetLineToLinePixelOffset () const

void	SetLineToLinePixelOffset (ezUInt32 uiPixelOffset)

ezUInt32	GetLineSamplePixelOffset () const

void	SetLineSamplePixelOffset (ezUInt32 uiPixelOffset)

float	GetDepthCutoffDistance () const

void	SetDepthCutoffDistance (float fDepthCutoffDistance)

float	GetOcclusionFalloff () const

void	SetOcclusionFalloff (float fFalloff)

Public Member Functions inherited from ezRenderPipelinePass
	ezRenderPipelinePass (const char *szName, bool bIsStereoAware=false)

void	SetName (const char *szName)
	Sets the name of the pass.

const char *	GetName () const
	returns the name of the pass.

bool	IsStereoAware () const
	True if the render pipeline pass can handle stereo cameras correctly.

virtual ezGALTextureHandle	QueryTextureProvider (const ezRenderPipelineNodePin *pPin, const ezGALTextureCreationDescription &desc)

virtual void	ReadBackProperties (ezView *pView)
	Allows for the pass to write data back using ezView::SetRenderPassReadBackProperty. E.g. picking results etc.

void	RenderDataWithCategory (const ezRenderViewContext &renderViewContext, ezRenderData::Category category)

EZ_ALWAYS_INLINE ezRenderPipeline *	GetPipeline ()

EZ_ALWAYS_INLINE const ezRenderPipeline *	GetPipeline () const

Public Member Functions inherited from ezRenderPipelineNode
void	InitializePins ()

ezHashedString	GetPinName (const ezRenderPipelineNodePin *pPin) const

const ezRenderPipelineNodePin *	GetPinByName (const char *szName) const

const ezRenderPipelineNodePin *	GetPinByName (ezHashedString sName) const

const ezArrayPtr< const ezRenderPipelineNodePin *const >	GetInputPins () const

const ezArrayPtr< const ezRenderPipelineNodePin *const >	GetOutputPins () const

Public Member Functions inherited from ezReflectedClass
virtual const ezRTTI *	GetDynamicRTTI () const

bool	IsInstanceOf (const ezRTTI *pType) const
	Returns whether the type of this instance is of the given type or derived from it.

template<typename T >
EZ_ALWAYS_INLINE bool	IsInstanceOf () const
	Returns whether the type of this instance is of the given type or derived from it.

Protected Member Functions
void	DestroyLineSweepData ()
	Destroys all GPU data that might have been created in in SetupLineSweepData.

void	SetupLineSweepData (const ezVec3I32 &imageResolution)

void	AddLinesForDirection (const ezVec3I32 &imageResolution, const ezVec2I32 &sampleDir, ezUInt32 lineIndex, ezDynamicArray< LineInstruction > &outinLineInstructions, ezUInt32 &outinTotalNumberOfSamples)

Protected Attributes
ezRenderPipelineNodeInputPin	m_PinDepthInput

ezRenderPipelineNodeOutputPin	m_PinOutput

ezConstantBufferStorageHandle	m_hLineSweepCB

bool	m_bSweepDataDirty = true

bool	m_bConstantsDirty = true

ezGALBufferHandle	m_hLineSweepOutputBuffer
	Output of the line sweep pass.

ezGALBufferRange	m_LineSweepOutputBufferRange

ezGALBufferHandle	m_hLineInfoBuffer
	Structured buffer containing instructions for every single line to trace.

ezUInt32	m_uiNumSweepLines = 0
	Total number of lines to be traced.

ezInt32	m_iLineToLinePixelOffset = 2

ezInt32	m_iLineSamplePixelOffsetFactor = 1

float	m_fOcclusionFalloff = 0.2f

float	m_fDepthCutoffDistance = 4.0f

ezEnum< ezLSAODepthCompareFunction >	m_DepthCompareFunction

bool	m_bDistributedGathering = true

ezShaderResourceHandle	m_hShaderLineSweep

ezShaderResourceHandle	m_hShaderGather

ezShaderResourceHandle	m_hShaderAverage

Additional Inherited Members
Static Public Member Functions inherited from ezNoBase
static const ezRTTI *	GetStaticRTTI ()

Detailed Description

Screen space ambient occlusion using "line sweep ambient occlusion" by Ville Timonen

Resources: Use in Quantum Break: http://wili.cc/research/quantum_break/SIGGRAPH_2015_Remedy_Notes.pdf Presentation slides EGSR: http://wili.cc/research/lsao/EGSR13_LSAO.pdf Paper: http://wili.cc/research/lsao/lsao.pdf

There are a few adjustments and own ideas worked into this implementation. The biggest change probably is that pixels in the gather pass compute their target linesample arithmetically instead of relying on lookups.

Member Function Documentation

◆ Deserialize()

ezResult ezLSAOPass::Deserialize ( ezStreamReader & inout_stream )

overridevirtual

Reimplemented from ezRenderPipelinePass.

◆ Execute()

void ezLSAOPass::Execute	(	const ezRenderViewContext &	renderViewContext,
		const ezArrayPtr< ezRenderPipelinePassConnection *const >	inputs,
		const ezArrayPtr< ezRenderPipelinePassConnection *const >	outputs
	)

overridevirtual

Render into outputs. Both inputs and outputs are passed in with actual texture handles. Disconnected pins have a nullptr value in the passed in arrays. You can now create views and render target setups on the fly and fill the output targets with data.

Implements ezRenderPipelinePass.

◆ ExecuteInactive()

void ezLSAOPass::ExecuteInactive	(	const ezRenderViewContext &	renderViewContext,
		const ezArrayPtr< ezRenderPipelinePassConnection *const >	inputs,
		const ezArrayPtr< ezRenderPipelinePassConnection *const >	outputs
	)

overridevirtual

Reimplemented from ezRenderPipelinePass.

◆ GetRenderTargetDescriptions()

bool ezLSAOPass::GetRenderTargetDescriptions	(	const ezView &	view,
		const ezArrayPtr< ezGALTextureCreationDescription *const >	inputs,
		ezArrayPtr< ezGALTextureCreationDescription >	outputs
	)

overridevirtual

For a given input pin configuration, provide the output configuration of this node. Outputs is already resized to the number of output pins.

Implements ezRenderPipelinePass.

◆ InitRenderPipelinePass()

void ezLSAOPass::InitRenderPipelinePass	(	const ezArrayPtr< ezRenderPipelinePassConnection *const >	inputs,
		const ezArrayPtr< ezRenderPipelinePassConnection *const >	outputs
	)

overridevirtual

After GetRenderTargetDescriptions was called successfully for each pass, this function is called with the inputs and outputs for review. Disconnected pins have a nullptr value in the passed in arrays. This is the time to create additional resources that are not covered by the pins automatically, e.g. a picking texture or eye adaptation buffer.

Reimplemented from ezRenderPipelinePass.

◆ Serialize()

ezResult ezLSAOPass::Serialize ( ezStreamWriter & inout_stream ) const

overridevirtual

Reimplemented from ezRenderPipelinePass.

The documentation for this class was generated from the following files:

/home/runner/work/ezEngine/ezEngine/Code/Engine/RendererCore/Pipeline/Passes/LSAOPass.h
/home/runner/work/ezEngine/ezEngine/Code/Engine/RendererCore/Pipeline/Implementation/Passes/LSAOPass.cpp
