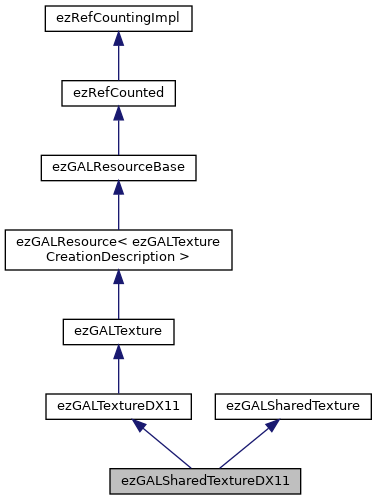

Inheritance diagram for ezGALSharedTextureDX11:

[legend]

Protected Member Functions
	ezGALSharedTextureDX11 (const ezGALTextureCreationDescription &Description, ezEnum< ezGALSharedTextureType > sharedType, ezGALPlatformSharedHandle hSharedHandle)

virtual ezResult	InitPlatform (ezGALDevice *pDevice, ezArrayPtr< ezGALSystemMemoryDescription > pInitialData) override

virtual ezResult	DeInitPlatform (ezGALDevice *pDevice) override

virtual ezGALPlatformSharedHandle	GetSharedHandle () const override
	Returns the handle that can be used to open this texture on another device / process. Call ezGALDevice::OpenSharedTexture to do so.

virtual void	WaitSemaphoreGPU (ezUInt64 uiValue) const override
	Before the current render pipeline is executed, the GPU will wait for the semaphore to have the given value. More...

virtual void	SignalSemaphoreGPU (ezUInt64 uiValue) const override
	Once the current render pipeline is done on the GPU, the semaphore will be signaled with the given value. More...

Protected Member Functions inherited from ezGALTextureDX11
	ezGALTextureDX11 (const ezGALTextureCreationDescription &Description)

virtual void	SetDebugNamePlatform (const char *szName) const override

ezResult	InitFromNativeObject (ezGALDeviceDX11 *pDXDevice)

Protected Member Functions inherited from ezGALTexture
	ezGALTexture (const ezGALTextureCreationDescription &Description)

Protected Attributes
ezEnum< ezGALSharedTextureType >	m_SharedType = ezGALSharedTextureType::None

ezGALPlatformSharedHandle	m_hSharedHandle

IDXGIKeyedMutex *	m_pKeyedMutex = nullptr

Protected Attributes inherited from ezGALTextureDX11
ID3D11Resource *	m_pDXTexture = nullptr

Protected Attributes inherited from ezGALTexture
ezGALTextureResourceViewHandle	m_hDefaultResourceView

ezGALRenderTargetViewHandle	m_hDefaultRenderTargetView

ezHashTable< ezUInt32, ezGALTextureResourceViewHandle >	m_ResourceViews

ezHashTable< ezUInt32, ezGALRenderTargetViewHandle >	m_RenderTargetViews

ezHashTable< ezUInt32, ezGALTextureUnorderedAccessViewHandle >	m_UnorderedAccessViews

Protected Attributes inherited from ezGALResource< ezGALTextureCreationDescription >
const ezGALTextureCreationDescription	m_Description

Friends
class	ezGALDeviceDX11

class	ezMemoryUtils

Additional Inherited Members
Public Member Functions inherited from ezGALTextureDX11
EZ_ALWAYS_INLINE ID3D11Resource *	GetDXTexture () const

Public Member Functions inherited from ezGALResource< ezGALTextureCreationDescription >
EZ_ALWAYS_INLINE	ezGALResource (const ezGALTextureCreationDescription &description)

const EZ_ALWAYS_INLINE ezGALTextureCreationDescription &	GetDescription () const

Public Member Functions inherited from ezGALResourceBase
void	SetDebugName (const char *szName) const

virtual const ezGALResourceBase *	GetParentResource () const

Public Member Functions inherited from ezRefCounted
virtual	~ezRefCounted ()=default
	Adds a virtual destructor.

Public Member Functions inherited from ezRefCountingImpl
	ezRefCountingImpl ()=default
	Constructor.

	ezRefCountingImpl (const ezRefCountingImpl &rhs)

void	operator= (const ezRefCountingImpl &rhs)

ezInt32	AddRef () const
	Increments the reference counter. Returns the new reference count.

ezInt32	ReleaseRef () const
	Decrements the reference counter. Returns the new reference count.

bool	IsReferenced () const
	Returns true if the reference count is greater than 0, false otherwise.

ezInt32	GetRefCount () const
	Returns the current reference count.

Static Public Member Functions inherited from ezGALTextureDX11
static ezResult	Create2DDesc (const ezGALTextureCreationDescription &description, ezGALDeviceDX11 *pDXDevice, D3D11_TEXTURE2D_DESC &out_tex2DDesc)

static ezResult	Create3DDesc (const ezGALTextureCreationDescription &description, ezGALDeviceDX11 *pDXDevice, D3D11_TEXTURE3D_DESC &out_tex3DDesc)

static void	ConvertInitialData (const ezGALTextureCreationDescription &description, ezArrayPtr< ezGALSystemMemoryDescription > initialData, ezHybridArray< D3D11_SUBRESOURCE_DATA, 16 > &out_initialData)

Member Function Documentation

◆ SignalSemaphoreGPU()

void ezGALSharedTextureDX11::SignalSemaphoreGPU ( ezUInt64 uiValue ) const

overrideprotectedvirtual

Once the current render pipeline is done on the GPU, the semaphore will be signaled with the given value.

Parameters

iValue Value the semaphore is set to once we are done using the texture (after the current render pipeline).

Implements ezGALSharedTexture.

◆ WaitSemaphoreGPU()

void ezGALSharedTextureDX11::WaitSemaphoreGPU ( ezUInt64 uiValue ) const

overrideprotectedvirtual

Before the current render pipeline is executed, the GPU will wait for the semaphore to have the given value.

Parameters

iValue Value the semaphore needs to have before the texture can be used.

Implements ezGALSharedTexture.

The documentation for this class was generated from the following files:

/home/runner/work/ezEngine/ezEngine/Code/Engine/RendererDX11/Resources/SharedTextureDX11.h
/home/runner/work/ezEngine/ezEngine/Code/Engine/RendererDX11/Resources/Implementation/SharedTextureDX11.cpp
