#include <OpaqueForwardRenderPass.h>

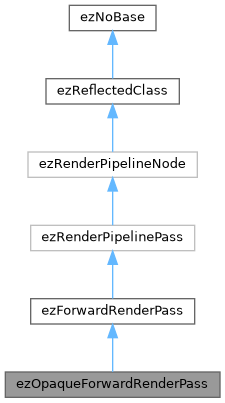

Inheritance diagram for ezOpaqueForwardRenderPass:

[legend]

Public Member Functions
	ezOpaqueForwardRenderPass (const char *szName="OpaqueForwardRenderPass")

virtual bool	GetRenderTargetDescriptions (const ezView &view, const ezArrayPtr< ezGALTextureCreationDescription *const > inputs, ezArrayPtr< ezGALTextureCreationDescription > outputs) override
	For a given input pin configuration, provide the output configuration of this node. Outputs is already resized to the number of output pins.

Public Member Functions inherited from ezForwardRenderPass
	ezForwardRenderPass (const char *szName="ForwardRenderPass")

virtual void	Execute (const ezRenderViewContext &renderViewContext, const ezArrayPtr< ezRenderPipelinePassConnection const > inputs, const ezArrayPtr< ezRenderPipelinePassConnection const > outputs) override
	Render into outputs. Both inputs and outputs are passed in with actual texture handles. Disconnected pins have a nullptr value in the passed in arrays. You can now create views and render target setups on the fly and fill the output targets with data.

virtual ezResult	Serialize (ezStreamWriter &inout_stream) const override

virtual ezResult	Deserialize (ezStreamReader &inout_stream) override

Public Member Functions inherited from ezRenderPipelinePass
	ezRenderPipelinePass (const char *szName, bool bIsStereoAware=false)

void	SetName (const char *szName)
	Sets the name of the pass.

const char *	GetName () const
	returns the name of the pass.

bool	IsStereoAware () const
	True if the render pipeline pass can handle stereo cameras correctly.

virtual ezGALTextureHandle	QueryTextureProvider (const ezRenderPipelineNodePin *pPin, const ezGALTextureCreationDescription &desc)

virtual void	InitRenderPipelinePass (const ezArrayPtr< ezRenderPipelinePassConnection const > inputs, const ezArrayPtr< ezRenderPipelinePassConnection const > outputs)
	After GetRenderTargetDescriptions was called successfully for each pass, this function is called with the inputs and outputs for review. Disconnected pins have a nullptr value in the passed in arrays. This is the time to create additional resources that are not covered by the pins automatically, e.g. a picking texture or eye adaptation buffer.

virtual void	ExecuteInactive (const ezRenderViewContext &renderViewContext, const ezArrayPtr< ezRenderPipelinePassConnection const > inputs, const ezArrayPtr< ezRenderPipelinePassConnection const > outputs)

virtual void	ReadBackProperties (ezView *pView)
	Allows for the pass to write data back using ezView::SetRenderPassReadBackProperty. E.g. picking results etc.

void	RenderDataWithCategory (const ezRenderViewContext &renderViewContext, ezRenderData::Category category)

EZ_ALWAYS_INLINE ezRenderPipeline *	GetPipeline ()

EZ_ALWAYS_INLINE const ezRenderPipeline *	GetPipeline () const

Public Member Functions inherited from ezRenderPipelineNode
void	InitializePins ()

ezHashedString	GetPinName (const ezRenderPipelineNodePin *pPin) const

const ezRenderPipelineNodePin *	GetPinByName (const char *szName) const

const ezRenderPipelineNodePin *	GetPinByName (ezHashedString sName) const

const ezArrayPtr< const ezRenderPipelineNodePin *const >	GetInputPins () const

const ezArrayPtr< const ezRenderPipelineNodePin *const >	GetOutputPins () const

Public Member Functions inherited from ezReflectedClass
virtual const ezRTTI *	GetDynamicRTTI () const

bool	IsInstanceOf (const ezRTTI *pType) const
	Returns whether the type of this instance is of the given type or derived from it.

template<typename T >
EZ_ALWAYS_INLINE bool	IsInstanceOf () const
	Returns whether the type of this instance is of the given type or derived from it.

Protected Member Functions
virtual void	SetupResources (ezGALCommandEncoder pCommandEncoder, const ezRenderViewContext &renderViewContext, const ezArrayPtr< ezRenderPipelinePassConnection const > inputs, const ezArrayPtr< ezRenderPipelinePassConnection *const > outputs) override
	Binds input textures and sets up shader resources.

virtual void	SetupPermutationVars (const ezRenderViewContext &renderViewContext) override
	Configures shader permutation variables based on render settings.

virtual void	RenderObjects (const ezRenderViewContext &renderViewContext) override
	Renders the objects for this pass. Must be implemented by derived classes.

Protected Member Functions inherited from ezForwardRenderPass
virtual void	SetupLighting (const ezRenderViewContext &renderViewContext)
	Binds lighting data for the current view.

Protected Attributes
ezRenderPipelineNodeInputPin	m_PinSSAO
	Optional SSAO input for ambient occlusion.

bool	m_bWriteDepth = true
	Whether to write to the depth buffer.

ezTexture2DResourceHandle	m_hWhiteTexture
	Fallback white texture for unbound inputs.

Protected Attributes inherited from ezForwardRenderPass
ezRenderPipelineNodePassThroughPin	m_PinColor
	Color target for rendering.

ezRenderPipelineNodePassThroughPin	m_PinDepthStencil
	Depth-stencil target.

ezEnum< ezForwardRenderShadingQuality >	m_ShadingQuality
	Quality level for shading calculations.

Additional Inherited Members
Static Public Member Functions inherited from ezNoBase
static const ezRTTI *	GetStaticRTTI ()

Detailed Description

Forward render pass that renders opaque objects.

Renders all opaque geometry with full lighting and shading. Optionally accepts an ambient occlusion input for enhanced shading.

Member Function Documentation

◆ GetRenderTargetDescriptions()

bool ezOpaqueForwardRenderPass::GetRenderTargetDescriptions	(	const ezView &	view,
		const ezArrayPtr< ezGALTextureCreationDescription *const >	inputs,
		ezArrayPtr< ezGALTextureCreationDescription >	outputs
	)

overridevirtual

For a given input pin configuration, provide the output configuration of this node. Outputs is already resized to the number of output pins.

Reimplemented from ezForwardRenderPass.

◆ RenderObjects()

void ezOpaqueForwardRenderPass::RenderObjects ( const ezRenderViewContext & renderViewContext )

overrideprotectedvirtual

Renders the objects for this pass. Must be implemented by derived classes.

Implements ezForwardRenderPass.

◆ SetupPermutationVars()

void ezOpaqueForwardRenderPass::SetupPermutationVars ( const ezRenderViewContext & renderViewContext )

overrideprotectedvirtual

Configures shader permutation variables based on render settings.

Reimplemented from ezForwardRenderPass.

◆ SetupResources()

void ezOpaqueForwardRenderPass::SetupResources	(	ezGALCommandEncoder *	pCommandEncoder,
		const ezRenderViewContext &	renderViewContext,
		const ezArrayPtr< ezRenderPipelinePassConnection *const >	inputs,
		const ezArrayPtr< ezRenderPipelinePassConnection *const >	outputs
	)

overrideprotectedvirtual

Binds input textures and sets up shader resources.

Reimplemented from ezForwardRenderPass.

The documentation for this class was generated from the following files:

/home/runner/work/ezEngine/ezEngine/Code/Engine/RendererCore/Pipeline/Passes/OpaqueForwardRenderPass.h
/home/runner/work/ezEngine/ezEngine/Code/Engine/RendererCore/Pipeline/Implementation/Passes/OpaqueForwardRenderPass.cpp
