ezMsaaResolvePass Class Reference

#include <MsaaResolvePass.h>

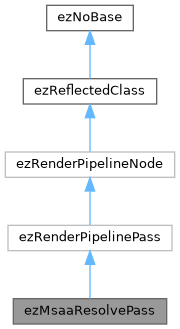

Inheritance diagram for ezMsaaResolvePass:
Inheritance graph
[legend]

Public Member Functions

virtual bool GetRenderTargetDescriptions (const ezView &view, const ezArrayPtr< ezGALTextureCreationDescription *const > inputs, ezArrayPtr< ezGALTextureCreationDescription > outputs) override
 For a given input pin configuration, provide the output configuration of this node. Outputs is already resized to the number of output pins.

virtual void Execute (const ezRenderViewContext &renderViewContext, const ezArrayPtr< ezRenderPipelinePassConnection *const > inputs, const ezArrayPtr< ezRenderPipelinePassConnection *const > outputs) override
 Render into outputs. Both inputs and outputs are passed in with actual texture handles. Disconnected pins have a nullptr value in the passed in arrays. You can now create views and render target setups on the fly and fill the output targets with data.

- Public Member Functions inherited from ezRenderPipelinePass
 ezRenderPipelinePass (const char *szName, bool bIsStereoAware=false)

void SetName (const char *szName)
 Sets the name of the pass.

const char * GetName () const
 returns the name of the pass.

bool IsStereoAware () const
 True if the render pipeline pass can handle stereo cameras correctly.

virtual ezGALTextureHandle QueryTextureProvider (const ezRenderPipelineNodePin *pPin, const ezGALTextureCreationDescription &desc)

virtual void InitRenderPipelinePass (const ezArrayPtr< ezRenderPipelinePassConnection *const > inputs, const ezArrayPtr< ezRenderPipelinePassConnection *const > outputs)
 After GetRenderTargetDescriptions was called successfully for each pass, this function is called with the inputs and outputs for review. Disconnected pins have a nullptr value in the passed in arrays. This is the time to create additional resources that are not covered by the pins automatically, e.g. a picking texture or eye adaptation buffer.

virtual void ExecuteInactive (const ezRenderViewContext &renderViewContext, const ezArrayPtr< ezRenderPipelinePassConnection *const > inputs, const ezArrayPtr< ezRenderPipelinePassConnection *const > outputs)

virtual void ReadBackProperties (ezView *pView)
 Allows for the pass to write data back using ezView::SetRenderPassReadBackProperty. E.g. picking results etc.

virtual ezResult Serialize (ezStreamWriter &inout_stream) const

virtual ezResult Deserialize (ezStreamReader &inout_stream)

void RenderDataWithCategory (const ezRenderViewContext &renderViewContext, ezRenderData::Category category)

EZ_ALWAYS_INLINE ezRenderPipeline * GetPipeline ()

EZ_ALWAYS_INLINE const ezRenderPipeline * GetPipeline () const

- Public Member Functions inherited from ezRenderPipelineNode
void InitializePins ()

ezHashedString GetPinName (const ezRenderPipelineNodePin *pPin) const

const ezRenderPipelineNodePin * GetPinByName (const char *szName) const

const ezRenderPipelineNodePin * GetPinByName (ezHashedString sName) const

const ezArrayPtr< const ezRenderPipelineNodePin *const > GetInputPins () const

const ezArrayPtr< const ezRenderPipelineNodePin *const > GetOutputPins () const

- Public Member Functions inherited from ezReflectedClass
virtual const ezRTTI * GetDynamicRTTI () const

bool IsInstanceOf (const ezRTTI *pType) const
 Returns whether the type of this instance is of the given type or derived from it.

template<typename T >
EZ_ALWAYS_INLINE bool IsInstanceOf () const
 Returns whether the type of this instance is of the given type or derived from it.


Protected Attributes

ezRenderPipelineNodeInputPin m_PinInput

ezRenderPipelineNodeOutputPin m_PinOutput

bool m_bIsDepth = false

ezGALMSAASampleCount::Enum m_MsaaSampleCount = ezGALMSAASampleCount::None

ezShaderResourceHandle m_hDepthResolveShader


Additional Inherited Members

- Static Public Member Functions inherited from ezNoBase
static const ezRTTI * GetStaticRTTI ()


Detailed Description

Render pass that resolves a multi-sampled texture to a non-multi-sampled texture.

Converts MSAA render targets to regular textures by averaging the samples. Supports both color and depth textures. Required when using MSAA rendering with post-processing effects that cannot operate on multi-sampled textures.

Member Function Documentation

◆ Execute()

void ezMsaaResolvePass::Execute ( const ezRenderViewContext &  renderViewContext,
const ezArrayPtr< ezRenderPipelinePassConnection *const >  inputs,
const ezArrayPtr< ezRenderPipelinePassConnection *const >  outputs
)
overridevirtual

Render into outputs. Both inputs and outputs are passed in with actual texture handles. Disconnected pins have a nullptr value in the passed in arrays. You can now create views and render target setups on the fly and fill the output targets with data.

Implements ezRenderPipelinePass.

◆ GetRenderTargetDescriptions()

bool ezMsaaResolvePass::GetRenderTargetDescriptions ( const ezView &  view,
const ezArrayPtr< ezGALTextureCreationDescription *const >  inputs,
ezArrayPtr< ezGALTextureCreationDescription >  outputs
)
overridevirtual

For a given input pin configuration, provide the output configuration of this node. Outputs is already resized to the number of output pins.

Implements ezRenderPipelinePass.

The documentation for this class was generated from the following files:
