ezSimpleRenderPass Class Reference

A very basic render pass that renders into the color target. More...

#include <SimpleRenderPass.h>

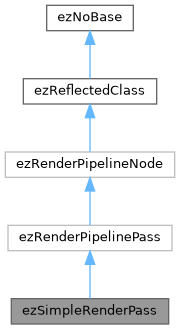

Inheritance diagram for ezSimpleRenderPass:
Inheritance graph
[legend]

Public Member Functions

 ezSimpleRenderPass (const char *szName="SimpleRenderPass")

virtual bool GetRenderTargetDescriptions (const ezView &view, const ezArrayPtr< ezGALTextureCreationDescription *const > inputs, ezArrayPtr< ezGALTextureCreationDescription > outputs) override
 For a given input pin configuration, provide the output configuration of this node. Outputs is already resized to the number of output pins.

virtual void Execute (const ezRenderViewContext &renderViewContext, const ezArrayPtr< ezRenderPipelinePassConnection *const > inputs, const ezArrayPtr< ezRenderPipelinePassConnection *const > outputs) override
 Render into outputs. Both inputs and outputs are passed in with actual texture handles. Disconnected pins have a nullptr value in the passed in arrays. You can now create views and render target setups on the fly and fill the output targets with data.

virtual ezResult Serialize (ezStreamWriter &inout_stream) const override

virtual ezResult Deserialize (ezStreamReader &inout_stream) override

void SetMessage (const char *szMessage)

- Public Member Functions inherited from ezRenderPipelinePass
 ezRenderPipelinePass (const char *szName, bool bIsStereoAware=false)

void SetName (const char *szName)
 Sets the name of the pass.

const char * GetName () const
 returns the name of the pass.

bool IsStereoAware () const
 True if the render pipeline pass can handle stereo cameras correctly.

virtual ezGALTextureHandle QueryTextureProvider (const ezRenderPipelineNodePin *pPin, const ezGALTextureCreationDescription &desc)

virtual void InitRenderPipelinePass (const ezArrayPtr< ezRenderPipelinePassConnection *const > inputs, const ezArrayPtr< ezRenderPipelinePassConnection *const > outputs)
 After GetRenderTargetDescriptions was called successfully for each pass, this function is called with the inputs and outputs for review. Disconnected pins have a nullptr value in the passed in arrays. This is the time to create additional resources that are not covered by the pins automatically, e.g. a picking texture or eye adaptation buffer.

virtual void ExecuteInactive (const ezRenderViewContext &renderViewContext, const ezArrayPtr< ezRenderPipelinePassConnection *const > inputs, const ezArrayPtr< ezRenderPipelinePassConnection *const > outputs)

virtual void ReadBackProperties (ezView *pView)
 Allows for the pass to write data back using ezView::SetRenderPassReadBackProperty. E.g. picking results etc.

void RenderDataWithCategory (const ezRenderViewContext &renderViewContext, ezRenderData::Category category)

EZ_ALWAYS_INLINE ezRenderPipeline * GetPipeline ()

EZ_ALWAYS_INLINE const ezRenderPipeline * GetPipeline () const

- Public Member Functions inherited from ezRenderPipelineNode
void InitializePins ()

ezHashedString GetPinName (const ezRenderPipelineNodePin *pPin) const

const ezRenderPipelineNodePin * GetPinByName (const char *szName) const

const ezRenderPipelineNodePin * GetPinByName (ezHashedString sName) const

const ezArrayPtr< const ezRenderPipelineNodePin *const > GetInputPins () const

const ezArrayPtr< const ezRenderPipelineNodePin *const > GetOutputPins () const

- Public Member Functions inherited from ezReflectedClass
virtual const ezRTTI * GetDynamicRTTI () const

bool IsInstanceOf (const ezRTTI *pType) const
 Returns whether the type of this instance is of the given type or derived from it.

template<typename T >
EZ_ALWAYS_INLINE bool IsInstanceOf () const
 Returns whether the type of this instance is of the given type or derived from it.


Protected Attributes

ezRenderPipelineNodePassThroughPin m_PinColor

ezRenderPipelineNodePassThroughPin m_PinDepthStencil

ezString m_sMessage


Additional Inherited Members

- Static Public Member Functions inherited from ezNoBase
static const ezRTTI * GetStaticRTTI ()


Detailed Description

A very basic render pass that renders into the color target.

Can either works as passthrough or if no input is present creates output targets matching the view's render target. Needs to be connected to a ezTargetPass to function.

Member Function Documentation

◆ Deserialize()

ezResult ezSimpleRenderPass::Deserialize ( ezStreamReader &  inout_stream)
overridevirtual

Reimplemented from ezRenderPipelinePass.

◆ Execute()

void ezSimpleRenderPass::Execute ( const ezRenderViewContext &  renderViewContext,
const ezArrayPtr< ezRenderPipelinePassConnection *const >  inputs,
const ezArrayPtr< ezRenderPipelinePassConnection *const >  outputs
)
overridevirtual

Render into outputs. Both inputs and outputs are passed in with actual texture handles. Disconnected pins have a nullptr value in the passed in arrays. You can now create views and render target setups on the fly and fill the output targets with data.

Implements ezRenderPipelinePass.

◆ GetRenderTargetDescriptions()

bool ezSimpleRenderPass::GetRenderTargetDescriptions ( const ezView &  view,
const ezArrayPtr< ezGALTextureCreationDescription *const >  inputs,
ezArrayPtr< ezGALTextureCreationDescription >  outputs
)
overridevirtual

For a given input pin configuration, provide the output configuration of this node. Outputs is already resized to the number of output pins.

Implements ezRenderPipelinePass.

◆ Serialize()

ezResult ezSimpleRenderPass::Serialize ( ezStreamWriter &  inout_stream) const
overridevirtual

Reimplemented from ezRenderPipelinePass.

The documentation for this class was generated from the following files:
