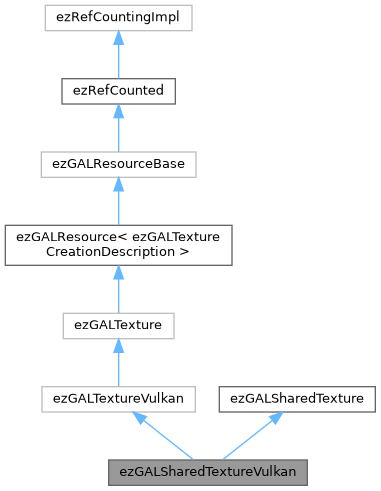

Inheritance diagram for ezGALSharedTextureVulkan:

[legend]

Protected Member Functions
	ezGALSharedTextureVulkan (const ezGALTextureCreationDescription &Description, ezEnum< ezGALSharedTextureType > sharedType, ezGALPlatformSharedHandle hSharedHandle)

virtual ezResult	InitPlatform (ezGALDevice *pDevice, ezArrayPtr< ezGALSystemMemoryDescription > pInitialData) override

virtual ezResult	DeInitPlatform (ezGALDevice *pDevice) override

virtual ezGALPlatformSharedHandle	GetSharedHandle () const override
	Returns the handle that can be used to open this texture on another device / process. Call ezGALDevice::OpenSharedTexture to do so.

virtual void	WaitSemaphoreGPU (ezUInt64 uiValue) const override
	Before the current render pipeline is executed, the GPU will wait for the semaphore to have the given value.

virtual void	SignalSemaphoreGPU (ezUInt64 uiValue) const override
	Once the current render pipeline is done on the GPU, the semaphore will be signaled with the given value.

Protected Member Functions inherited from ezGALTextureVulkan
	ezGALTextureVulkan (const ezGALTextureCreationDescription &Description)

virtual void	SetDebugNamePlatform (const char *szName) const override

Protected Member Functions inherited from ezGALTexture
	ezGALTexture (const ezGALTextureCreationDescription &Description)

Protected Attributes
ezEnum< ezGALSharedTextureType >	m_SharedType = ezGALSharedTextureType::None

ezGALPlatformSharedHandle	m_hSharedHandle

vk::Semaphore	m_SharedSemaphore

Protected Attributes inherited from ezGALTextureVulkan
vk::Image	m_image = {}

vk::Format	m_imageFormat = vk::Format::eUndefined

vk::ImageLayout	m_preferredLayout = vk::ImageLayout::eUndefined

vk::PipelineStageFlags	m_stages = {}

vk::AccessFlags	m_access = {}

ezVulkanAllocation	m_alloc = nullptr

ezVulkanAllocationInfo	m_allocInfo

ezHashTable< View, vk::DescriptorImageInfo, View >	m_TextureViews

ezGALDeviceVulkan *	m_pDevice = nullptr

Protected Attributes inherited from ezGALTexture
ezGALRenderTargetViewHandle	m_hDefaultRenderTargetView

ezHashTable< ezUInt32, ezGALRenderTargetViewHandle >	m_RenderTargetViews

Protected Attributes inherited from ezGALResource< ezGALTextureCreationDescription >
const ezGALTextureCreationDescription	m_Description

Friends
class	ezGALDeviceVulkan

class	ezMemoryUtils

Additional Inherited Members
Public Member Functions inherited from ezGALTextureVulkan
EZ_ALWAYS_INLINE vk::Image	GetImage () const

EZ_ALWAYS_INLINE vk::Format	GetImageFormat () const

EZ_ALWAYS_INLINE vk::ImageLayout	GetPreferredLayout () const

EZ_ALWAYS_INLINE vk::ImageLayout	GetPreferredLayout (vk::ImageLayout targetLayout) const

EZ_ALWAYS_INLINE vk::PipelineStageFlags	GetUsedByPipelineStage () const

EZ_ALWAYS_INLINE vk::AccessFlags	GetAccessMask () const

EZ_ALWAYS_INLINE ezVulkanAllocation	GetAllocation () const

EZ_ALWAYS_INLINE const ezVulkanAllocationInfo &	GetAllocationInfo () const

vk::Extent3D	GetMipLevelSize (ezUInt32 uiMipLevel) const

vk::ImageSubresourceRange	GetFullRange () const

vk::ImageAspectFlags	GetAspectMask () const

vk::DescriptorImageInfo	GetDescriptorImageInfo (ezGALTextureRange textureRange, ezEnum< ezGALShaderResourceType > resourceType, ezEnum< ezGALShaderTextureType > textureType, ezEnum< ezGALResourceFormat > overrideViewFormat) const

Public Member Functions inherited from ezGALTexture
ezVec3U32	GetMipMapSize (ezUInt32 uiMipLevel) const

ezGALTextureRange	ClampRange (ezGALTextureRange range) const
	Replaced EZ_GAL_ALL_MIP_LEVELS and EZ_GAL_ALL_ARRAY_SLICES with the correct upper bounds for this texture.

Public Member Functions inherited from ezGALResource< ezGALTextureCreationDescription >
EZ_ALWAYS_INLINE	ezGALResource (const ezGALTextureCreationDescription &description)

EZ_ALWAYS_INLINE const ezGALTextureCreationDescription &	GetDescription () const

Public Member Functions inherited from ezGALResourceBase
void	SetDebugName (const char *szName) const

virtual const ezGALResourceBase *	GetParentResource () const

Public Member Functions inherited from ezRefCounted
virtual	~ezRefCounted ()=default
	Adds a virtual destructor.

Public Member Functions inherited from ezRefCountingImpl
	ezRefCountingImpl ()=default
	Constructor.

	ezRefCountingImpl (const ezRefCountingImpl &rhs)

void	operator= (const ezRefCountingImpl &rhs)

ezInt32	AddRef () const
	Increments the reference counter. Returns the new reference count.

ezInt32	ReleaseRef () const
	Decrements the reference counter. Returns the new reference count.

bool	IsReferenced () const
	Returns true if the reference count is greater than 0, false otherwise.

ezInt32	GetRefCount () const
	Returns the current reference count.

Static Public Member Functions inherited from ezGALTextureVulkan
static vk::Format	ComputeImageFormat (const ezGALDeviceVulkan *pDevice, ezEnum< ezGALResourceFormat > galFormat, vk::ImageCreateInfo &ref_createInfo, vk::ImageFormatListCreateInfo &ref_imageFormats)

static void	ComputeCreateInfo (const ezGALDeviceVulkan *pDevice, const ezGALTextureCreationDescription &description, vk::ImageCreateInfo &ref_createInfo, vk::PipelineStageFlags &ref_stages, vk::AccessFlags &ref_access, vk::ImageLayout &ref_preferredLayout)

static void	ComputeAllocInfo (ezVulkanAllocationCreateInfo &ref_allocInfo)

static ezUInt32	ComputeSubResourceOffsets (const ezGALDeviceVulkan *pDevice, const ezGALTextureCreationDescription &description, ezDynamicArray< SubResourceOffset > &subResourceSizes)

static vk::Extent3D	GetMipLevelSize (const ezGALTextureCreationDescription &description, ezUInt32 uiMipLevel)

Member Function Documentation

◆ DeInitPlatform()

ezResult ezGALSharedTextureVulkan::DeInitPlatform ( ezGALDevice * pDevice )

overrideprotectedvirtual

Reimplemented from ezGALTextureVulkan.

◆ GetSharedHandle()

ezGALPlatformSharedHandle ezGALSharedTextureVulkan::GetSharedHandle ( ) const

overrideprotectedvirtual

Returns the handle that can be used to open this texture on another device / process. Call ezGALDevice::OpenSharedTexture to do so.

Implements ezGALSharedTexture.

◆ InitPlatform()

ezResult ezGALSharedTextureVulkan::InitPlatform	(	ezGALDevice *	pDevice,
		ezArrayPtr< ezGALSystemMemoryDescription >	pInitialData
	)

overrideprotectedvirtual

Reimplemented from ezGALTextureVulkan.

◆ SignalSemaphoreGPU()

void ezGALSharedTextureVulkan::SignalSemaphoreGPU ( ezUInt64 uiValue ) const

overrideprotectedvirtual

Once the current render pipeline is done on the GPU, the semaphore will be signaled with the given value.

Parameters

iValue Value the semaphore is set to once we are done using the texture (after the current render pipeline).

Implements ezGALSharedTexture.

◆ WaitSemaphoreGPU()

void ezGALSharedTextureVulkan::WaitSemaphoreGPU ( ezUInt64 uiValue ) const

overrideprotectedvirtual

Before the current render pipeline is executed, the GPU will wait for the semaphore to have the given value.

Parameters

iValue Value the semaphore needs to have before the texture can be used.

Implements ezGALSharedTexture.

The documentation for this class was generated from the following files:

/home/runner/work/ezEngine/ezEngine/Code/Engine/RendererVulkan/Resources/SharedTextureVulkan.h
/home/runner/work/ezEngine/ezEngine/Code/Engine/RendererVulkan/Resources/Implementation/SharedTextureVulkan.cpp
