#include <SeparatedBilateralBlur.h>

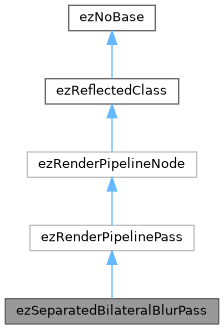

Inheritance diagram for ezSeparatedBilateralBlurPass:

[legend]

Public Member Functions
virtual bool	GetRenderTargetDescriptions (const ezView &view, const ezArrayPtr< ezGALTextureCreationDescription *const > inputs, ezArrayPtr< ezGALTextureCreationDescription > outputs) override
	For a given input pin configuration, provide the output configuration of this node. Outputs is already resized to the number of output pins.

virtual void	Execute (const ezRenderViewContext &renderViewContext, const ezArrayPtr< ezRenderPipelinePassConnection const > inputs, const ezArrayPtr< ezRenderPipelinePassConnection const > outputs) override
	Render into outputs. Both inputs and outputs are passed in with actual texture handles. Disconnected pins have a nullptr value in the passed in arrays. You can now create views and render target setups on the fly and fill the output targets with data.

virtual ezResult	Serialize (ezStreamWriter &inout_stream) const override

virtual ezResult	Deserialize (ezStreamReader &inout_stream) override

void	SetRadius (ezUInt32 uiRadius)
	Sets the blur kernel radius in pixels.

ezUInt32	GetRadius () const

void	SetGaussianSigma (float fSigma)
	Sets the gaussian distribution sigma.

float	GetGaussianSigma () const

void	SetSharpness (float fSharpness)
	Sets edge preservation strength.

float	GetSharpness () const

Public Member Functions inherited from ezRenderPipelinePass
	ezRenderPipelinePass (const char *szName, bool bIsStereoAware=false)

void	SetName (const char *szName)
	Sets the name of the pass.

const char *	GetName () const
	returns the name of the pass.

bool	IsStereoAware () const
	True if the render pipeline pass can handle stereo cameras correctly.

virtual ezGALTextureHandle	QueryTextureProvider (const ezRenderPipelineNodePin *pPin, const ezGALTextureCreationDescription &desc)

virtual void	InitRenderPipelinePass (const ezArrayPtr< ezRenderPipelinePassConnection const > inputs, const ezArrayPtr< ezRenderPipelinePassConnection const > outputs)
	After GetRenderTargetDescriptions was called successfully for each pass, this function is called with the inputs and outputs for review. Disconnected pins have a nullptr value in the passed in arrays. This is the time to create additional resources that are not covered by the pins automatically, e.g. a picking texture or eye adaptation buffer.

virtual void	ExecuteInactive (const ezRenderViewContext &renderViewContext, const ezArrayPtr< ezRenderPipelinePassConnection const > inputs, const ezArrayPtr< ezRenderPipelinePassConnection const > outputs)

virtual void	ReadBackProperties (ezView *pView)
	Allows for the pass to write data back using ezView::SetRenderPassReadBackProperty. E.g. picking results etc.

void	RenderDataWithCategory (const ezRenderViewContext &renderViewContext, ezRenderData::Category category)

EZ_ALWAYS_INLINE ezRenderPipeline *	GetPipeline ()

EZ_ALWAYS_INLINE const ezRenderPipeline *	GetPipeline () const

Public Member Functions inherited from ezRenderPipelineNode
void	InitializePins ()

ezHashedString	GetPinName (const ezRenderPipelineNodePin *pPin) const

const ezRenderPipelineNodePin *	GetPinByName (const char *szName) const

const ezRenderPipelineNodePin *	GetPinByName (ezHashedString sName) const

const ezArrayPtr< const ezRenderPipelineNodePin *const >	GetInputPins () const

const ezArrayPtr< const ezRenderPipelineNodePin *const >	GetOutputPins () const

Public Member Functions inherited from ezReflectedClass
virtual const ezRTTI *	GetDynamicRTTI () const

bool	IsInstanceOf (const ezRTTI *pType) const
	Returns whether the type of this instance is of the given type or derived from it.

template<typename T >
EZ_ALWAYS_INLINE bool	IsInstanceOf () const
	Returns whether the type of this instance is of the given type or derived from it.

Protected Attributes
ezRenderPipelineNodeInputPin	m_PinBlurSourceInput
	Source texture to blur.

ezRenderPipelineNodeInputPin	m_PinDepthInput
	Depth buffer for edge detection.

ezRenderPipelineNodeOutputPin	m_PinOutput
	Blurred output.

ezUInt32	m_uiRadius = 7
	Blur kernel radius in pixels.

float	m_fGaussianSigma = 3.5f
	Gaussian distribution sigma.

float	m_fSharpness = 120.0f
	Edge preservation strength (higher = sharper edges).

ezConstantBufferStorageHandle	m_hBilateralBlurCB
	Constant buffer for blur parameters.

ezShaderResourceHandle	m_hShader
	Bilateral blur shader.

Additional Inherited Members
Static Public Member Functions inherited from ezNoBase
static const ezRTTI *	GetStaticRTTI ()

Detailed Description

Render pass that applies depth-aware blur to preserve edges.

Uses a bilateral filter that considers both spatial distance and depth difference to avoid blurring across edges. Implemented as a two-pass separable filter, which is technically approximate but works well in practice (hence "separated" not "separable").

Member Function Documentation

◆ Deserialize()

ezResult ezSeparatedBilateralBlurPass::Deserialize ( ezStreamReader & inout_stream )

overridevirtual

Reimplemented from ezRenderPipelinePass.

◆ Execute()

void ezSeparatedBilateralBlurPass::Execute	(	const ezRenderViewContext &	renderViewContext,
		const ezArrayPtr< ezRenderPipelinePassConnection *const >	inputs,
		const ezArrayPtr< ezRenderPipelinePassConnection *const >	outputs
	)

overridevirtual

Render into outputs. Both inputs and outputs are passed in with actual texture handles. Disconnected pins have a nullptr value in the passed in arrays. You can now create views and render target setups on the fly and fill the output targets with data.

Implements ezRenderPipelinePass.

◆ GetRenderTargetDescriptions()

bool ezSeparatedBilateralBlurPass::GetRenderTargetDescriptions	(	const ezView &	view,
		const ezArrayPtr< ezGALTextureCreationDescription *const >	inputs,
		ezArrayPtr< ezGALTextureCreationDescription >	outputs
	)

overridevirtual

For a given input pin configuration, provide the output configuration of this node. Outputs is already resized to the number of output pins.

Implements ezRenderPipelinePass.

◆ Serialize()

ezResult ezSeparatedBilateralBlurPass::Serialize ( ezStreamWriter & inout_stream ) const

overridevirtual

Reimplemented from ezRenderPipelinePass.

The documentation for this class was generated from the following files:

/home/runner/work/ezEngine/ezEngine/Code/Engine/RendererCore/Pipeline/Passes/SeparatedBilateralBlur.h
/home/runner/work/ezEngine/ezEngine/Code/Engine/RendererCore/Pipeline/Implementation/Passes/SeparatedBilateralBlur.cpp
