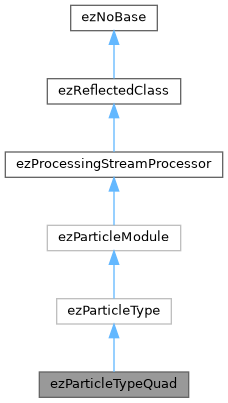

Inheritance diagram for ezParticleTypeQuad:

[legend]

Public Member Functions
virtual void	CreateRequiredStreams () override

virtual void	ExtractTypeRenderData (ezMsgExtractRenderData &ref_msg, const ezTransform &instanceTransform) const override

Public Member Functions inherited from ezParticleType
virtual float	GetMaxParticleRadius (float fParticleSize) const

Public Member Functions inherited from ezParticleModule
virtual void	QueryOptionalStreams ()

void	Reset (ezParticleSystemInstance *pOwner)

virtual void	OnFinalize ()
	Called after everything is set up.

ezParticleSystemInstance *	GetOwnerSystem ()

const ezParticleSystemInstance *	GetOwnerSystem () const

ezParticleEffectInstance *	GetOwnerEffect () const

virtual void	RequestRequiredWorldModulesForCache (ezParticleWorldModule *pParticleModule)
	Override this to cache world module pointers for later (through ezParticleWorldModule::GetCachedWorldModule()).

Public Member Functions inherited from ezProcessingStreamProcessor
	ezProcessingStreamProcessor ()
	Base constructor.

virtual	~ezProcessingStreamProcessor ()
	Base destructor.

Public Member Functions inherited from ezReflectedClass
virtual const ezRTTI *	GetDynamicRTTI () const

bool	IsInstanceOf (const ezRTTI *pType) const
	Returns whether the type of this instance is of the given type or derived from it.

template<typename T >
EZ_ALWAYS_INLINE bool	IsInstanceOf () const
	Returns whether the type of this instance is of the given type or derived from it.

Public Attributes
ezEnum< ezQuadParticleOrientation >	m_Orientation

ezAngle	m_MaxDeviation

ezEnum< ezParticleTypeRenderMode >	m_RenderMode

ezTexture2DResourceHandle	m_hTexture

ezEnum< ezParticleTextureAtlasType >	m_TextureAtlasType

ezUInt8	m_uiNumSpritesX = 1

ezUInt8	m_uiNumSpritesY = 1

ezTempHashedString	m_sTintColorParameter

ezTexture2DResourceHandle	m_hDistortionTexture

float	m_fDistortionStrength = 0

float	m_fStretch = 1

ezEnum< ezParticleLightingMode >	m_LightingMode

float	m_fNormalCurvature = 0.5f

float	m_fLightDirectionality = 0.5f

Public Attributes inherited from ezProcessingStreamProcessor
float	m_fPriority = 0.0f
	Used for sorting processors, to ensure a certain order. Lower priority == executed first.

Protected Member Functions
virtual void	InitializeElements (ezUInt64 uiStartIndex, ezUInt64 uiNumElements) override
	This method needs to be implemented in order to initialize new elements to specific values.

virtual void	Process (ezUInt64 uiNumElements) override
	The actual method which processes the data, will be called with the number of elements to process.

void	AllocateParticleData (const ezUInt32 numParticles, const bool bNeedsBillboardData, const bool bNeedsTangentData) const

void	AddParticleRenderData (ezMsgExtractRenderData &msg, const ezTransform &instanceTransform) const

void	CreateExtractedData (const ezHybridArray< sod, 64 > *pSorted) const

Protected Member Functions inherited from ezParticleType
virtual void	StepParticleSystem (const ezTime &tDiff, ezUInt32 uiNumNewParticles)

Protected Member Functions inherited from ezParticleModule
virtual void	OnReset ()
	Called by Reset()

void	CreateStream (const char szName, ezProcessingStream::DataType Type, ezProcessingStream *ppStream, bool bWillInitializeStream)

virtual ezResult	UpdateStreamBindings () final override
	Internal method which needs to be implemented, gets the concrete stream bindings. This is called every time the streams are resized. Implementations should check that their required streams exist and are of the correct data types.

ezRandom &	GetRNG () const

Protected Attributes
ezProcessingStream *	m_pStreamLifeTime = nullptr

ezProcessingStream *	m_pStreamPosition = nullptr

ezProcessingStream *	m_pStreamSize = nullptr

ezProcessingStream *	m_pStreamColor = nullptr

ezProcessingStream *	m_pStreamRotationSpeed = nullptr

ezProcessingStream *	m_pStreamRotationOffset = nullptr

ezProcessingStream *	m_pStreamAxis = nullptr

ezProcessingStream *	m_pStreamVariation = nullptr

ezProcessingStream *	m_pStreamLastPosition = nullptr

ezArrayPtr< ezBaseParticleShaderData >	m_BaseParticleData

ezArrayPtr< ezBillboardQuadParticleShaderData >	m_BillboardParticleData

ezArrayPtr< ezTangentQuadParticleShaderData >	m_TangentParticleData

Protected Attributes inherited from ezParticleType
ezTime	m_TimeDiff

ezUInt64	m_uiLastExtractedFrame

Protected Attributes inherited from ezProcessingStreamProcessor
ezProcessingStreamGroup *	m_pStreamGroup = nullptr
	Back pointer to the stream group - will be set to the owner stream group when adding the stream processor to the group. Can be used to get stream pointers in UpdateStreamBindings();.

Additional Inherited Members
Static Public Member Functions inherited from ezNoBase
static const ezRTTI *	GetStaticRTTI ()

Static Protected Member Functions inherited from ezParticleType
static ezUInt32	ComputeSortingKey (ezParticleTypeRenderMode::Enum mode, ezUInt64 uiTextureHash)

Member Function Documentation

◆ CreateRequiredStreams()

void ezParticleTypeQuad::CreateRequiredStreams ( )

overridevirtual

void ezParticleTypeQuad::ExtractTypeRenderData	(	ezMsgExtractRenderData &	ref_msg,
		const ezTransform &	instanceTransform
	)		const

overridevirtual

void ezParticleTypeQuad::InitializeElements	(	ezUInt64	uiStartIndex,
		ezUInt64	uiNumElements
	)

overrideprotectedvirtual

This method needs to be implemented in order to initialize new elements to specific values.

Reimplemented from ezParticleType.

virtual void ezParticleTypeQuad::Process ( ezUInt64 uiNumElements )

inlineoverrideprotectedvirtual

The actual method which processes the data, will be called with the number of elements to process.

The documentation for this class was generated from the following files:

/home/runner/work/ezEngine/ezEngine/Code/EnginePlugins/ParticlePlugin/Type/Quad/ParticleTypeQuad.h
/home/runner/work/ezEngine/ezEngine/Code/EnginePlugins/ParticlePlugin/Type/Quad/ParticleTypeQuad.cpp
