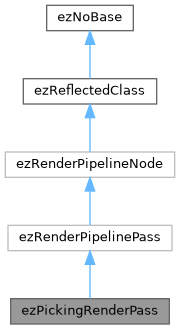

Inheritance diagram for ezPickingRenderPass:

[legend]

Public Member Functions
ezGALTextureHandle	GetPickingIdRT () const

ezGALTextureHandle	GetPickingDepthRT () const

virtual bool	GetRenderTargetDescriptions (const ezView &view, const ezArrayPtr< ezGALTextureCreationDescription *const > inputs, ezArrayPtr< ezGALTextureCreationDescription > outputs) override
	For a given input pin configuration, provide the output configuration of this node. Outputs is already resized to the number of output pins.

virtual void	InitRenderPipelinePass (const ezArrayPtr< ezRenderPipelinePassConnection const > inputs, const ezArrayPtr< ezRenderPipelinePassConnection const > outputs) override
	After GetRenderTargetDescriptions was called successfully for each pass, this function is called with the inputs and outputs for review. Disconnected pins have a nullptr value in the passed in arrays. This is the time to create additional resources that are not covered by the pins automatically, e.g. a picking texture or eye adaptation buffer.

virtual void	Execute (const ezRenderViewContext &renderViewContext, const ezArrayPtr< ezRenderPipelinePassConnection const > inputs, const ezArrayPtr< ezRenderPipelinePassConnection const > outputs) override
	Render into outputs. Both inputs and outputs are passed in with actual texture handles. Disconnected pins have a nullptr value in the passed in arrays. You can now create views and render target setups on the fly and fill the output targets with data.

virtual void	ReadBackProperties (ezView *pView) override
	Allows for the pass to write data back using ezView::SetRenderPassReadBackProperty. E.g. picking results etc.

Public Member Functions inherited from ezRenderPipelinePass
	ezRenderPipelinePass (const char *szName, bool bIsStereoAware=false)

void	SetName (const char *szName)
	Sets the name of the pass.

const char *	GetName () const
	returns the name of the pass.

bool	IsStereoAware () const
	True if the render pipeline pass can handle stereo cameras correctly.

virtual ezGALTextureHandle	QueryTextureProvider (const ezRenderPipelineNodePin *pPin, const ezGALTextureCreationDescription &desc)

virtual void	ExecuteInactive (const ezRenderViewContext &renderViewContext, const ezArrayPtr< ezRenderPipelinePassConnection const > inputs, const ezArrayPtr< ezRenderPipelinePassConnection const > outputs)

virtual ezResult	Serialize (ezStreamWriter &inout_stream) const

virtual ezResult	Deserialize (ezStreamReader &inout_stream)

void	RenderDataWithCategory (const ezRenderViewContext &renderViewContext, ezRenderData::Category category)

EZ_ALWAYS_INLINE ezRenderPipeline *	GetPipeline ()

EZ_ALWAYS_INLINE const ezRenderPipeline *	GetPipeline () const

Public Member Functions inherited from ezRenderPipelineNode
void	InitializePins ()

ezHashedString	GetPinName (const ezRenderPipelineNodePin *pPin) const

const ezRenderPipelineNodePin *	GetPinByName (const char *szName) const

const ezRenderPipelineNodePin *	GetPinByName (ezHashedString sName) const

const ezArrayPtr< const ezRenderPipelineNodePin *const >	GetInputPins () const

const ezArrayPtr< const ezRenderPipelineNodePin *const >	GetOutputPins () const

Public Member Functions inherited from ezReflectedClass
virtual const ezRTTI *	GetDynamicRTTI () const

bool	IsInstanceOf (const ezRTTI *pType) const
	Returns whether the type of this instance is of the given type or derived from it.

template<typename T >
EZ_ALWAYS_INLINE bool	IsInstanceOf () const
	Returns whether the type of this instance is of the given type or derived from it.

Public Attributes
bool	m_bPickSelected = true

bool	m_bPickTransparent = true

ezVec2	m_PickingPosition = ezVec2(-1)

ezUInt32	m_PickingIdOut = 0

float	m_PickingDepthOut = 0.0f

ezVec2	m_MarqueePickPosition0 = ezVec2(-1)

ezVec2	m_MarqueePickPosition1 = ezVec2(-1)

ezUInt32	m_uiMarqueeActionID = 0xFFFFFFFF

ezUInt32	m_uiWindowWidth = 0

ezUInt32	m_uiWindowHeight = 0

Additional Inherited Members
Static Public Member Functions inherited from ezNoBase
static const ezRTTI *	GetStaticRTTI ()

Member Function Documentation

◆ Execute()

void ezPickingRenderPass::Execute	(	const ezRenderViewContext &	renderViewContext,
		const ezArrayPtr< ezRenderPipelinePassConnection *const >	inputs,
		const ezArrayPtr< ezRenderPipelinePassConnection *const >	outputs
	)

overridevirtual

Render into outputs. Both inputs and outputs are passed in with actual texture handles. Disconnected pins have a nullptr value in the passed in arrays. You can now create views and render target setups on the fly and fill the output targets with data.

Implements ezRenderPipelinePass.

◆ GetRenderTargetDescriptions()

bool ezPickingRenderPass::GetRenderTargetDescriptions	(	const ezView &	view,
		const ezArrayPtr< ezGALTextureCreationDescription *const >	inputs,
		ezArrayPtr< ezGALTextureCreationDescription >	outputs
	)

overridevirtual

For a given input pin configuration, provide the output configuration of this node. Outputs is already resized to the number of output pins.

Implements ezRenderPipelinePass.

◆ InitRenderPipelinePass()

void ezPickingRenderPass::InitRenderPipelinePass	(	const ezArrayPtr< ezRenderPipelinePassConnection *const >	inputs,
		const ezArrayPtr< ezRenderPipelinePassConnection *const >	outputs
	)

overridevirtual

After GetRenderTargetDescriptions was called successfully for each pass, this function is called with the inputs and outputs for review. Disconnected pins have a nullptr value in the passed in arrays. This is the time to create additional resources that are not covered by the pins automatically, e.g. a picking texture or eye adaptation buffer.

Reimplemented from ezRenderPipelinePass.

◆ ReadBackProperties()

void ezPickingRenderPass::ReadBackProperties ( ezView * pView )

overridevirtual

Allows for the pass to write data back using ezView::SetRenderPassReadBackProperty. E.g. picking results etc.

Reimplemented from ezRenderPipelinePass.

The documentation for this class was generated from the following files:

/home/runner/work/ezEngine/ezEngine/Code/Editor/EditorEngineProcessFramework/PickingRenderPass/PickingRenderPass.h
/home/runner/work/ezEngine/ezEngine/Code/Editor/EditorEngineProcessFramework/PickingRenderPass/PickingRenderPass.cpp
