Public Member Functions | Protected Member Functions | Protected Attributes | List of all members
ezAOPass Class Reference

#include <AOPass.h>

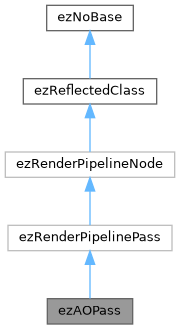

Inheritance diagram for ezAOPass:
Inheritance graph
[legend]

Public Member Functions

virtual ezStatus AddRenderPasses (const ezViewData &viewData, const ezCamera &camera, ezRenderGraph &ref_graph, const ezArrayPtr< const ezRenderPipelinePinConnection > inputs, ezArrayPtr< ezRenderPipelinePinConnection > outputs) override
 Called by the render pipeline when this pass is active. The pass declares its render-graph passes and writes the resulting transient handles into the outputs array.

virtual ezStatus AddRenderPassesInactive (const ezViewData &viewData, const ezCamera &camera, ezRenderGraph &ref_graph, const ezArrayPtr< const ezRenderPipelinePinConnection > inputs, ezArrayPtr< ezRenderPipelinePinConnection > outputs) override
 Called by the render pipeline when this pass is inactive instead of AddRenderPasses. The default implementation does nothing; passes that produce outputs must override this and at minimum write the same output handles they would in AddRenderPasses (typically by adding a clear pass) so downstream passes still see a valid resource.

virtual ezResult Serialize (ezStreamWriter &inout_stream) const override

virtual ezResult Deserialize (ezStreamReader &inout_stream) override

void SetFadeOutStart (float fStart)

float GetFadeOutStart () const

void SetFadeOutEnd (float fEnd)

float GetFadeOutEnd () const

- Public Member Functions inherited from ezRenderPipelinePass
 ezRenderPipelinePass (const char *szName, bool bIsStereoAware=false)

void SetName (const char *szName)
 Sets the name of the pass.

const char * GetName () const
 returns the name of the pass.

EZ_ALWAYS_INLINE bool IsStereoAware () const
 True if the render pipeline pass can handle stereo cameras correctly.

virtual void ReadBackProperties (ezView *pView)
 Allows for the pass to write data back using ezView::SetRenderPassReadBackProperty. E.g. picking results etc.

void DeclareRendererDependenciesForCategory (ezRenderData::Category category, ezRenderGraph &ref_graph, ezRenderGraphPassBuilder &ref_passBuilder)

void RenderDataWithCategory (const ezRenderViewContext &renderViewContext, ezRenderData::Category category)

EZ_ALWAYS_INLINE ezRenderPipeline * GetPipeline ()

EZ_ALWAYS_INLINE const ezRenderPipeline * GetPipeline () const

virtual ezGALTextureHandle QueryTextureProvider (const ezRenderPipelineNodePin *pPin, const ezGALTextureCreationDescription &desc)

- Public Member Functions inherited from ezRenderPipelineNode
void InitializePins ()

ezHashedString GetPinName (const ezRenderPipelineNodePin *pPin) const

const ezRenderPipelineNodePin * GetPinByName (ezTempHashedString sName) const

const ezArrayPtr< const ezRenderPipelineNodePin *const > GetInputPins () const

const ezArrayPtr< const ezRenderPipelineNodePin *const > GetOutputPins () const

- Public Member Functions inherited from ezReflectedClass
virtual const ezRTTI * GetDynamicRTTI () const

bool IsInstanceOf (const ezRTTI *pType) const
 Returns whether the type of this instance is of the given type or derived from it.

template<typename T >
EZ_ALWAYS_INLINE bool IsInstanceOf () const
 Returns whether the type of this instance is of the given type or derived from it.


Protected Member Functions

void CreateSamplerState ()

- Protected Member Functions inherited from ezRenderPipelinePass
void SetReadBackProperty (ezView *pView, ezStringView sPropertyName, const ezVariant &value)


Protected Attributes

ezRenderPipelineNodeInputPin m_PinDepthInput

ezRenderPipelineNodeOutputPin m_PinOutput

float m_fRadius = 1.0f

float m_fMaxScreenSpaceRadius = 1.0f

float m_fContrast = 2.0f

float m_fIntensity = 0.7f

float m_fFadeOutStart = 80.0f

float m_fFadeOutEnd = 100.0f

float m_fPositionBias = 5.0f

float m_fMipLevelScale = 10.0f

float m_fDepthBlurThreshold = 2.0f

ezConstantBufferStorageHandle m_hDownscaleConstantBuffer

ezConstantBufferStorageHandle m_hSSAOConstantBuffer

ezTexture2DResourceHandle m_hNoiseTexture

ezGALSamplerStateHandle m_hSSAOSamplerState

ezShaderResourceHandle m_hDownscaleShader

ezShaderResourceHandle m_hSSAOShader

ezShaderResourceHandle m_hBlurShader

ezRenderGraphTextureHandle m_hHzbTexture

ezTempHybridArray< ezVec2, 8 > m_HzbSizes

ezTempHybridArray< ezGALTextureRange, 8 > m_HzbResourceViews

ezRenderGraphTextureHandle m_hSSAOTemp


Additional Inherited Members

- Static Public Member Functions inherited from ezNoBase
static const ezRTTI * GetStaticRTTI ()


Detailed Description

Render pass that computes screen-space ambient occlusion (SSAO).

Generates an ambient occlusion texture from the depth buffer. The effect darkens areas where geometry is close together, simulating indirect lighting occlusion. Supports distance-based fade-out and various quality parameters.

Member Function Documentation

◆ AddRenderPasses()

ezStatus ezAOPass::AddRenderPasses ( const ezViewData &  viewData,
const ezCamera &  camera,
ezRenderGraph &  ref_graph,
const ezArrayPtr< const ezRenderPipelinePinConnection >  inputs,
ezArrayPtr< ezRenderPipelinePinConnection >  outputs
)
overridevirtual

Called by the render pipeline when this pass is active. The pass declares its render-graph passes and writes the resulting transient handles into the outputs array.

Reimplemented from ezRenderPipelinePass.

◆ AddRenderPassesInactive()

ezStatus ezAOPass::AddRenderPassesInactive ( const ezViewData &  viewData,
const ezCamera &  camera,
ezRenderGraph &  ref_graph,
const ezArrayPtr< const ezRenderPipelinePinConnection >  inputs,
ezArrayPtr< ezRenderPipelinePinConnection >  outputs
)
overridevirtual

Called by the render pipeline when this pass is inactive instead of AddRenderPasses. The default implementation does nothing; passes that produce outputs must override this and at minimum write the same output handles they would in AddRenderPasses (typically by adding a clear pass) so downstream passes still see a valid resource.

Reimplemented from ezRenderPipelinePass.

◆ Deserialize()

ezResult ezAOPass::Deserialize ( ezStreamReader &  inout_stream)
overridevirtual

Reimplemented from ezRenderPipelinePass.

◆ Serialize()

ezResult ezAOPass::Serialize ( ezStreamWriter &  inout_stream) const
overridevirtual

Reimplemented from ezRenderPipelinePass.

The documentation for this class was generated from the following files:
