ezQtVisualGraphScene Class Reference

#include <Scene.moc.h>

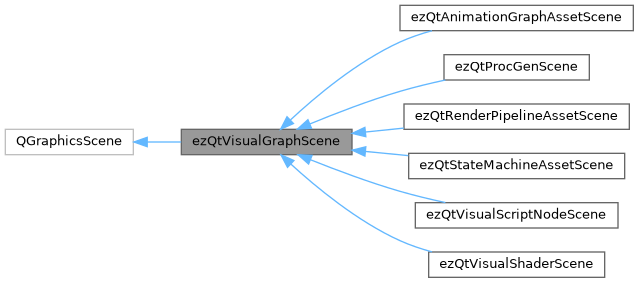

Inheritance diagram for ezQtVisualGraphScene:

Classes
struct	ConnectionDecorationFlags
struct	ConnectionStyle
	Visual style for rendering connections between pins. More...

Public Types
enum	Type { Node = QGraphicsItem::UserType + 1 , Pin , Connection }

Public Member Functions
	ezQtVisualGraphScene (QObject *pParent=nullptr)
virtual void	InitScene (const ezVisualGraphObjectManager *pManager)
const ezVisualGraphObjectManager *	GetDocumentNodeManager () const
const ezDocument *	GetDocument () const
void	SetConnectionStyle (ezEnum< ConnectionStyle > style)
ezEnum< ConnectionStyle >	GetConnectionStyle () const
void	SetConnectionDecorationFlags (ezBitflags< ConnectionDecorationFlags > flags)
ezBitflags< ConnectionDecorationFlags >	GetConnectionDecorationFlags () const

Static Public Member Functions
static ezRttiMappedObjectFactory< ezQtVisualGraphNode > &	GetNodeFactory () { return new ezQtStateMachineConnection()
static ezRttiMappedObjectFactory< ezQtVisualGraphPin > &	GetPinFactory ()
static ezRttiMappedObjectFactory< ezQtVisualGraphConnection > &	GetConnectionFactory ()
static ezVec2	GetLastMouseInteractionPos ()

Protected Member Functions
virtual void	mouseMoveEvent (QGraphicsSceneMouseEvent *event) override
virtual void	mousePressEvent (QGraphicsSceneMouseEvent *event) override
virtual void	mouseReleaseEvent (QGraphicsSceneMouseEvent *event) override
virtual void	contextMenuEvent (QGraphicsSceneContextMenuEvent *contextMenuEvent) override
virtual void	keyPressEvent (QKeyEvent *event) override
virtual ezStatus	RemoveNode (ezQtVisualGraphNode *pNode)
virtual void	RemoveSelectedNodesAction ()
virtual void	ConnectPinsAction (const ezVisualGraphPin &sourcePin, const ezVisualGraphPin &targetPin)
virtual void	DisconnectPinsAction (ezQtVisualGraphConnection *pConnection)
virtual void	DisconnectPinsAction (ezQtVisualGraphPin *pPin)

Protected Attributes
const ezVisualGraphObjectManager *	m_pManager = nullptr
ezMap< const ezDocumentObject *, ezQtVisualGraphNode * >	m_Nodes
ezMap< const ezDocumentObject *, ezQtVisualGraphConnection * >	m_Connections

Detailed Description

Qt graphics scene for displaying and interacting with visual graphs.

This class manages the visual representation of node graphs, including rendering nodes, pins, and connections. It handles user interactions such as node creation, connection dragging, and selection. Works in conjunction with ezVisualGraphObjectManager which manages the document-side graph data.

---

The documentation for this class was generated from the following files:

• /home/runner/work/ezEngine/ezEngine/Code/Tools/Libs/GuiFoundation/VisualGraph/Scene.moc.h
• /home/runner/work/ezEngine/ezEngine/Code/EditorPlugins/Assets/EditorPluginAssets/StateMachineAsset/StateMachineGraph.cpp
• /home/runner/work/ezEngine/ezEngine/Code/EditorPlugins/Assets/EditorPluginAssets/VisualShader/VisualShaderTypeRegistry.cpp
• /home/runner/work/ezEngine/ezEngine/Code/EditorPlugins/ProcGen/EditorPluginProcGen/ProcGenGraphAsset/ProcGenNodeManager.cpp
• /home/runner/work/ezEngine/ezEngine/Code/EditorPlugins/VisualScript/EditorPluginVisualScript/VisualScriptGraph/VisualScriptGraphQt.cpp
• /home/runner/work/ezEngine/ezEngine/Code/Tools/Libs/GuiFoundation/VisualGraph/Implementation/Scene.cpp
