ezQtVisualGraphConnection Class Reference

#include <Connection.h>

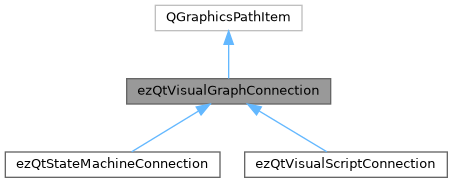

Inheritance diagram for ezQtVisualGraphConnection:
Inheritance graph
[legend]

Public Member Functions

 ezQtVisualGraphConnection (QGraphicsItem *pParent=0)

virtual int type () const override

const ezDocumentObject * GetObject () const

const ezVisualGraphConnection * GetConnection () const

void InitConnection (const ezDocumentObject *pObject, const ezVisualGraphConnection *pConnection)

void SetPosIn (const QPointF &point)

void SetPosOut (const QPointF &point)

void SetDirIn (const QPointF &dir)

void SetDirOut (const QPointF &dir)

virtual void UpdateGeometry ()

virtual QPen DeterminePen () const

const QPointF & GetInPos () const

const QPointF & GetOutPos () const

virtual void ExtendContextMenu (QMenu &ref_menu)


Public Attributes

bool m_bAdjacentNodeSelected = false


Protected Member Functions

virtual void paint (QPainter *painter, const QStyleOptionGraphicsItem *option, QWidget *widget) override

void DrawSubwayPath (QPainterPath &path, const QPointF &startPoint, const QPointF &endPoint)


Protected Attributes

const ezDocumentObject * m_pObject = nullptr

const ezVisualGraphConnection * m_pConnection = nullptr

QPointF m_InPoint

QPointF m_OutPoint

QPointF m_InDir

QPointF m_OutDir


Detailed Description

Qt graphics item representing a connection between two pins in a visual graph.

Renders the visual connection path between pins using different styles (bezier curves, straight lines, or subway-style routing). Updates its geometry automatically when connected pins move.
