#include <VisualGraphObjectManager.h>

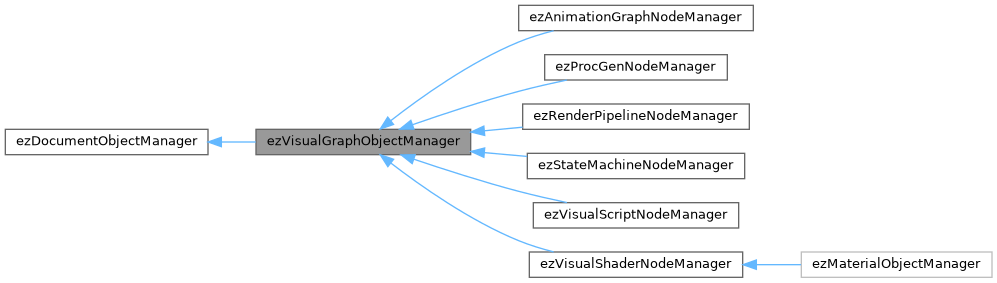

Inheritance diagram for ezVisualGraphObjectManager:

[legend]

Classes
struct	NodeInternal

Public Types
enum class	CanConnectResult { ConnectNever , Connect1to1 , Connect1toN , ConnectNto1 , ConnectNtoN }
	Specifies how many connections are allowed for a pair of pins. More...

Public Member Functions
virtual void	GetNodeCreationTemplates (ezDynamicArray< ezVisualGraphNodeDesc > &out_templates) const
	For node documents this function is called instead of GetCreateableTypes to get a list for the node creation menu.

virtual const ezRTTI *	GetConnectionType () const

ezVec2	GetNodePos (const ezDocumentObject *pObject) const

const ezVisualGraphConnection &	GetConnection (const ezDocumentObject *pObject) const

const ezVisualGraphConnection *	GetConnectionIfExists (const ezDocumentObject *pObject) const

const ezVisualGraphPin *	GetInputPinByName (const ezDocumentObject *pObject, ezStringView sName) const

const ezVisualGraphPin *	GetOutputPinByName (const ezDocumentObject *pObject, ezStringView sName) const

ezArrayPtr< const ezUniquePtr< const ezVisualGraphPin > >	GetInputPins (const ezDocumentObject *pObject) const

ezArrayPtr< const ezUniquePtr< const ezVisualGraphPin > >	GetOutputPins (const ezDocumentObject *pObject) const

bool	IsNode (const ezDocumentObject *pObject) const

bool	IsConnection (const ezDocumentObject *pObject) const

bool	IsDynamicPinProperty (const ezDocumentObject pObject, const ezAbstractProperty pProp) const

ezArrayPtr< const ezVisualGraphConnection *const >	GetConnections (const ezVisualGraphPin &pin) const

bool	HasConnections (const ezVisualGraphPin &pin) const

bool	IsConnected (const ezVisualGraphPin &source, const ezVisualGraphPin &target) const

ezStatus	CanConnect (const ezRTTI *pObjectType, const ezVisualGraphPin &source, const ezVisualGraphPin &target, CanConnectResult &ref_result) const

ezStatus	CanDisconnect (const ezVisualGraphConnection *pConnection) const

ezStatus	CanDisconnect (const ezDocumentObject *pObject) const

ezStatus	CanMoveNode (const ezDocumentObject *pObject, const ezVec2 &vPos) const

void	Connect (const ezDocumentObject *pObject, const ezVisualGraphPin &source, const ezVisualGraphPin &target)

void	Disconnect (const ezDocumentObject *pObject)

void	MoveNode (const ezDocumentObject *pObject, const ezVec2 &vPos)

void	AttachMetaDataBeforeSaving (ezAbstractObjectGraph &ref_graph) const

void	RestoreMetaDataAfterLoading (const ezAbstractObjectGraph &graph, bool bUndoable)

void	GetMetaDataHash (const ezDocumentObject *pObject, ezUInt64 &inout_uiHash) const

bool	CopySelectedObjects (ezAbstractObjectGraph &out_objectGraph) const

bool	PasteObjects (const ezArrayPtr< ezDocument::PasteInfo > &info, const ezAbstractObjectGraph &objectGraph, const ezVec2 &vPickedPosition, bool bAllowPickedPosition)

Public Member Functions inherited from ezDocumentObjectManager
	ezDocumentObjectManager (const ezRTTI *pRootType=ezDocumentRoot::GetStaticRTTI())

void	SetDocument (ezDocument *pDocument)

ezDocumentObject *	CreateObject (const ezRTTI *pRtti, ezUuid guid=ezUuid())

void	DestroyObject (ezDocumentObject *pObject)

virtual void	DestroyAllObjects ()

virtual void	GetCreateableTypes (ezHybridArray< const ezRTTI *, 32 > &ref_types) const

void	PatchEmbeddedClassObjects (const ezDocumentObject *pObject) const

const ezDocumentObject *	GetRootObject () const

ezDocumentObject *	GetRootObject ()

const ezDocumentObject *	GetObject (const ezUuid &guid) const

ezDocumentObject *	GetObject (const ezUuid &guid)

const ezDocument *	GetDocument () const

ezDocument *	GetDocument ()

ezStatus	SetValue (ezDocumentObject *pObject, ezStringView sProperty, const ezVariant &newValue, ezVariant index=ezVariant())

ezStatus	InsertValue (ezDocumentObject *pObject, ezStringView sProperty, const ezVariant &newValue, ezVariant index=ezVariant())

ezStatus	RemoveValue (ezDocumentObject *pObject, ezStringView sProperty, ezVariant index=ezVariant())

ezStatus	MoveValue (ezDocumentObject *pObject, ezStringView sProperty, const ezVariant &oldIndex, const ezVariant &newIndex)

void	AddObject (ezDocumentObject pObject, ezDocumentObject pParent, ezStringView sParentProperty, ezVariant index)

void	RemoveObject (ezDocumentObject *pObject)

void	MoveObject (ezDocumentObject pObject, ezDocumentObject pNewParent, ezStringView sParentProperty, ezVariant index)

ezStatus	CanAdd (const ezRTTI pRtti, const ezDocumentObject pParent, ezStringView sParentProperty, const ezVariant &index) const

ezStatus	CanRemove (const ezDocumentObject *pObject) const

ezStatus	CanMove (const ezDocumentObject pObject, const ezDocumentObject pNewParent, ezStringView sParentProperty, const ezVariant &index) const

ezStatus	CanSelect (const ezDocumentObject *pObject) const

bool	IsUnderRootProperty (ezStringView sRootProperty, const ezDocumentObject *pObject) const

bool	IsUnderRootProperty (ezStringView sRootProperty, const ezDocumentObject *pParent, ezStringView sParentProperty) const

bool	IsTemporary (const ezDocumentObject *pObject) const

bool	IsTemporary (const ezDocumentObject *pParent, ezStringView sParentProperty) const

ezSharedPtr< ezDocumentObjectManager::Storage >	SwapStorage (ezSharedPtr< ezDocumentObjectManager::Storage > pNewStorage)

ezSharedPtr< ezDocumentObjectManager::Storage >	GetStorage ()

Public Attributes
ezEvent< const ezVisualGraphObjectManagerEvent & >	m_NodeEvents

Public Attributes inherited from ezDocumentObjectManager
ezCopyOnBroadcastEvent< const ezDocumentObjectStructureEvent & >	m_StructureEvents

ezCopyOnBroadcastEvent< const ezDocumentObjectPropertyEvent & >	m_PropertyEvents

ezEvent< const ezDocumentObjectEvent & >	m_ObjectEvents

Protected Member Functions
bool	CanReachNode (const ezDocumentObject pSource, const ezDocumentObject pTarget, ezSet< const ezDocumentObject * > &Visited) const
	Tests whether pTarget can be reached from pSource by following the pin connections.

bool	WouldConnectionCreateCircle (const ezVisualGraphPin &source, const ezVisualGraphPin &target) const
	Returns true if adding a connection between the two pins would create a circular graph.

ezResult	ResolveConnection (const ezUuid &sourceObject, const ezUuid &targetObject, ezStringView sourcePin, ezStringView targetPin, const ezVisualGraphPin &out_pSourcePin, const ezVisualGraphPin &out_pTargetPin) const

virtual void	GetDynamicPinNames (const ezDocumentObject *pObject, ezStringView sPropertyName, ezStringView sPinName, ezDynamicArray< ezString > &out_Names) const

virtual bool	TryRecreatePins (const ezDocumentObject *pObject)

Detailed Description

Document object manager for node-based visual graphs.

This base class manages the document-side representation of visual graphs, including nodes, pins, and connections. It handles node creation, pin management, connection validation, and provides events for graph changes. Derive from this class to implement specific graph types such as visual shaders, state machines, or visual scripts. The visual representation is handled separately by ezQtVisualGraphScene.

Member Enumeration Documentation

◆ CanConnectResult

enum class ezVisualGraphObjectManager::CanConnectResult

strong

Specifies how many connections are allowed for a pair of pins.

Enumerator
ConnectNever	Pins can't be connected.
Connect1to1	Output pin can have 1 outgoing connection, Input pin can have 1 incoming connection.
Connect1toN	Output pin can have 1 outgoing connection, Input pin can have N incoming connections.
ConnectNto1	Output pin can have N outgoing connections, Input pin can have 1 incoming connection.
ConnectNtoN	Output pin can have N outgoing connections, Input pin can have N incoming connections.

Member Function Documentation

◆ GetNodeCreationTemplates()

void ezVisualGraphObjectManager::GetNodeCreationTemplates ( ezDynamicArray< ezVisualGraphNodeDesc > & out_templates ) const

virtual

For node documents this function is called instead of GetCreateableTypes to get a list for the node creation menu.

See also: ezVisualGraphNodeDesc

Reimplemented in ezVisualShaderNodeManager, and ezVisualScriptNodeManager.

The documentation for this class was generated from the following files:

/home/runner/work/ezEngine/ezEngine/Code/Tools/Libs/ToolsFoundation/VisualGraph/VisualGraphObjectManager.h
/home/runner/work/ezEngine/ezEngine/Code/Tools/Libs/ToolsFoundation/VisualGraph/Implementation/VisualGraphObjectManager.cpp
