ezQtVisualGraphPin Class Reference

#include <Pin.h>

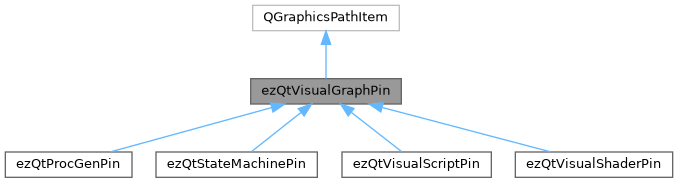

Inheritance diagram for ezQtVisualGraphPin:

Public Member Functions
virtual int	type () const override
void	AddConnection (ezQtVisualGraphConnection *pConnection)
void	RemoveConnection (ezQtVisualGraphConnection *pConnection)
ezArrayPtr< ezQtVisualGraphConnection * >	GetConnections ()
bool	HasAnyConnections () const
const ezVisualGraphPin *	GetPin () const
virtual void	SetPin (const ezVisualGraphPin &pin)
virtual void	ConnectedStateChanged (bool bConnected)
virtual QPointF	GetPinPos () const
virtual QPointF	GetPinDir () const
virtual QRectF	GetPinRect () const
virtual void	UpdateConnections ()
void	SetHighlightState (ezQtVisualGraphPinHighlight state)
void	SetActive (bool bActive)
virtual void	ExtendContextMenu (QMenu &ref_menu)
virtual void	keyPressEvent (QKeyEvent *pEvent) override

Protected Member Functions
virtual bool	UpdatePinColors (const ezColorGammaUB *pOverwriteColor=nullptr)
virtual QVariant	itemChange (GraphicsItemChange change, const QVariant &value) override

Protected Attributes
ezQtVisualGraphPinHighlight	m_HighlightState = ezQtVisualGraphPinHighlight::None
QGraphicsTextItem *	m_pLabel
QPointF	m_PinCenter
bool	m_bTranslatePinName = true

Detailed Description

Qt graphics item representing a pin (connection point) on a visual graph node.

Displays the pin shape, color, and label. Manages visual feedback during connection operations and maintains references to all connections attached to this pin.

---

The documentation for this class was generated from the following files:

• /home/runner/work/ezEngine/ezEngine/Code/Tools/Libs/GuiFoundation/VisualGraph/Pin.h
• /home/runner/work/ezEngine/ezEngine/Code/Tools/Libs/GuiFoundation/VisualGraph/Implementation/Pin.cpp
