ezQtEngineViewWidget Class Reference

Base class for views that show engine output. More...

#include <EngineViewWidget.moc.h>

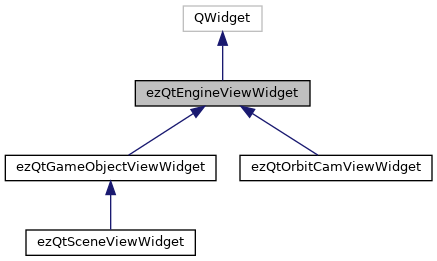

Inheritance diagram for ezQtEngineViewWidget:
Inheritance graph
[legend]

Classes

struct  InteractionContext
 Holds information about the viewport that the user just now hovered over and what object was picked last. More...


Public Member Functions

 ezQtEngineViewWidget (QWidget *pParent, ezQtEngineDocumentWindow *pDocumentWindow, ezEngineViewConfig *pViewConfig)

ezUInt32 GetViewID () const
 Returns the ID of this view.

ezQtEngineDocumentWindow * GetDocumentWindow () const

virtual void SyncToEngine ()
 Sends the redraw message to the engine.

void GetCameraMatrices (ezMat4 &out_mViewMatrix, ezMat4 &out_mProjectionMatrix) const

void UpdateCameraInterpolation ()
 Called every frame to move the camera to its current target (focus on selection, etc.)

void InterpolateCameraTo (const ezVec3 &vPosition, const ezVec3 &vDirection, float fFovOrDim, const ezVec3 *pNewUpDirection=nullptr, bool bImmediate=false)
 The view's camera will be interpolated to the given coordinates.

void SetEnablePicking (bool bEnable)
 If disabled, no picking takes place in this view.

void SetPickTransparent (bool bEnable)

virtual bool IsPickingAgainstSelectionAllowed () const
 Disabled during drag&drop operations, to prevent picking against the dragged object.

void OpenContextMenu (QPoint globalPos)
 Supposed to open a context menu at the given position. Derived classes must implement OnOpenContextMenu and do the actual work there.

const ezObjectPickingResult & PickObject (ezUInt16 uiScreenPosX, ezUInt16 uiScreenPosY) const
 Starts a picking operation for the given pixel position in this view. Returns the most recent picking information in the meantime.

ezResult PickPlane (ezUInt16 uiScreenPosX, ezUInt16 uiScreenPosY, const ezPlane &plane, ezVec3 &out_vPosition) const
 Similar to PickObject, but computes the intersection with the given plane instead.

void HandleViewMessage (const ezEditorEngineViewMsg *pMsg)
 Processes incoming messages from the engine that are meant for this particular view. Mostly picking results.

virtual ezPlane GetFallbackPickingPlane (ezVec3 vPointOnPlane=ezVec3(0)) const
 Returns a plane that can be used for picking, when nothing else is available Orthographic views would typically return their projection planes, perspective views may return the ground plane.

void TakeScreenshot (const char *szOutputPath) const


Static Public Member Functions

static const InteractionContext & GetInteractionContext ()
 Returns the latest information about what viewport the user interacted with.

static void SetInteractionContext (const InteractionContext &ctxt)
 Overrides the InteractionContext with custom values. Mostly useful for injecting procedural user interaction for unit tests.


Public Attributes

ezHybridArray< ezEditorInputContext *, 8 > m_InputContexts
 Add input contexts in the order in which they are supposed to be processed.

ezEngineViewConfig * m_pViewConfig


Static Public Attributes

static ezSizeU32 s_FixedResolution


Protected Member Functions

virtual bool eventFilter (QObject *object, QEvent *event) override
 Used to deactivate shortcuts.

virtual void paintEvent (QPaintEvent *event) override

virtual QPaintEngine * paintEngine () const override

virtual void resizeEvent (QResizeEvent *event) override

virtual void keyPressEvent (QKeyEvent *e) override

virtual void keyReleaseEvent (QKeyEvent *e) override

virtual void mousePressEvent (QMouseEvent *e) override

virtual void mouseReleaseEvent (QMouseEvent *e) override

virtual void mouseMoveEvent (QMouseEvent *e) override

virtual void wheelEvent (QWheelEvent *e) override

virtual void focusOutEvent (QFocusEvent *e) override

virtual void dragEnterEvent (QDragEnterEvent *e) override

virtual void dragLeaveEvent (QDragLeaveEvent *e) override

virtual void dropEvent (QDropEvent *e) override

void EngineViewProcessEventHandler (const ezEditorEngineProcessConnection::Event &e)

void ShowRestartButton (bool bShow)

void RecreateEngineViewport ()

virtual void OnOpenContextMenu (QPoint globalPos)

virtual void HandleMarqueePickingResult (const ezViewMarqueePickingResultMsgToEditor *pMsg)


Protected Attributes

bool m_bUpdatePickingData

bool m_bPickTransparent = true

bool m_bInDragAndDropOperation

ezUInt32 m_uiViewID

ezQtEngineDocumentWindow * m_pDocumentWindow = nullptr

float m_fCameraLerp

float m_fCameraStartFovOrDim

float m_fCameraTargetFovOrDim

ezVec3 m_vCameraStartPosition

ezVec3 m_vCameraTargetPosition

ezVec3 m_vCameraStartDirection

ezVec3 m_vCameraTargetDirection

ezVec3 m_vCameraUp

ezTime m_LastCameraUpdate

QHBoxLayout * m_pMainLayout = nullptr

QPushButton * m_pRestartButton = nullptr

QWidget * m_pViewportWidget = nullptr

ezObjectPickingResult m_LastPickingResult


Static Protected Attributes

static ezUInt32 s_uiNextViewID = 0

static InteractionContext s_InteractionContext


Detailed Description

Base class for views that show engine output.

Member Function Documentation

◆ IsPickingAgainstSelectionAllowed()

virtual bool ezQtEngineViewWidget::IsPickingAgainstSelectionAllowed ( ) const
inlinevirtual

Disabled during drag&drop operations, to prevent picking against the dragged object.

Reimplemented in ezQtSceneViewWidget.

◆ SetEnablePicking()

void ezQtEngineViewWidget::SetEnablePicking ( bool  bEnable)

If disabled, no picking takes place in this view.

Disabled in views that do not need picking (material asset, particle asset, etc.) and when the mouse is outside a view, to prevent useless picking.

◆ SyncToEngine()

void ezQtEngineViewWidget::SyncToEngine ( )
virtual

Sends the redraw message to the engine.

Reimplemented in ezQtGameObjectViewWidget, and ezQtOrbitCamViewWidget.

◆ UpdateCameraInterpolation()

void ezQtEngineViewWidget::UpdateCameraInterpolation ( )

Called every frame to move the camera to its current target (focus on selection, etc.)

Todo:
Hard coded up vector

Member Data Documentation

◆ s_FixedResolution

ezSizeU32 ezQtEngineViewWidget::s_FixedResolution
static

If this is set to a non-zero value, all rendering will use a fixed resolution, instead of the actual window size. This is useful for unit tests, to guarantee a specific output size, to be able to do image comparisons.

The documentation for this class was generated from the following files:
