#include <ParticleTypeTrail.h>

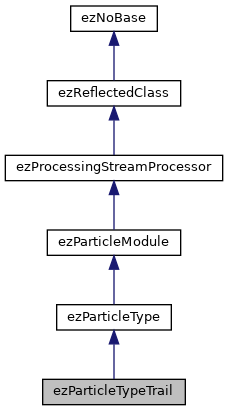

Inheritance diagram for ezParticleTypeTrail:

[legend]

Classes
struct	TrailData

Public Member Functions
virtual void	CreateRequiredStreams () override

virtual void	ExtractTypeRenderData (ezMsgExtractRenderData &ref_msg, const ezTransform &instanceTransform) const override

virtual float	GetMaxParticleRadius (float fParticleSize) const override

Public Member Functions inherited from ezParticleModule
virtual void	QueryOptionalStreams ()

void	Reset (ezParticleSystemInstance *pOwner)

virtual void	OnFinalize ()
	Called after everything is set up.

ezParticleSystemInstance *	GetOwnerSystem ()

const ezParticleSystemInstance *	GetOwnerSystem () const

ezParticleEffectInstance *	GetOwnerEffect () const

virtual void	RequestRequiredWorldModulesForCache (ezParticleWorldModule *pParticleModule)

Public Member Functions inherited from ezProcessingStreamProcessor
	ezProcessingStreamProcessor ()
	Base constructor.

virtual	~ezProcessingStreamProcessor ()
	Base destructor.

Public Member Functions inherited from ezReflectedClass
virtual const ezRTTI *	GetDynamicRTTI () const

bool	IsInstanceOf (const ezRTTI *pType) const
	Returns whether the type of this instance is of the given type or derived from it.

template<typename T >
EZ_ALWAYS_INLINE bool	IsInstanceOf () const
	Returns whether the type of this instance is of the given type or derived from it.

Static Public Member Functions
static ezUInt16	ComputeTrailPointBucketSize (ezUInt16 uiMaxTrailPoints)
	Computes the memory bucket size needed for storing trail points.

Static Public Member Functions inherited from ezNoBase
static const ezRTTI *	GetStaticRTTI ()

Public Attributes
ezEnum< ezParticleTypeRenderMode >	m_RenderMode

ezUInt16	m_uiMaxPoints

ezTime	m_UpdateDiff

ezTexture2DResourceHandle	m_hTexture

ezEnum< ezParticleTextureAtlasType >	m_TextureAtlasType

ezUInt8	m_uiNumSpritesX = 1

ezUInt8	m_uiNumSpritesY = 1

ezTempHashedString	m_sTintColorParameter

ezEnum< ezParticleLightingMode >	m_LightingMode

float	m_fNormalCurvature = 0.5f

float	m_fLightDirectionality = 0.5f

ezMaterialResourceHandle	m_hCustomMaterial

Public Attributes inherited from ezProcessingStreamProcessor
float	m_fPriority = 0.0f
	Used for sorting processors, to ensure a certain order. Lower priority == executed first.

Protected Member Functions
virtual void	InitializeElements (ezUInt64 uiStartIndex, ezUInt64 uiNumElements) override
	This method needs to be implemented in order to initialize new elements to specific values.

virtual void	Process (ezUInt64 uiNumElements) override
	The actual method which processes the data, will be called with the number of elements to process.

void	OnParticleDeath (const ezStreamGroupElementRemovedEvent &e)

ezUInt16	GetIndexForTrailPoints ()

const ezVec4 *	GetTrailPointsPositions (ezUInt32 index) const

ezVec4 *	GetTrailPointsPositions (ezUInt32 index)

Protected Member Functions inherited from ezParticleType
virtual void	StepParticleSystem (const ezTime &tDiff, ezUInt32 uiNumNewParticles)

Protected Member Functions inherited from ezParticleModule
virtual void	OnReset ()
	Called by Reset() to perform custom cleanup.

void	CreateStream (const char szName, ezProcessingStream::DataType Type, ezProcessingStream *ppStream, bool bWillInitializeStream)

virtual ezResult	UpdateStreamBindings () final override
	Internal method which needs to be implemented, gets the concrete stream bindings. This is called every time the streams are resized. Implementations should check that their required streams exist and are of the correct data types.

ezRandom &	GetRNG () const

Protected Attributes
ezProcessingStream *	m_pStreamLifeTime = nullptr

ezProcessingStream *	m_pStreamPosition = nullptr

ezProcessingStream *	m_pStreamSize = nullptr

ezProcessingStream *	m_pStreamColor = nullptr

ezProcessingStream *	m_pStreamTrailData = nullptr

ezProcessingStream *	m_pStreamVariation = nullptr

ezTime	m_LastSnapshot

ezUInt8	m_uiCurFirstIndex = 0

float	m_fSnapshotFraction

ezArrayPtr< ezBaseParticleShaderData >	m_BaseParticleData

ezArrayPtr< ezTrailParticleShaderData >	m_TrailParticleData

ezArrayPtr< ezVec4 >	m_TrailPointsShared

ezDynamicArray< ezTrailParticlePointsData64, ezAlignedAllocatorWrapper >	m_TrailPoints64
	Storage for trail points.

ezDynamicArray< ezUInt16 >	m_FreeTrailData
	Freelist for trail data allocation.

Protected Attributes inherited from ezParticleType
ezTime	m_TimeDiff

ezUInt64	m_uiLastExtractedFrame

Protected Attributes inherited from ezProcessingStreamProcessor
ezProcessingStreamGroup *	m_pStreamGroup = nullptr
	Back pointer to the stream group - will be set to the owner stream group when adding the stream processor to the group. Can be used to get stream pointers in UpdateStreamBindings();.

Friends
class	ezParticleTypeTrailFactory

Additional Inherited Members
Static Protected Member Functions inherited from ezParticleType
static ezUInt32	ComputeSortingKey (ezParticleTypeRenderMode::Enum mode, ezUInt64 uiResource1Hash, ezUInt64 uiResource2Hash)

Detailed Description

Renders particles as textured ribbons following their movement path.

Trails record particle positions over time and render a ribbon connecting the trail points. The trail length is determined by the maximum number of points and the update interval. Older trail points fade out automatically. Trails can be lit or fullbright and support texture atlases.

Member Function Documentation

◆ CreateRequiredStreams()

void ezParticleTypeTrail::CreateRequiredStreams ( )

overridevirtual

Implements ezParticleModule.

◆ ExtractTypeRenderData()

void ezParticleTypeTrail::ExtractTypeRenderData	(	ezMsgExtractRenderData &	ref_msg,
		const ezTransform &	instanceTransform
	)		const

overridevirtual

Generates render data for all active particles.

Called during render data extraction to create render objects for this particle type.

Todo:: This loop could be done without a condition

Implements ezParticleType.

◆ GetMaxParticleRadius()

virtual float ezParticleTypeTrail::GetMaxParticleRadius ( float fParticleSize ) const

inlineoverridevirtual

Returns an approximation of the maximum trail radius.

This is an estimate based on particle size and maximum trail length. Inspecting actual trail positions would be more accurate but costly.

Reimplemented from ezParticleType.

◆ InitializeElements()

void ezParticleTypeTrail::InitializeElements	(	ezUInt64	uiStartIndex,
		ezUInt64	uiNumElements
	)

overrideprotectedvirtual

This method needs to be implemented in order to initialize new elements to specific values.

Reimplemented from ezParticleType.

◆ Process()

void ezParticleTypeTrail::Process ( ezUInt64 uiNumElements )

overrideprotectedvirtual

The actual method which processes the data, will be called with the number of elements to process.

Implements ezProcessingStreamProcessor.

The documentation for this class was generated from the following files:

/home/runner/work/ezEngine/ezEngine/Code/EnginePlugins/ParticlePlugin/Type/Trail/ParticleTypeTrail.h
/home/runner/work/ezEngine/ezEngine/Code/EnginePlugins/ParticlePlugin/Type/Trail/ParticleTypeTrail.cpp
