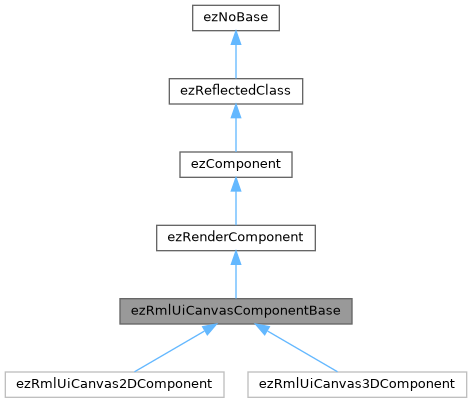

Inheritance diagram for ezRmlUiCanvasComponentBase:

[legend]

Public Member Functions
ezRmlUiCanvasComponentBase &	operator= (ezRmlUiCanvasComponentBase &&rhs)

virtual void	SerializeComponent (ezWorldWriter &inout_stream) const override
	Override this to save the current state of the component to the given stream.

virtual void	DeserializeComponent (ezWorldReader &inout_stream) override
	Override this to load the current state of the component from the given stream.

virtual void	Initialize () override
	Can be overridden for basic initialization that depends on a valid hierarchy and position.

virtual void	Deinitialize () override
	This method is called before the component is destroyed. A derived type can override this method to do common de-initialization work.

virtual void	OnDeactivated () override
	This method is called when the component gets deactivated.

virtual void	Update ()

virtual bool	ReceiveInput (const ezVec2 &vMousePosInsideCanvas, ezRmlUiInputSnapshot input)

	EZ_ADD_RESOURCEHANDLE_ACCESSORS_WITH_SETTER (RmlResource, m_hResource, SetRmlResource)

void	SetRmlResource (const ezRmlUiResourceHandle &hResource)

const ezRmlUiResourceHandle &	GetRmlResource () const

void	SetAutobindBlackboards (bool bAutobind)
	Look for a blackboard component on the owner object and its parent and bind their blackboards during initialization of this component.

bool	GetAutobindBlackboards () const

void	SetSendEventMessage (bool bSendEventMessage)
	If enabled, the component will send an ezMsgRmlUiEventMessage for each RmlUI event that is triggered on the context.

bool	GetSendEventMessage () const

void	SetOnDemandUpdate (bool bOnDemandUpdate)

bool	GetOnDemandUpdate () const

ezUInt32	AddDataBinding (ezUniquePtr< ezRmlUiDataBinding > &&pDataBinding)

void	RemoveDataBinding (ezUInt32 uiDataBindingIndex)

ezUInt32	AddBlackboardBinding (const ezSharedPtr< ezBlackboard > &pBlackboard)
	Adds the given blackboard as data binding. The name of the board is used as model name for the binding.

void	RemoveBlackboardBinding (ezUInt32 uiDataBindingIndex)

ezRmlUiContext *	GetOrCreateRmlContext ()

ezRmlUiContext *	GetRmlContext ()

virtual ezResult	GetLocalBounds (ezBoundingBoxSphere &ref_bounds, bool &ref_bAlwaysVisible, ezMsgUpdateLocalBounds &ref_msg) override
	Called by ezRenderComponent::OnUpdateLocalBounds().

Public Member Functions inherited from ezRenderComponent
void	TriggerLocalBoundsUpdate ()
	Call this when some value was modified that affects the size of the local bounding box and it should be recomputed.

void	QueueLocalBoundsUpdate ()
	Like TriggerLocalBoundsUpdate(), but defers the update and is safe to call from async update functions.

EZ_ALWAYS_INLINE ezUInt32	GetUniqueIdForRendering () const
	Computes a unique ID for the given component, that is usually given to the renderer to distinguish objects.

Public Member Functions inherited from ezComponent
void	SetActiveFlag (bool bEnabled)
	Sets the active flag of the component, which affects its active state.

bool	GetActiveFlag () const
	Checks whether the 'active flag' is set on this component. Note that this does not mean that the component is also 'active'.

bool	IsActive () const
	Checks whether this component is in an active state.

bool	IsActiveAndInitialized () const
	Returns whether this component is active and initialized.

bool	IsActiveAndSimulating () const
	Whether the component is currently active and simulation has been started as well.

ezComponentManagerBase *	GetOwningManager ()
	Returns the corresponding manager for this component.

const ezComponentManagerBase *	GetOwningManager () const
	Returns the corresponding manager for this component.

ezGameObject *	GetOwner ()
	Returns the owner game object if the component is attached to one or nullptr.

const ezGameObject *	GetOwner () const
	Returns the owner game object if the component is attached to one or nullptr.

ezWorld *	GetWorld ()
	Returns the corresponding world for this component.

const ezWorld *	GetWorld () const
	Returns the corresponding world for this component.

ezComponentHandle	GetHandle () const
	Returns a handle to this component.

ezUInt32	GetUniqueID () const
	Returns the unique id for this component.

void	SetUniqueID (ezUInt32 uiUniqueID)
	Sets the unique id for this component.

void	EnsureInitialized ()
	Ensures that the component is initialized. Must only be called from another component's Initialize callback.

void	EnsureSimulationStarted ()
	Ensures that the OnSimulationStarted method has been called. Must only be called from another component's OnSimulationStarted callback.

EZ_ALWAYS_INLINE bool	SendMessage (ezMessage &ref_msg)
	Sends a message to this component.

EZ_ALWAYS_INLINE bool	SendMessage (ezMessage &ref_msg) const

void	PostMessage (const ezMessage &msg, ezTime delay=ezTime::MakeZero(), ezObjectMsgQueueType::Enum queueType=ezObjectMsgQueueType::NextFrame) const
	Queues the message for the given phase. The message is processed after the given delay in the corresponding phase.

virtual bool	HandlesMessage (const ezMessage &msg) const
	Returns whether the given Message is handled by this component.

void	SetUserFlag (ezUInt8 uiFlagIndex, bool bSet)
	Be careful to check which flags may already be in use by base classes.

bool	GetUserFlag (ezUInt8 uiFlagIndex) const
	Retrieves a custom flag. Index must be between 0 and 7.

void	SetCreatedByPrefab ()
	Adds ezObjectFlags::CreatedByPrefab to the component. See the flag for details.

bool	WasCreatedByPrefab () const
	Checks whether the ezObjectFlags::CreatedByPrefab flag is set on this component.

void	DeleteComponent ()
	Deletes this component. Note that the component will be invalidated first and the actual deletion is postponed.

Public Member Functions inherited from ezReflectedClass
virtual const ezRTTI *	GetDynamicRTTI () const

bool	IsInstanceOf (const ezRTTI *pType) const
	Returns whether the type of this instance is of the given type or derived from it.

template<typename T >
EZ_ALWAYS_INLINE bool	IsInstanceOf () const
	Returns whether the type of this instance is of the given type or derived from it.

Protected Member Functions
virtual void	OnMsgReload (ezMsgRmlUiReload &msg)

virtual void	OnMsgExtractRenderData (ezMsgExtractRenderData &msg) const =0

void	UpdateCachedValues ()

void	UpdateAutobinding ()

void	UpdateEventHandler ()

void	EventHandler (const ezHashedString &sIdentifier, Rml::Event &event)

Protected Member Functions inherited from ezRenderComponent
virtual void	OnActivated () override
	This method is called when the component gets activated.

void	OnUpdateLocalBounds (ezMsgUpdateLocalBounds &msg)

void	InvalidateCachedRenderData ()

Protected Member Functions inherited from ezComponent
	ezComponent ()
	Keep the constructor private or protected in derived classes, so it cannot be called manually.

bool	IsDynamic () const
	Returns whether this component is dynamic and thus can only be attached to dynamic game objects.

virtual ezWorldModuleTypeId	GetTypeId () const =0

virtual ezComponentMode::Enum	GetMode () const =0

virtual void	OnSimulationStarted ()
	This method is called once for active components, at the start of the next world update, but only when the world is simulated.

void	EnableUnhandledMessageHandler (bool enable)
	By default disabled. Enable to have OnUnhandledMessage() called for every unhandled message.

virtual bool	OnUnhandledMessage (ezMessage &msg, bool bWasPostedMsg)
	When EnableUnhandledMessageHandler() was activated, this is called for all messages for which there is no dedicated message handler.

virtual bool	OnUnhandledMessage (ezMessage &msg, bool bWasPostedMsg) const
	When EnableUnhandledMessageHandler() was activated, this is called for all messages for which there is no dedicated message handler.

bool	IsInitialized () const

bool	IsInitializing () const

bool	IsSimulationStarted () const

Protected Attributes
ezRmlUiResourceHandle	m_hResource

ezEvent< constezResourceEvent &, ezMutex >::Unsubscriber	m_ResourceEventUnsubscriber

ezVec2U32	m_vSize = ezVec2U32::MakeZero()

ezVec2U32	m_vReferenceResolution = ezVec2U32::MakeZero()

bool	m_bAutobindBlackboards = false

bool	m_bSendEventMessage = false

bool	m_bOnDemandUpdate = true

bool	m_bNeedsUpdate = false

ezUInt16	m_uiContextID = 0

ezRmlUiContext *	m_pContext = nullptr

ezRmlUiInputProvider	m_InputProvider

ezDynamicArray< ezUniquePtr< ezRmlUiDataBinding > >	m_DataBindings

ezDynamicArray< ezUInt32 >	m_AutoBindings

ezEventMessageSender< ezMsgRmlUiEvent >	m_EventMessageSender

Protected Attributes inherited from ezComponent
const ezRTTI *	m_pMessageDispatchType = nullptr
	Messages will be dispatched to this type. Default is what GetDynamicRTTI() returns, can be redirected if necessary.

Additional Inherited Members
Static Public Member Functions inherited from ezRenderComponent
static ezUInt32	GetUniqueIdForRendering (const ezComponent &component)
	Computes a unique ID for the given component, that is usually given to the renderer to distinguish objects.

Static Public Member Functions inherited from ezNoBase
static const ezRTTI *	GetStaticRTTI ()

Member Function Documentation

◆ Deinitialize()

void ezRmlUiCanvasComponentBase::Deinitialize ( )

overridevirtual

This method is called before the component is destroyed. A derived type can override this method to do common de-initialization work.

This function is always called before destruction, even if the component is currently not active. The default implementation checks whether the component is currently active and will ensure OnDeactivated() gets called if necessary. For typical game code, prefer to use OnDeactivated().

See also: OnActivated(), OnDeactivated(), Initialize(), Deinitialize(), OnSimulationStarted()

Reimplemented from ezComponent.

Reimplemented in ezRmlUiCanvas2DComponent.

◆ DeserializeComponent()

void ezRmlUiCanvasComponentBase::DeserializeComponent ( ezWorldReader & inout_stream )

overridevirtual

Override this to load the current state of the component from the given stream.

The active state will be automatically serialized. The 'initialized' state is not serialized, all components will be initialized after creation, even if they were already in an initialized state when they were serialized.

Reimplemented from ezComponent.

Reimplemented in ezRmlUiCanvas2DComponent, and ezRmlUiCanvas3DComponent.

◆ GetLocalBounds()

ezResult ezRmlUiCanvasComponentBase::GetLocalBounds	(	ezBoundingBoxSphere &	out_bounds,
		bool &	out_bAlwaysVisible,
		ezMsgUpdateLocalBounds &	ref_msg
	)

overridevirtual

Called by ezRenderComponent::OnUpdateLocalBounds().

If EZ_SUCCESS is returned, out_bounds and out_bAlwaysVisible will be integrated into the ezMsgUpdateLocalBounds ref_msg, otherwise the out values are simply ignored.

Implements ezRenderComponent.

◆ Initialize()

void ezRmlUiCanvasComponentBase::Initialize ( )

overridevirtual

Can be overridden for basic initialization that depends on a valid hierarchy and position.

All trivial initialization should be done in the constructor. For typical game code, you should prefer to use OnSimulationStarted(). This method is called once for every component, after creation but only at the start of the next world update. Therefore the global position has already been computed and the owner ezGameObject is set. Contrary to OnActivated() and OnSimulationStarted(), this function is always called for all components.

See also: OnActivated(), OnDeactivated(), Initialize(), Deinitialize(), OnSimulationStarted()

Reimplemented from ezComponent.

◆ OnDeactivated()

void ezRmlUiCanvasComponentBase::OnDeactivated ( )

overridevirtual

This method is called when the component gets deactivated.

Upon destruction, a component that is active first gets deactivated. Therefore OnDeactivated() should be used for typical game code cleanup.

See also: OnActivated(), OnDeactivated(), Initialize(), Deinitialize(), OnSimulationStarted()

Reimplemented from ezRenderComponent.

Reimplemented in ezRmlUiCanvas3DComponent.

◆ SerializeComponent()

void ezRmlUiCanvasComponentBase::SerializeComponent ( ezWorldWriter & inout_stream ) const

overridevirtual

Override this to save the current state of the component to the given stream.

Reimplemented from ezComponent.

Reimplemented in ezRmlUiCanvas2DComponent, and ezRmlUiCanvas3DComponent.

The documentation for this class was generated from the following files:

/home/runner/work/ezEngine/ezEngine/Code/EnginePlugins/RmlUiPlugin/Components/RmlUiCanvasComponentBase.h
/home/runner/work/ezEngine/ezEngine/Code/EnginePlugins/RmlUiPlugin/Components/Implementation/RmlUiCanvasComponentBase.cpp
