ezMessage Class Reference

Base class for all message types. Each message type has it's own id which is used to dispatch messages efficiently. More...

#include <Message.h>

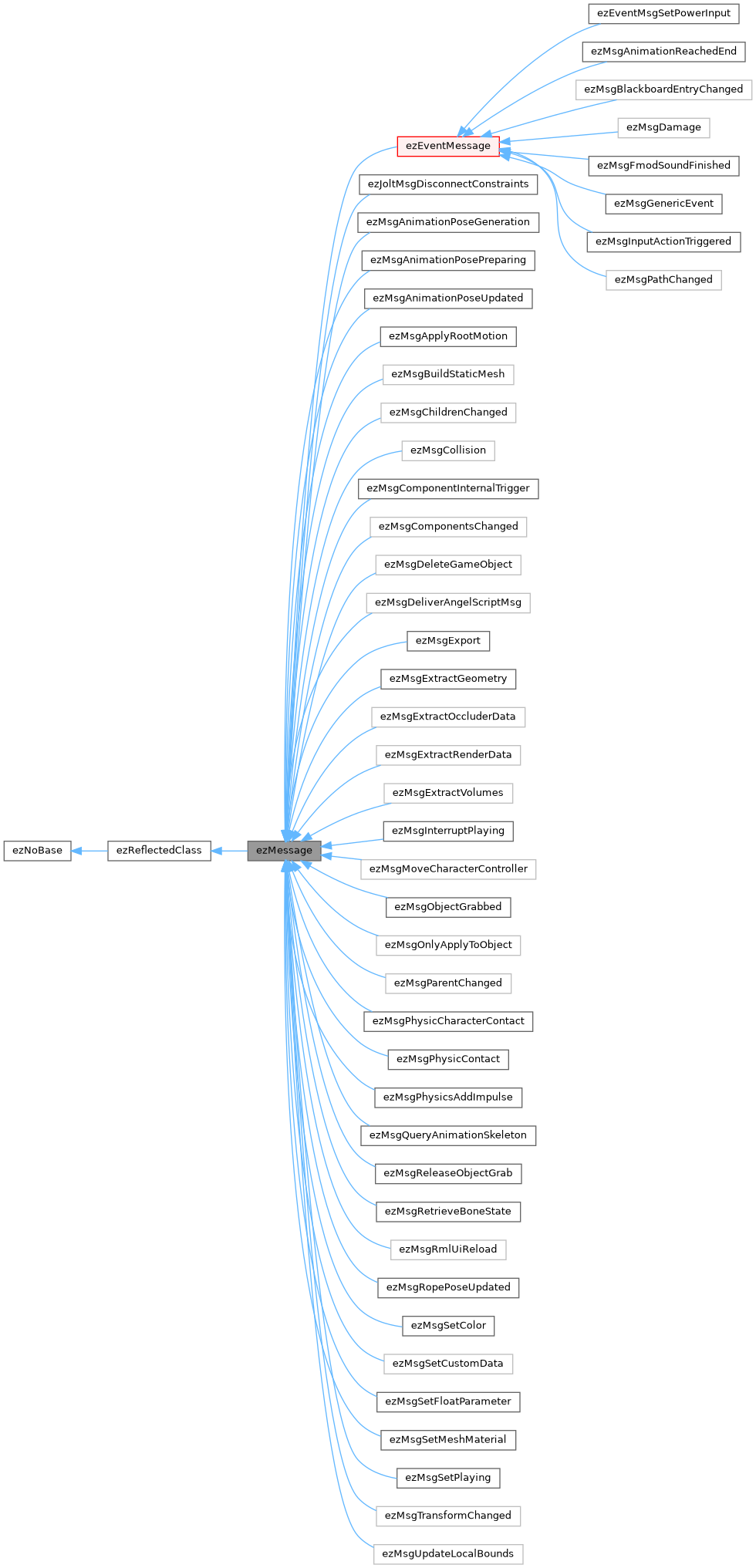

Inheritance diagram for ezMessage:

Public Member Functions
virtual ezInt32	GetSortingKey () const
	Derived message types can override this method to influence sorting order. Smaller keys are processed first.
EZ_ALWAYS_INLINE ezMessageId	GetId () const
	Returns the id for this message type.
EZ_ALWAYS_INLINE ezUInt16	GetSize () const
	Returns the size in byte of this message.
EZ_ALWAYS_INLINE ezUInt64	GetHash () const
	Calculates a hash of the message.
virtual void	Serialize (ezStreamWriter &inout_stream) const
	Implement this for efficient transmission across process boundaries (e.g. network transfer etc.) More...
virtual void	Deserialize (ezStreamReader &inout_stream, ezUInt8 uiTypeVersion)
Public Member Functions inherited from ezReflectedClass
virtual const ezRTTI *	GetDynamicRTTI () const
bool	IsInstanceOf (const ezRTTI *pType) const
	Returns whether the type of this instance is of the given type or derived from it.
template<typename T >
EZ_ALWAYS_INLINE bool	IsInstanceOf () const
	Returns whether the type of this instance is of the given type or derived from it.

Static Public Member Functions
static void	PackageForTransfer (const ezMessage &msg, ezStreamWriter &inout_stream)
	Writes msg to stream in such a way that ReplicatePackedMessage() can restore it even in another process. More...
static ezUniquePtr< ezMessage >	ReplicatePackedMessage (ezStreamReader &inout_stream)
	Restores a message that was written by PackageForTransfer() More...
Static Public Member Functions inherited from ezNoBase
static const ezRTTI *	GetStaticRTTI ()

Protected Member Functions
	ezMessage (size_t messageSize)

Static Protected Member Functions
static EZ_ALWAYS_INLINE ezMessageId	GetNextMsgId ()

Protected Attributes
ezMessageId	m_Id
ezUInt16	m_uiSize

Static Protected Attributes
static ezMessageId	s_NextMsgId = 0

Detailed Description

Base class for all message types. Each message type has it's own id which is used to dispatch messages efficiently.

To implement a custom message type derive from ezMessage and add EZ_DECLARE_MESSAGE_TYPE to the type declaration. EZ_IMPLEMENT_MESSAGE_TYPE needs to be added to a cpp.

See also

ezRTTI

For the automatic cloning to work and for efficiency the messages must only contain simple data members. For instance, everything that allocates internally (strings, arrays) should be avoided. Instead, such objects should be located somewhere else and the message should only contain pointers to the data.

Member Function Documentation

Deserialize()

virtual void ezMessage::Deserialize ( ezStreamReader &  inout_stream, ezUInt8  uiTypeVersion  )

inlinevirtual

See also

Serialize()

Reimplemented in ezMsgSetCustomData, ezMsgSetColor, and ezMsgSetMeshMaterial.

PackageForTransfer()

void ezMessage::PackageForTransfer ( const ezMessage &  msg, ezStreamWriter &  inout_stream  )

static

Writes msg to stream in such a way that ReplicatePackedMessage() can restore it even in another process.

For this to work the message type has to have the Serialize and Deserialize functions implemented.

Note

This is NOT used by ezWorld. Within the same process messages can be dispatched more efficiently.

ReplicatePackedMessage()

ezUniquePtr< ezMessage > ezMessage::ReplicatePackedMessage ( ezStreamReader &  inout_stream )

static

Restores a message that was written by PackageForTransfer()

If the message type is unknown, nullptr is returned.

See also

PackageForTransfer()

Serialize()

virtual void ezMessage::Serialize ( ezStreamWriter &  inout_stream ) const

inlinevirtual

Implement this for efficient transmission across process boundaries (e.g. network transfer etc.)

If the message is only ever sent within the same process between nodes of the same ezWorld, this does not need to be implemented.

Note that PackageForTransfer() will automatically include the ezRTTI type version into the stream and ReplicatePackedMessage() will pass this into Deserialize(). Use this if the serialization changes.

Reimplemented in ezMsgSetCustomData, ezMsgSetColor, and ezMsgSetMeshMaterial.

---

The documentation for this class was generated from the following files:

• /home/runner/work/ezEngine/ezEngine/Code/Engine/Foundation/Communication/Message.h
• /home/runner/work/ezEngine/ezEngine/Code/Engine/Foundation/Communication/Implementation/Message.cpp
