Base class for dynamic light components. More...

#include <LightComponent.h>

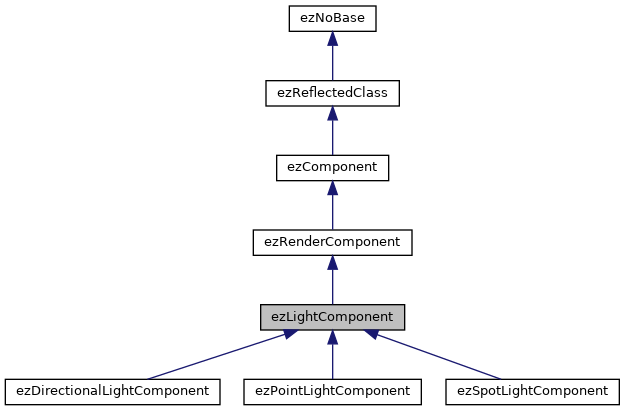

Inheritance diagram for ezLightComponent:

[legend]

Public Member Functions
virtual void	SerializeComponent (ezWorldWriter &inout_stream) const override
	Override this to save the current state of the component to the given stream.

virtual void	DeserializeComponent (ezWorldReader &inout_stream) override
	Override this to load the current state of the component from the given stream. More...

void	SetUsingColorTemperature (bool bUseColorTemperature)
	Used to enable kelvin color values. This is a physical representation of light color using. for more detail: https://wikipedia.org/wiki/Color_temperature.

bool	GetUsingColorTemperature () const

void	SetTemperature (ezUInt32 uiTemperature)

ezUInt32	GetTemperature () const

void	SetLightColor (ezColorGammaUB lightColor)

ezColorGammaUB	GetLightColor () const

ezColorGammaUB	GetEffectiveColor () const

void	SetIntensity (float fIntensity)
	Sets the brightness of the light source.

float	GetIntensity () const

void	SetSpecularMultiplier (float fSpecularMultiplier)

float	GetSpecularMultiplier () const

void	SetCastShadows (bool bCastShadows)
	Sets whether the light source shall cast dynamic shadows.

bool	GetCastShadows () const

void	SetTransparentShadows (bool bShadows)
	Sets whether transparent objects should cast shadows (emulated through dithering).

bool	GetTransparentShadows () const

void	SetPenumbraSize (float fPenumbraSize)
	Sets the fuzziness of the shadow edges.

float	GetPenumbraSize () const

void	SetSlopeBias (float fShadowBias)
	Allows to tweak how dynamic shadows are applied to reduce artifacts.

float	GetSlopeBias () const

void	SetConstantBias (float fShadowBias)
	Allows to tweak how dynamic shadows are applied to reduce artifacts.

float	GetConstantBias () const

void	OnMsgSetColor (ezMsgSetColor &ref_msg)

Public Member Functions inherited from ezRenderComponent
virtual ezResult	GetLocalBounds (ezBoundingBoxSphere &out_bounds, bool &out_bAlwaysVisible, ezMsgUpdateLocalBounds &ref_msg)=0
	Called by ezRenderComponent::OnUpdateLocalBounds(). More...

void	TriggerLocalBoundsUpdate ()
	Call this when some value was modified that affects the size of the local bounding box and it should be recomputed.

EZ_ALWAYS_INLINE ezUInt32	GetUniqueIdForRendering (ezUInt32 uiInnerIndex=0, ezUInt32 uiInnerIndexShift=24) const
	Computes a unique ID for the given component, that is usually given to the renderer to distinguish objects.

Public Member Functions inherited from ezComponent
void	SetActiveFlag (bool bEnabled)
	Sets the active flag of the component, which affects its active state. More...

bool	GetActiveFlag () const
	Checks whether the 'active flag' is set on this component. Note that this does not mean that the component is also 'active'. More...

bool	IsActive () const
	Checks whether this component is in an active state. More...

bool	IsActiveAndInitialized () const
	Returns whether this component is active and initialized. More...

bool	IsActiveAndSimulating () const
	Whether the component is currently active and simulation has been started as well. More...

ezComponentManagerBase *	GetOwningManager ()
	Returns the corresponding manager for this component.

const ezComponentManagerBase *	GetOwningManager () const
	Returns the corresponding manager for this component.

ezGameObject *	GetOwner ()
	Returns the owner game object if the component is attached to one or nullptr.

const ezGameObject *	GetOwner () const
	Returns the owner game object if the component is attached to one or nullptr.

ezWorld *	GetWorld ()
	Returns the corresponding world for this component.

const ezWorld *	GetWorld () const
	Returns the corresponding world for this component.

ezComponentHandle	GetHandle () const
	Returns a handle to this component.

ezUInt32	GetUniqueID () const
	Returns the unique id for this component.

void	SetUniqueID (ezUInt32 uiUniqueID)
	Sets the unique id for this component.

void	EnsureInitialized ()
	Ensures that the component is initialized. Must only be called from another component's Initialize callback.

void	EnsureSimulationStarted ()
	Ensures that the OnSimulationStarted method has been called. Must only be called from another component's OnSimulationStarted callback.

EZ_ALWAYS_INLINE bool	SendMessage (ezMessage &ref_msg)
	Sends a message to this component.

EZ_ALWAYS_INLINE bool	SendMessage (ezMessage &ref_msg) const

void	PostMessage (const ezMessage &msg, ezTime delay=ezTime::MakeZero(), ezObjectMsgQueueType::Enum queueType=ezObjectMsgQueueType::NextFrame) const
	Queues the message for the given phase. The message is processed after the given delay in the corresponding phase.

virtual bool	HandlesMessage (const ezMessage &msg) const
	Returns whether the given Message is handled by this component.

void	SetUserFlag (ezUInt8 uiFlagIndex, bool bSet)
	Be careful to check which flags may already be in use by base classes.

bool	GetUserFlag (ezUInt8 uiFlagIndex) const
	Retrieves a custom flag. Index must be between 0 and 7.

void	SetCreatedByPrefab ()
	Adds ezObjectFlags::CreatedByPrefab to the component. See the flag for details.

bool	WasCreatedByPrefab () const
	Checks whether the ezObjectFlags::CreatedByPrefab flag is set on this component.

Public Member Functions inherited from ezReflectedClass
virtual const ezRTTI *	GetDynamicRTTI () const

bool	IsInstanceOf (const ezRTTI *pType) const
	Returns whether the type of this instance is of the given type or derived from it.

template<typename T >
EZ_ALWAYS_INLINE bool	IsInstanceOf () const
	Returns whether the type of this instance is of the given type or derived from it.

Static Public Member Functions
static float	CalculateEffectiveRange (float fRange, float fIntensity)
	Calculates how far a light source would shine given the specified range and intensity. More...

static float	CalculateScreenSpaceSize (const ezBoundingSphere &sphere, const ezCamera &camera)
	Calculates how large on screen (relative height) the light source would be.

Static Public Member Functions inherited from ezRenderComponent
static ezUInt32	GetUniqueIdForRendering (const ezComponent &component, ezUInt32 uiInnerIndex=0, ezUInt32 uiInnerIndexShift=24)
	Computes a unique ID for the given component, that is usually given to the renderer to distinguish objects.

Static Public Member Functions inherited from ezNoBase
static const ezRTTI *	GetStaticRTTI ()

Protected Member Functions
float	CalculateShadowFadeOut (const ezBoundingSphere &sphere, float fShadowFadeOutRange, const ezCamera &camera, float &out_fShadowScreenSize) const

Protected Member Functions inherited from ezRenderComponent
virtual void	Deinitialize () override
	This method is called before the component is destroyed. A derived type can override this method to do common de-initialization work. More...

virtual void	OnActivated () override
	This method is called when the component gets activated. More...

virtual void	OnDeactivated () override
	This method is called when the component gets deactivated. More...

void	OnUpdateLocalBounds (ezMsgUpdateLocalBounds &msg)

void	InvalidateCachedRenderData ()

Protected Member Functions inherited from ezComponent
	ezComponent ()
	Keep the constructor private or protected in derived classes, so it cannot be called manually.

bool	IsDynamic () const
	Returns whether this component is dynamic and thus can only be attached to dynamic game objects.

virtual ezWorldModuleTypeId	GetTypeId () const =0

virtual ezComponentMode::Enum	GetMode () const =0

virtual void	Initialize ()
	Can be overridden for basic initialization that depends on a valid hierarchy and position. More...

virtual void	OnSimulationStarted ()
	This method is called once for active components, at the start of the next world update, but only when the world is simulated. More...

void	EnableUnhandledMessageHandler (bool enable)
	By default disabled. Enable to have OnUnhandledMessage() called for every unhandled message.

virtual bool	OnUnhandledMessage (ezMessage &msg, bool bWasPostedMsg)
	When EnableUnhandledMessageHandler() was activated, this is called for all messages for which there is no dedicated message handler. More...

virtual bool	OnUnhandledMessage (ezMessage &msg, bool bWasPostedMsg) const
	When EnableUnhandledMessageHandler() was activated, this is called for all messages for which there is no dedicated message handler. More...

bool	IsInitialized () const

bool	IsInitializing () const

bool	IsSimulationStarted () const

Protected Attributes
ezColorGammaUB	m_LightColor = ezColor::White

ezUInt32	m_uiTemperature = 6550

float	m_fIntensity = 10.0f

float	m_fSpecularMultiplier = 1.0f

float	m_fPenumbraSize = 0.1f

float	m_fSlopeBias = 0.25f

float	m_fConstantBias = 0.1f

bool	m_bCastShadows = false

bool	m_bTransparentShadows = false

bool	m_bUseColorTemperature = false

Protected Attributes inherited from ezComponent
const ezRTTI *	m_pMessageDispatchType = nullptr
	Messages will be dispatched to this type. Default is what GetDynamicRTTI() returns, can be redirected if necessary.

Detailed Description

Base class for dynamic light components.

Member Function Documentation

◆ CalculateEffectiveRange()

float ezLightComponent::CalculateEffectiveRange	(	float	fRange,
		float	fIntensity
	)

static

Calculates how far a light source would shine given the specified range and intensity.

If fRange is zero, the range needed for the given intensity is returned. Otherwise the smaller value of that and fRange is returned.

◆ DeserializeComponent()

void ezLightComponent::DeserializeComponent ( ezWorldReader & inout_stream )

overridevirtual

Override this to load the current state of the component from the given stream.

The active state will be automatically serialized. The 'initialized' state is not serialized, all components will be initialized after creation, even if they were already in an initialized state when they were serialized.

Reimplemented from ezComponent.

Reimplemented in ezPointLightComponent, ezSpotLightComponent, and ezDirectionalLightComponent.

The documentation for this class was generated from the following files:

/home/runner/work/ezEngine/ezEngine/Code/Engine/RendererCore/Lights/LightComponent.h
/home/runner/work/ezEngine/ezEngine/Code/Engine/RendererCore/Lights/Implementation/LightComponent.cpp
