Creates basic geometry for prototyping levels. More...

#include <GreyBoxComponent.h>

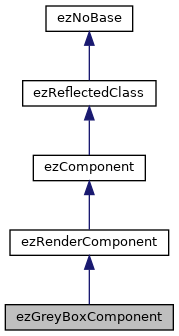

Inheritance diagram for ezGreyBoxComponent:

[legend]

Public Member Functions
virtual void	SerializeComponent (ezWorldWriter &inout_stream) const override
	Override this to save the current state of the component to the given stream.

virtual void	DeserializeComponent (ezWorldReader &inout_stream) override
	Override this to load the current state of the component from the given stream. More...

void	SetShape (ezEnum< ezGreyBoxShape > shape)
	The geometry type to build.

ezEnum< ezGreyBoxShape >	GetShape () const

void	SetColor (const ezColor &color)
	An additional tint color passed to the renderer to modify the mesh.

const ezColor &	GetColor () const

void	SetCustomData (const ezVec4 &vData)
	An additional vec4 passed to the renderer that can be used by custom material shaders for effects.

const ezVec4 &	GetCustomData () const

void	SetSizeNegX (float f)
	Sets the extent along the negative X axis of the bounding box.

float	GetSizeNegX () const

void	SetSizePosX (float f)
	Sets the extent along the positive X axis of the bounding box.

float	GetSizePosX () const

void	SetSizeNegY (float f)
	Sets the extent along the negative Y axis of the bounding box.

float	GetSizeNegY () const

void	SetSizePosY (float f)
	Sets the extent along the positive Y axis of the bounding box.

float	GetSizePosY () const

void	SetSizeNegZ (float f)
	Sets the extent along the negative Z axis of the bounding box.

float	GetSizeNegZ () const

void	SetSizePosZ (float f)
	Sets the extent along the positive Z axis of the bounding box.

float	GetSizePosZ () const

void	SetDetail (ezUInt32 uiDetail)
	Sets the detail of the geometry. The meaning is geometry type specific, e.g. for cylinders this is the number of polygons around the perimeter.

ezUInt32	GetDetail () const

void	SetCurvature (ezAngle curvature)
	Geometry type specific: Sets an angle, used to curve stairs, etc.

ezAngle	GetCurvature () const

void	SetSlopedTop (bool b)
	For curved stairs to make the top smooth.

bool	GetSlopedTop () const

void	SetSlopedBottom (bool b)
	For curved stairs to make the bottom smooth.

bool	GetSlopedBottom () const

void	SetThickness (float f)
	Geometry type specific: Sets a thickness, e.g. for curved stairs.

float	GetThickness () const

void	SetGenerateCollision (bool b)
	Whether the mesh should be used as a collider.

bool	GetGenerateCollision () const

void	SetMaterial (const ezMaterialResourceHandle &hMaterial)
	Sets the ezMaterialResource to use for rendering.

ezMaterialResourceHandle	GetMaterial () const

Public Member Functions inherited from ezRenderComponent
void	TriggerLocalBoundsUpdate ()
	Call this when some value was modified that affects the size of the local bounding box and it should be recomputed.

EZ_ALWAYS_INLINE ezUInt32	GetUniqueIdForRendering (ezUInt32 uiInnerIndex=0, ezUInt32 uiInnerIndexShift=24) const
	Computes a unique ID for the given component, that is usually given to the renderer to distinguish objects.

Public Member Functions inherited from ezComponent
void	SetActiveFlag (bool bEnabled)
	Sets the active flag of the component, which affects its active state. More...

bool	GetActiveFlag () const
	Checks whether the 'active flag' is set on this component. Note that this does not mean that the component is also 'active'. More...

bool	IsActive () const
	Checks whether this component is in an active state. More...

bool	IsActiveAndInitialized () const
	Returns whether this component is active and initialized. More...

bool	IsActiveAndSimulating () const
	Whether the component is currently active and simulation has been started as well. More...

ezComponentManagerBase *	GetOwningManager ()
	Returns the corresponding manager for this component.

const ezComponentManagerBase *	GetOwningManager () const
	Returns the corresponding manager for this component.

ezGameObject *	GetOwner ()
	Returns the owner game object if the component is attached to one or nullptr.

const ezGameObject *	GetOwner () const
	Returns the owner game object if the component is attached to one or nullptr.

ezWorld *	GetWorld ()
	Returns the corresponding world for this component.

const ezWorld *	GetWorld () const
	Returns the corresponding world for this component.

ezComponentHandle	GetHandle () const
	Returns a handle to this component.

ezUInt32	GetUniqueID () const
	Returns the unique id for this component.

void	SetUniqueID (ezUInt32 uiUniqueID)
	Sets the unique id for this component.

void	EnsureInitialized ()
	Ensures that the component is initialized. Must only be called from another component's Initialize callback.

void	EnsureSimulationStarted ()
	Ensures that the OnSimulationStarted method has been called. Must only be called from another component's OnSimulationStarted callback.

EZ_ALWAYS_INLINE bool	SendMessage (ezMessage &ref_msg)
	Sends a message to this component.

EZ_ALWAYS_INLINE bool	SendMessage (ezMessage &ref_msg) const

void	PostMessage (const ezMessage &msg, ezTime delay=ezTime::MakeZero(), ezObjectMsgQueueType::Enum queueType=ezObjectMsgQueueType::NextFrame) const
	Queues the message for the given phase. The message is processed after the given delay in the corresponding phase.

virtual bool	HandlesMessage (const ezMessage &msg) const
	Returns whether the given Message is handled by this component.

void	SetUserFlag (ezUInt8 uiFlagIndex, bool bSet)
	Be careful to check which flags may already be in use by base classes.

bool	GetUserFlag (ezUInt8 uiFlagIndex) const
	Retrieves a custom flag. Index must be between 0 and 7.

void	SetCreatedByPrefab ()
	Adds ezObjectFlags::CreatedByPrefab to the component. See the flag for details.

bool	WasCreatedByPrefab () const
	Checks whether the ezObjectFlags::CreatedByPrefab flag is set on this component.

Public Member Functions inherited from ezReflectedClass
virtual const ezRTTI *	GetDynamicRTTI () const

bool	IsInstanceOf (const ezRTTI *pType) const
	Returns whether the type of this instance is of the given type or derived from it.

template<typename T >
EZ_ALWAYS_INLINE bool	IsInstanceOf () const
	Returns whether the type of this instance is of the given type or derived from it.

Protected Member Functions
virtual void	OnActivated () override
	This method is called when the component gets activated. More...

virtual ezResult	GetLocalBounds (ezBoundingBoxSphere &bounds, bool &bAlwaysVisible, ezMsgUpdateLocalBounds &msg) override
	Called by ezRenderComponent::OnUpdateLocalBounds(). More...

void	OnMsgExtractRenderData (ezMsgExtractRenderData &msg) const

void	OnBuildStaticMesh (ezMsgBuildStaticMesh &msg) const

void	OnMsgExtractGeometry (ezMsgExtractGeometry &msg) const

void	OnMsgExtractOccluderData (ezMsgExtractOccluderData &msg) const

void	OnMsgSetMeshMaterial (ezMsgSetMeshMaterial &ref_msg)

void	OnMsgSetColor (ezMsgSetColor &ref_msg)

void	OnMsgSetCustomData (ezMsgSetCustomData &ref_msg)

void	InvalidateMesh ()

void	BuildGeometry (ezGeometry &geom, ezEnum< ezGreyBoxShape > shape, bool bOnlyRoughDetails) const

template<typename ResourceType >
ezTypedResourceHandle< ResourceType >	GenerateMesh () const

void	GenerateMeshName (ezStringBuilder &out_sName) const

void	GenerateMeshResourceDescriptor (ezMeshResourceDescriptor &desc) const

Protected Member Functions inherited from ezRenderComponent
virtual void	Deinitialize () override
	This method is called before the component is destroyed. A derived type can override this method to do common de-initialization work. More...

virtual void	OnDeactivated () override
	This method is called when the component gets deactivated. More...

void	OnUpdateLocalBounds (ezMsgUpdateLocalBounds &msg)

void	InvalidateCachedRenderData ()

Protected Member Functions inherited from ezComponent
	ezComponent ()
	Keep the constructor private or protected in derived classes, so it cannot be called manually.

bool	IsDynamic () const
	Returns whether this component is dynamic and thus can only be attached to dynamic game objects.

virtual ezWorldModuleTypeId	GetTypeId () const =0

virtual ezComponentMode::Enum	GetMode () const =0

virtual void	Initialize ()
	Can be overridden for basic initialization that depends on a valid hierarchy and position. More...

virtual void	OnSimulationStarted ()
	This method is called once for active components, at the start of the next world update, but only when the world is simulated. More...

void	EnableUnhandledMessageHandler (bool enable)
	By default disabled. Enable to have OnUnhandledMessage() called for every unhandled message.

virtual bool	OnUnhandledMessage (ezMessage &msg, bool bWasPostedMsg)
	When EnableUnhandledMessageHandler() was activated, this is called for all messages for which there is no dedicated message handler. More...

virtual bool	OnUnhandledMessage (ezMessage &msg, bool bWasPostedMsg) const
	When EnableUnhandledMessageHandler() was activated, this is called for all messages for which there is no dedicated message handler. More...

bool	IsInitialized () const

bool	IsInitializing () const

bool	IsSimulationStarted () const

Protected Attributes
ezEnum< ezGreyBoxShape >	m_Shape

ezMaterialResourceHandle	m_hMaterial

ezColor	m_Color = ezColor::White

ezVec4	m_vCustomData = ezVec4(0, 1, 0, 1)

float	m_fSizeNegX = 0

float	m_fSizePosX = 0

float	m_fSizeNegY = 0

float	m_fSizePosY = 0

float	m_fSizeNegZ = 0

float	m_fSizePosZ = 0

ezUInt32	m_uiDetail = 16

ezAngle	m_Curvature

float	m_fThickness = 0.5f

bool	m_bSlopedTop = false

bool	m_bSlopedBottom = false

bool	m_bGenerateCollision = true

bool	m_bUseAsOccluder = true

ezMeshResourceHandle	m_hMesh

ezSharedPtr< const ezRasterizerObject >	m_pOccluderObject

Protected Attributes inherited from ezComponent
const ezRTTI *	m_pMessageDispatchType = nullptr
	Messages will be dispatched to this type. Default is what GetDynamicRTTI() returns, can be redirected if necessary.

Additional Inherited Members
Static Public Member Functions inherited from ezRenderComponent
static ezUInt32	GetUniqueIdForRendering (const ezComponent &component, ezUInt32 uiInnerIndex=0, ezUInt32 uiInnerIndexShift=24)
	Computes a unique ID for the given component, that is usually given to the renderer to distinguish objects.

Static Public Member Functions inherited from ezNoBase
static const ezRTTI *	GetStaticRTTI ()

Detailed Description

Creates basic geometry for prototyping levels.

It automatically creates physics collision geometry and also sets up rendering occluders to improve performance.

Member Function Documentation

◆ DeserializeComponent()

void ezGreyBoxComponent::DeserializeComponent ( ezWorldReader & inout_stream )

overridevirtual

Override this to load the current state of the component from the given stream.

The active state will be automatically serialized. The 'initialized' state is not serialized, all components will be initialized after creation, even if they were already in an initialized state when they were serialized.

Reimplemented from ezComponent.

◆ GetLocalBounds()

ezResult ezGreyBoxComponent::GetLocalBounds	(	ezBoundingBoxSphere &	out_bounds,
		bool &	out_bAlwaysVisible,
		ezMsgUpdateLocalBounds &	ref_msg
	)

overrideprotectedvirtual

Called by ezRenderComponent::OnUpdateLocalBounds().

If EZ_SUCCESS is returned, out_bounds and out_bAlwaysVisible will be integrated into the ezMsgUpdateLocalBounds ref_msg, otherwise the out values are simply ignored.

Implements ezRenderComponent.

◆ OnActivated()

void ezGreyBoxComponent::OnActivated ( )

overrideprotectedvirtual

This method is called when the component gets activated.

By default a component is active, but it can be created in an inactive state. In such a case OnActivated() is only called once a component is activated. If a component gets switched between active and inactive at runtime, OnActivated() and OnDeactivated() are called accordingly. In contrast Initialize() and Deinitialize() are only ever called once.

See also: OnActivated(), OnDeactivated(), Initialize(), Deinitialize(), OnSimulationStarted()

Reimplemented from ezRenderComponent.

The documentation for this class was generated from the following files:

/home/runner/work/ezEngine/ezEngine/Code/Engine/GameEngine/Gameplay/GreyBoxComponent.h
/home/runner/work/ezEngine/ezEngine/Code/Engine/GameEngine/Gameplay/Implementation/GreyBoxComponent.cpp
