ezRenderData Class Reference

Base class for all render data. Render data must contain all information that is needed to render the corresponding object. More...

#include <RenderData.h>

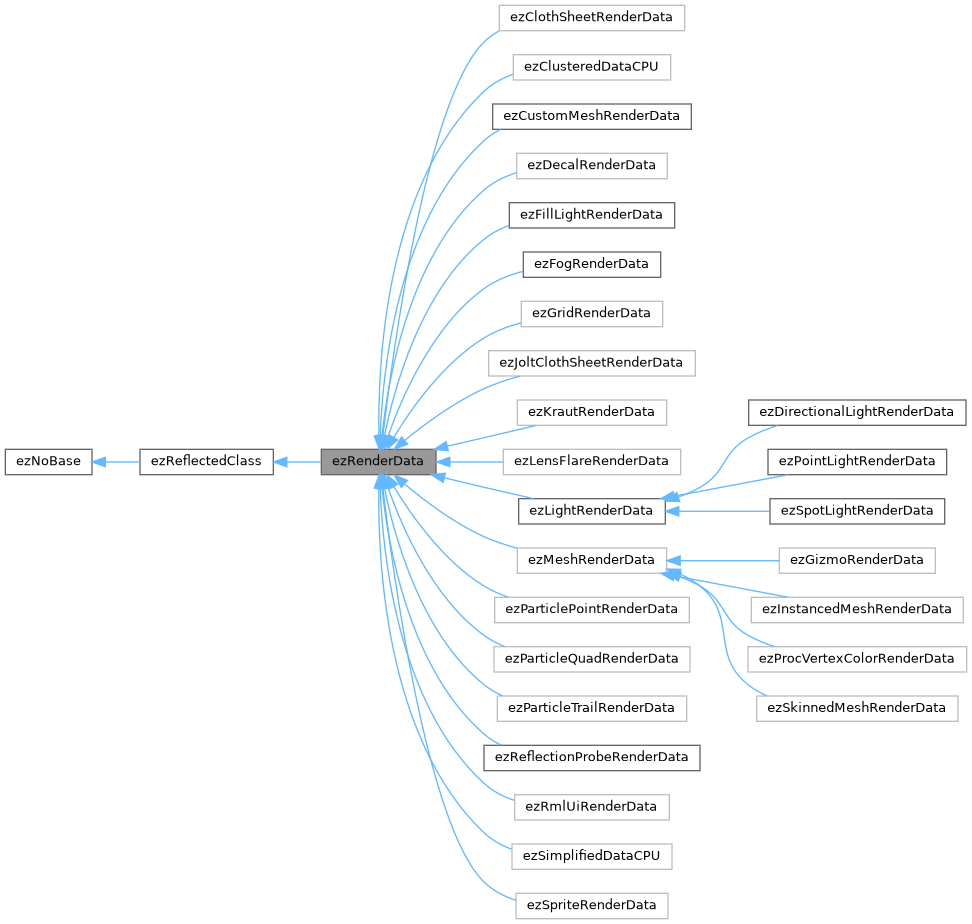

Inheritance diagram for ezRenderData:

Classes
struct	Caching
struct	Category
struct	Flags

Public Types
using	SortingKeyFunc = ezUInt64(*)(const ezRenderData *, const ezCamera &)
	This function generates a 64bit sorting key for the given render data. Data with lower sorting key is rendered first.

Public Member Functions
ezUInt64	GetFinalSortingKey (Category category, const ezCamera &camera) const
	Returns the final sorting for this render data with the given category and camera.
virtual bool	CanBatch (const ezRenderData &other) const
	Returns whether this render data and the other render data can be batched together, e.g. rendered in one draw call. An implementation can assume that the other render data is of the same type as this render data.
Public Member Functions inherited from ezReflectedClass
virtual const ezRTTI *	GetDynamicRTTI () const
bool	IsInstanceOf (const ezRTTI *pType) const
	Returns whether the type of this instance is of the given type or derived from it.
template<typename T >
EZ_ALWAYS_INLINE bool	IsInstanceOf () const
	Returns whether the type of this instance is of the given type or derived from it.

Static Public Member Functions
static Category	RegisterCategory (const char *szCategoryName, SortingKeyFunc sortingKeyFunc)
static Category	RegisterDerivedCategory (const char *szCategoryName, Category baseCategory)
static Category	RegisterRedirectedCategory (const char *szCategoryName, Category staticCategory, Category dynamicCategory)
static Category	FindCategory (ezTempHashedString sCategoryName)
static Category	ResolveCategory (Category category, bool bDynamic)
static ezHashedString	GetCategoryName (Category category)
static void	GetAllCategoryNames (ezDynamicArray< ezHashedString > &out_categoryNames)
static const ezRenderer *	GetCategoryRenderer (Category category, const ezRTTI *pRenderDataType)
Static Public Member Functions inherited from ezNoBase
static const ezRTTI *	GetStaticRTTI ()

Public Attributes
ezBitflags< Flags >	m_Flags
ezTransform	m_GlobalTransform = ezTransform::MakeIdentity()
ezBoundingBoxSphere	m_GlobalBounds
ezUInt32	m_uiSortingKey = 0
float	m_fSortingDepthOffset = 0.0f
ezGameObjectHandle	m_hOwner

Detailed Description

Base class for all render data. Render data must contain all information that is needed to render the corresponding object.

Member Function Documentation

CanBatch()

virtual bool ezRenderData::CanBatch ( const ezRenderData &  other ) const

inlinevirtual

Returns whether this render data and the other render data can be batched together, e.g. rendered in one draw call. An implementation can assume that the other render data is of the same type as this render data.

Reimplemented in ezLensFlareRenderData, ezSpriteRenderData, ezCustomMeshRenderData, ezInstancedMeshRenderData, ezMeshRenderData, ezSkinnedMeshRenderData, ezKrautRenderData, ezParticleQuadRenderData, and ezParticleTrailRenderData.

---

The documentation for this class was generated from the following files:

• /home/runner/work/ezEngine/ezEngine/Code/Engine/RendererCore/Pipeline/RenderData.h
• /home/runner/work/ezEngine/ezEngine/Code/Engine/RendererCore/Pipeline/Implementation/RenderData.cpp
• /home/runner/work/ezEngine/ezEngine/Code/Engine/RendererCore/Pipeline/Implementation/RenderData_inl.h
