ezManipulatorScaleGizmo Class Reference

Scale gizmo version that only uses boxes that can be composited with rotate and translate gizmos without major overlap. Used by the ezTransformManipulatorAdapter. More...

#include <ScaleGizmo.h>

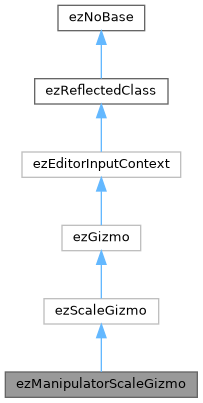

Inheritance diagram for ezManipulatorScaleGizmo:
Inheritance graph
[legend]

Protected Member Functions

virtual void OnTransformationChanged (const ezTransform &transform) override

- Protected Member Functions inherited from ezScaleGizmo
virtual void DoFocusLost (bool bCancel) override

virtual ezEditorInput DoMousePressEvent (QMouseEvent *e) override

virtual ezEditorInput DoMouseReleaseEvent (QMouseEvent *e) override

virtual ezEditorInput DoMouseMoveEvent (QMouseEvent *e) override

virtual void OnSetOwner (ezQtEngineDocumentWindow *pOwnerWindow, ezQtEngineViewWidget *pOwnerView) override

virtual void OnVisibleChanged (bool bVisible) override

- Protected Member Functions inherited from ezGizmo
void GetInverseViewProjectionMatrix (ezMat4 &out_mInvViewProj) const

ezResult GetPointOnPlane (const ezPlane &plane, const ezVec2I32 &vScreenPos, const ezMat4 &mInvViewProj, ezVec3 &out_Result) const

ezResult GetPointOnAxis (const ezVec3 &vStartPos, const ezVec3 &vAxis, const ezVec2I32 &vScreenPos, const ezMat4 &mInvViewProj, ezVec3 &out_Result, float *out_pProjectedLength=nullptr) const

- Protected Member Functions inherited from ezEditorInputContext
virtual void OnActivated ()

virtual void OnDeactivated ()

virtual ezEditorInput DoKeyPressEvent (QKeyEvent *e)

virtual ezEditorInput DoKeyReleaseEvent (QKeyEvent *e)

virtual ezEditorInput DoWheelEvent (QWheelEvent *e)


Additional Inherited Members

- Public Types inherited from ezEditorInputContext
enum class  MouseMode { Normal , WrapAtScreenBorders , HideAndWrapAtScreenBorders }
 How the mouse position is updated when the mouse cursor reaches the screen borders. More...

- Public Member Functions inherited from ezScaleGizmo
const ezVec3 & GetScalingResult () const

virtual void UpdateStatusBarText (ezQtEngineDocumentWindow *pWindow) override

void EnableAxis (bool x, bool y, bool z, bool bXyz)

- Public Member Functions inherited from ezGizmo
void SetVisible (bool bVisible)

bool IsVisible () const

void SetTransformation (const ezTransform &transform)

const ezTransform & GetTransformation () const

void ConfigureInteraction (ezGizmoHandle *pHandle, const ezCamera *pCamera, const ezVec3 &vInteractionPivot, const ezVec2I32 &vViewport)

- Public Member Functions inherited from ezEditorInputContext
void FocusLost (bool bCancel)

ezEditorInput KeyPressEvent (QKeyEvent *e)

ezEditorInput KeyReleaseEvent (QKeyEvent *e)

ezEditorInput MousePressEvent (QMouseEvent *e)

ezEditorInput MouseReleaseEvent (QMouseEvent *e)

ezEditorInput MouseMoveEvent (QMouseEvent *e)

ezEditorInput WheelEvent (QWheelEvent *e)

void MakeActiveInputContext (bool bActive=true)

bool IsActiveInputContext () const

void SetOwner (ezQtEngineDocumentWindow *pOwnerWindow, ezQtEngineViewWidget *pOwnerView)

ezQtEngineDocumentWindow * GetOwnerWindow () const

ezQtEngineViewWidget * GetOwnerView () const

bool GetShortcutsDisabled () const

void SetShortcutsDisabled (bool bDisabled)
 If set to true, the surrounding window will ensure to block all shortcuts and instead send keypress events to the input context.

virtual bool IsPickingSelectedAllowed () const

ezVec2I32 SetMouseMode (MouseMode mode)
 Sets how the mouse will act when it reaches the screen border. UpdateMouseMode() must be called on every mouseMoveEvent to update the state.

ezVec2I32 UpdateMouseMode (QMouseEvent *e)
 Updates the mouse position. Can always be called but will only have an effect if SetMouseMode() was called with one of the wrap modes.

- Public Member Functions inherited from ezReflectedClass
virtual const ezRTTI * GetDynamicRTTI () const

bool IsInstanceOf (const ezRTTI *pType) const
 Returns whether the type of this instance is of the given type or derived from it.

template<typename T >
EZ_ALWAYS_INLINE bool IsInstanceOf () const
 Returns whether the type of this instance is of the given type or derived from it.

- Static Public Member Functions inherited from ezEditorInputContext
static void SetActiveInputContext (ezEditorInputContext *pContext)

static bool IsAnyInputContextActive ()

static ezEditorInputContext * GetActiveInputContext ()

static void UpdateActiveInputContext ()

- Static Public Member Functions inherited from ezNoBase
static const ezRTTI * GetStaticRTTI ()

- Public Attributes inherited from ezGizmo
ezEvent< const ezGizmoEvent & > m_GizmoEvents

- Protected Attributes inherited from ezScaleGizmo
bool m_bEnableAxisX = true

bool m_bEnableAxisY = true

bool m_bEnableAxisZ = true

bool m_bEnableAxisXYZ = true

ezEngineGizmoHandle m_hAxisX

ezEngineGizmoHandle m_hAxisY

ezEngineGizmoHandle m_hAxisZ

ezEngineGizmoHandle m_hAxisXYZ

- Protected Attributes inherited from ezGizmo
const ezCamera * m_pCamera = nullptr

ezGizmoHandle * m_pInteractionGizmoHandle = nullptr

ezVec3 m_vInteractionPivot

ezVec2I32 m_vViewport


Detailed Description

Scale gizmo version that only uses boxes that can be composited with rotate and translate gizmos without major overlap. Used by the ezTransformManipulatorAdapter.

Member Function Documentation

◆ OnTransformationChanged()

void ezManipulatorScaleGizmo::OnTransformationChanged ( const ezTransform &  transform)
overrideprotectedvirtual

Reimplemented from ezScaleGizmo.

The documentation for this class was generated from the following files:
