#include <ParticleTypeEffect.h>

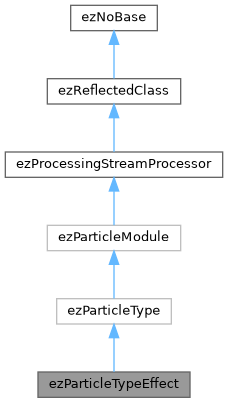

Inheritance diagram for ezParticleTypeEffect:

[legend]

Public Member Functions
virtual void	CreateRequiredStreams () override

virtual void	ExtractTypeRenderData (ezMsgExtractRenderData &ref_msg, const ezTransform &instanceTransform) const override

virtual float	GetMaxParticleRadius (float fParticleSize) const override

Public Member Functions inherited from ezParticleModule
virtual void	QueryOptionalStreams ()

void	Reset (ezParticleSystemInstance *pOwner)

virtual void	OnFinalize ()
	Called after everything is set up.

ezParticleSystemInstance *	GetOwnerSystem ()

const ezParticleSystemInstance *	GetOwnerSystem () const

ezParticleEffectInstance *	GetOwnerEffect () const

virtual void	RequestRequiredWorldModulesForCache (ezParticleWorldModule *pParticleModule)

Public Member Functions inherited from ezProcessingStreamProcessor
	ezProcessingStreamProcessor ()
	Base constructor.

virtual	~ezProcessingStreamProcessor ()
	Base destructor.

Public Member Functions inherited from ezReflectedClass
virtual const ezRTTI *	GetDynamicRTTI () const

bool	IsInstanceOf (const ezRTTI *pType) const
	Returns whether the type of this instance is of the given type or derived from it.

template<typename T >
EZ_ALWAYS_INLINE bool	IsInstanceOf () const
	Returns whether the type of this instance is of the given type or derived from it.

Public Attributes
ezParticleEffectResourceHandle	m_hEffect

Public Attributes inherited from ezProcessingStreamProcessor
float	m_fPriority = 0.0f
	Used for sorting processors, to ensure a certain order. Lower priority == executed first.

Protected Member Functions
virtual void	OnReset () override
	Called by Reset() to perform custom cleanup.

virtual void	Process (ezUInt64 uiNumElements) override
	The actual method which processes the data, will be called with the number of elements to process.

void	OnParticleDeath (const ezStreamGroupElementRemovedEvent &e)

void	ClearEffects (bool bInterruptImmediately)

Protected Member Functions inherited from ezParticleType
virtual void	InitializeElements (ezUInt64 uiStartIndex, ezUInt64 uiNumElements) override
	This method needs to be implemented in order to initialize new elements to specific values.

virtual void	StepParticleSystem (const ezTime &tDiff, ezUInt32 uiNumNewParticles)

Protected Member Functions inherited from ezParticleModule
void	CreateStream (const char szName, ezProcessingStream::DataType Type, ezProcessingStream *ppStream, bool bWillInitializeStream)

virtual ezResult	UpdateStreamBindings () final override
	Internal method which needs to be implemented, gets the concrete stream bindings. This is called every time the streams are resized. Implementations should check that their required streams exist and are of the correct data types.

ezRandom &	GetRNG () const

Protected Attributes
float	m_fMaxEffectRadius = 1.0f

ezProcessingStream *	m_pStreamPosition = nullptr

ezProcessingStream *	m_pStreamEffectID = nullptr

Protected Attributes inherited from ezParticleType
ezTime	m_TimeDiff

ezUInt64	m_uiLastExtractedFrame

Protected Attributes inherited from ezProcessingStreamProcessor
ezProcessingStreamGroup *	m_pStreamGroup = nullptr
	Back pointer to the stream group - will be set to the owner stream group when adding the stream processor to the group. Can be used to get stream pointers in UpdateStreamBindings();.

Friends
class	ezParticleTypeEffectFactory

Additional Inherited Members
Static Public Member Functions inherited from ezNoBase
static const ezRTTI *	GetStaticRTTI ()

Static Protected Member Functions inherited from ezParticleType
static ezUInt32	ComputeSortingKey (ezParticleTypeRenderMode::Enum mode, ezUInt64 uiResource1Hash, ezUInt64 uiResource2Hash)

Detailed Description

Spawns nested particle effects at each particle position.

Each particle spawns an independent particle effect instance at its position. The spawned effects are automatically cleaned up when the parent particle dies.

Member Function Documentation

◆ CreateRequiredStreams()

void ezParticleTypeEffect::CreateRequiredStreams ( )

overridevirtual

Implements ezParticleModule.

◆ ExtractTypeRenderData()

void ezParticleTypeEffect::ExtractTypeRenderData	(	ezMsgExtractRenderData &	ref_msg,
		const ezTransform &	instanceTransform
	)		const

overridevirtual

Generates render data for all active particles.

Called during render data extraction to create render objects for this particle type.

Implements ezParticleType.

◆ GetMaxParticleRadius()

virtual float ezParticleTypeEffect::GetMaxParticleRadius ( float fParticleSize ) const

inlineoverridevirtual

Returns the maximum effect radius for culling.

This is an approximation based on the spawned effect's bounding radius.

Reimplemented from ezParticleType.

◆ OnReset()

void ezParticleTypeEffect::OnReset ( )

overrideprotectedvirtual

Called by Reset() to perform custom cleanup.

Reimplemented from ezParticleModule.

◆ Process()

void ezParticleTypeEffect::Process ( ezUInt64 uiNumElements )

overrideprotectedvirtual

The actual method which processes the data, will be called with the number of elements to process.

Implements ezProcessingStreamProcessor.

The documentation for this class was generated from the following files:

/home/runner/work/ezEngine/ezEngine/Code/EnginePlugins/ParticlePlugin/Type/Effect/ParticleTypeEffect.h
/home/runner/work/ezEngine/ezEngine/Code/EnginePlugins/ParticlePlugin/Type/Effect/ParticleTypeEffect.cpp
