#include <TerrainBrushBaseComponent.h>

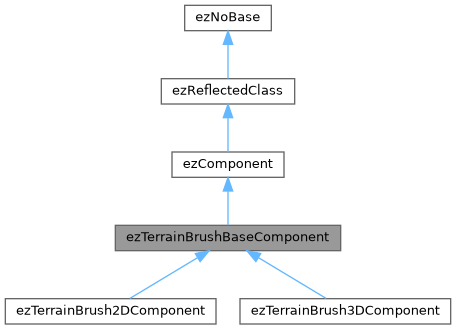

Inheritance diagram for ezTerrainBrushBaseComponent:

[legend]

Public Member Functions
virtual void	SerializeComponent (ezWorldWriter &inout_stream) const override
	Override this to save the current state of the component to the given stream.

virtual void	DeserializeComponent (ezWorldReader &inout_stream) override
	Override this to load the current state of the component from the given stream.

virtual void	OnActivated () override
	This method is called when the component gets activated.

virtual void	OnDeactivated () override
	This method is called when the component gets deactivated.

void	SetHalfSizeX (float fSize)

float	GetHalfSizeX () const

void	SetInnerRadius (float fRadius)

float	GetInnerRadius () const

void	SetOuterRadius (float fRadius)

float	GetOuterRadius () const

void	SetFalloff (float fFalloff)

float	GetFalloff () const

void	SetMaterialIndex (ezUInt8 uiIndex)

ezUInt8	GetMaterialIndex () const

void	SetMaterialStrength (float fStrength)
	Blend strength for material painting in [0, 1]. 0 = disabled.

float	GetMaterialStrength () const

void	SetAffectPatches (bool b)

bool	GetAffectPatches () const

void	SetAffectVolumes (bool b)

bool	GetAffectVolumes () const

void	SetNoiseStrength (float fNoise)

float	GetNoiseStrength () const

void	SetNoiseFrequency (float fNoise)

float	GetNoiseFrequency () const

void	SetPriority (ezInt8 iPriority)
	Brush application order. Higher = applied later = wins. Equal priorities use mode-based ordering.

ezInt8	GetPriority () const

const ezTagSet &	GetTags () const

void	Reflection_SetTag (const char *szTagName)

void	Reflection_RemoveTag (const char *szTagName)

Public Member Functions inherited from ezComponent
void	SetActiveFlag (bool bEnabled)
	Sets the active flag of the component, which affects its active state.

bool	GetActiveFlag () const
	Checks whether the 'active flag' is set on this component. Note that this does not mean that the component is also 'active'.

bool	IsActive () const
	Checks whether this component is in an active state.

bool	IsActiveAndInitialized () const
	Returns whether this component is active and initialized.

bool	IsActiveAndSimulating () const
	Whether the component is currently active and simulation has been started as well.

ezComponentManagerBase *	GetOwningManager ()
	Returns the corresponding manager for this component.

const ezComponentManagerBase *	GetOwningManager () const
	Returns the corresponding manager for this component.

ezGameObject *	GetOwner ()
	Returns the owner game object if the component is attached to one or nullptr.

const ezGameObject *	GetOwner () const
	Returns the owner game object if the component is attached to one or nullptr.

ezWorld *	GetWorld ()
	Returns the corresponding world for this component.

const ezWorld *	GetWorld () const
	Returns the corresponding world for this component.

ezComponentHandle	GetHandle () const
	Returns a handle to this component.

ezUInt32	GetUniqueID () const
	Returns the unique id for this component.

void	SetUniqueID (ezUInt32 uiUniqueID)
	Sets the unique id for this component.

void	EnsureInitialized ()
	Ensures that the component is initialized. Must only be called from another component's Initialize callback.

void	EnsureSimulationStarted ()
	Ensures that the OnSimulationStarted method has been called. Must only be called from another component's OnSimulationStarted callback.

EZ_ALWAYS_INLINE bool	SendMessage (ezMessage &ref_msg)
	Sends a message to this component.

EZ_ALWAYS_INLINE bool	SendMessage (ezMessage &ref_msg) const

void	PostMessage (const ezMessage &msg, ezTime delay=ezTime::MakeZero(), ezObjectMsgQueueType::Enum queueType=ezObjectMsgQueueType::NextFrame) const
	Queues the message for the given phase. The message is processed after the given delay in the corresponding phase.

virtual bool	HandlesMessage (const ezMessage &msg) const
	Returns whether the given Message is handled by this component.

void	SetUserFlag (ezUInt8 uiFlagIndex, bool bSet)
	Be careful to check which flags may already be in use by base classes.

bool	GetUserFlag (ezUInt8 uiFlagIndex) const
	Retrieves a custom flag. Index must be between 0 and 7.

void	SetCreatedByPrefab ()
	Adds ezObjectFlags::CreatedByPrefab to the component. See the flag for details.

bool	WasCreatedByPrefab () const
	Checks whether the ezObjectFlags::CreatedByPrefab flag is set on this component.

void	DeleteComponent ()
	Deletes this component. Note that the component will be invalidated first and the actual deletion is postponed.

Public Member Functions inherited from ezReflectedClass
virtual const ezRTTI *	GetDynamicRTTI () const

bool	IsInstanceOf (const ezRTTI *pType) const
	Returns whether the type of this instance is of the given type or derived from it.

template<typename T >
EZ_ALWAYS_INLINE bool	IsInstanceOf () const
	Returns whether the type of this instance is of the given type or derived from it.

Protected Member Functions
void	OnMsgTransformChanged (ezMsgTransformChanged &msg)

void	OnMsgSplineChanged (ezMsgSplineChanged &msg)

void	RefreshBrushes ()

void	ClearBrushes ()

void	FillBrush (ezTerrainData_Brush &brush, const ezTransform &transform, float fHalfSizeX)
	Fills transform, HalfSizeX, and all common properties, then calls FillBrushSpecificProperties.

virtual void	FillBrushSpecificProperties (ezTerrainData_Brush &brush, float fHalfSizeX)=0
	Subclass fills: ModifyMode, m_vHalfExtents.y, m_fHalfExtentYTop, m_fHalfExtentZ.

Protected Member Functions inherited from ezComponent
	ezComponent ()
	Keep the constructor private or protected in derived classes, so it cannot be called manually.

bool	IsDynamic () const
	Returns whether this component is dynamic and thus can only be attached to dynamic game objects.

virtual ezWorldModuleTypeId	GetTypeId () const =0

virtual ezComponentMode::Enum	GetMode () const =0

virtual void	Initialize ()
	Can be overridden for basic initialization that depends on a valid hierarchy and position.

virtual void	Deinitialize ()
	This method is called before the component is destroyed. A derived type can override this method to do common de-initialization work.

virtual void	OnSimulationStarted ()
	This method is called once for active components, at the start of the next world update, but only when the world is simulated.

void	EnableUnhandledMessageHandler (bool enable)
	By default disabled. Enable to have OnUnhandledMessage() called for every unhandled message.

virtual bool	OnUnhandledMessage (ezMessage &msg, bool bWasPostedMsg)
	When EnableUnhandledMessageHandler() was activated, this is called for all messages for which there is no dedicated message handler.

virtual bool	OnUnhandledMessage (ezMessage &msg, bool bWasPostedMsg) const
	When EnableUnhandledMessageHandler() was activated, this is called for all messages for which there is no dedicated message handler.

bool	IsInitialized () const

bool	IsInitializing () const

bool	IsSimulationStarted () const

Protected Attributes
ezSmallArray< ezUInt32, 1 >	m_BrushIndices

float	m_fHalfSizeX = 0.0f

float	m_fInnerRadius = 0.0f

float	m_fOuterRadius = 5.0f

float	m_fFalloff = 1.0f

float	m_fNoiseStrength = 0.0f

float	m_fNoiseFrequency = 1.0f

float	m_fMaterialStrength = 0.0f

ezUInt8	m_uiMaterialIndex = 0

ezInt8	m_iPriority = 0

bool	m_bAffectPatches = true

bool	m_bAffectVolumes = true

ezTagSet	m_Tags
	If non-empty, brush only affects terrain objects that have at least one matching tag.

Protected Attributes inherited from ezComponent
const ezRTTI *	m_pMessageDispatchType = nullptr
	Messages will be dispatched to this type. Default is what GetDynamicRTTI() returns, can be redirected if necessary.

Additional Inherited Members
Static Public Member Functions inherited from ezNoBase
static const ezRTTI *	GetStaticRTTI ()

Detailed Description

Abstract base for all terrain brush components.

Handles creation and cleanup of TerrainSystem brushes, including automatic spline-path support: if an ezSplineComponent exists on the same game object the brush stamps along the spline instead of acting as a single brush. Properties common to 2D and 3D brushes are declared here and inherited by both ezTerrainBrush2DComponent and ezTerrainBrush3DComponent.

Member Function Documentation

◆ DeserializeComponent()

void ezTerrainBrushBaseComponent::DeserializeComponent ( ezWorldReader & inout_stream )

overridevirtual

Override this to load the current state of the component from the given stream.

The active state will be automatically serialized. The 'initialized' state is not serialized, all components will be initialized after creation, even if they were already in an initialized state when they were serialized.

Reimplemented from ezComponent.

Reimplemented in ezTerrainBrush2DComponent, and ezTerrainBrush3DComponent.

◆ FillBrushSpecificProperties()

virtual void ezTerrainBrushBaseComponent::FillBrushSpecificProperties	(	ezTerrainData_Brush &	brush,
		float	fHalfSizeX
	)

protectedpure virtual

Subclass fills: ModifyMode, m_vHalfExtents.y, m_fHalfExtentYTop, m_fHalfExtentZ.

Implemented in ezTerrainBrush2DComponent, and ezTerrainBrush3DComponent.

◆ OnActivated()

void ezTerrainBrushBaseComponent::OnActivated ( )

overridevirtual

This method is called when the component gets activated.

By default a component is active, but it can be created in an inactive state. In such a case OnActivated() is only called once a component is activated. If a component gets switched between active and inactive at runtime, OnActivated() and OnDeactivated() are called accordingly. In contrast Initialize() and Deinitialize() are only ever called once.

See also: OnActivated(), OnDeactivated(), Initialize(), Deinitialize(), OnSimulationStarted()

Reimplemented from ezComponent.

◆ OnDeactivated()

void ezTerrainBrushBaseComponent::OnDeactivated ( )

overridevirtual

This method is called when the component gets deactivated.

Upon destruction, a component that is active first gets deactivated. Therefore OnDeactivated() should be used for typical game code cleanup.

See also: OnActivated(), OnDeactivated(), Initialize(), Deinitialize(), OnSimulationStarted()

Reimplemented from ezComponent.

◆ SerializeComponent()

void ezTerrainBrushBaseComponent::SerializeComponent ( ezWorldWriter & inout_stream ) const

overridevirtual

Override this to save the current state of the component to the given stream.

Reimplemented from ezComponent.

Reimplemented in ezTerrainBrush2DComponent, and ezTerrainBrush3DComponent.

The documentation for this class was generated from the following files:

/home/runner/work/ezEngine/ezEngine/Code/EnginePlugins/TerrainPlugin/Components/TerrainBrushBaseComponent.h
/home/runner/work/ezEngine/ezEngine/Code/EnginePlugins/TerrainPlugin/Components/TerrainBrushBaseComponent.cpp
