ezQtPropertyContainerWidget Class Reference

Base class for all container properties. More...

#include <PropertyBaseWidget.moc.h>

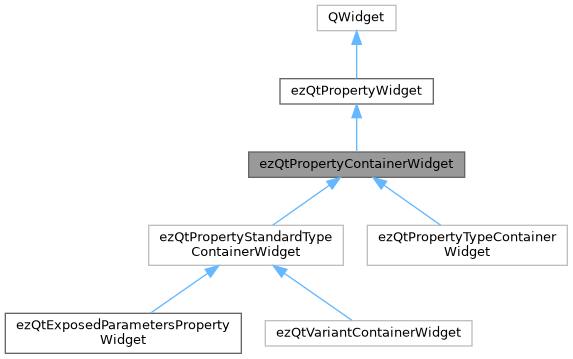

Inheritance diagram for ezQtPropertyContainerWidget:

Classes
struct	Element

Public Slots
void	OnElementButtonClicked ()
void	OnDragStarted (QMimeData &ref_mimeData)
void	OnContainerContextMenu (const QPoint &pt)
void	OnCustomElementContextMenu (const QPoint &pt)
Public Slots inherited from ezQtPropertyWidget
void	OnCustomContextMenu (const QPoint &pt)

Public Member Functions
	ezQtPropertyContainerWidget ()
	*** ezQtPropertyContainerWidget ***
virtual void	SetSelection (const ezHybridArray< ezPropertySelection, 8 > &items) override
	This is called whenever the selection in the editor changes and thus the widget may need to display a different value.
virtual bool	HasLabel () const override
	If this returns true (default), a QLabel is created and the text that GetLabel() returns is displayed.
virtual void	SetIsDefault (bool bIsDefault) override
	Whether the variable that the widget represents is currently set to the default value or has been modified.
Public Member Functions inherited from ezQtPropertyWidget
	ezQtPropertyWidget ()
	*** BASE ***
void	Init (ezQtPropertyGridWidget *pGrid, ezObjectAccessorBase *pObjectAccessor, const ezRTTI *pType, const ezAbstractProperty *pProp)
ezQtPropertyGridWidget *	GetPropertyGrid ()
ezObjectAccessorBase *	GetObjectAccessor ()
const ezRTTI *	GetType () const
const ezAbstractProperty *	GetProperty () const
const ezHybridArray< ezPropertySelection, 8 > &	GetSelection () const
virtual const char *	GetLabel (ezStringBuilder &ref_sTmp) const
	The return value is used to display a label, if HasLabel() returns true.
virtual void	ExtendContextMenu (QMenu &ref_menu)
bool	GetCommonVariantSubType (const ezHybridArray< ezPropertySelection, 8 > &items, const ezAbstractProperty *pProperty, ezVariantType::Enum &out_type)
	If the property is of type ezVariant this function returns whether all items have the same type. If true is returned, out_Type contains the common type. Note that 'invalid' can be a common type.
ezVariant	GetCommonValue (const ezHybridArray< ezPropertySelection, 8 > &items, const ezAbstractProperty *pProperty)
void	PrepareToDie ()
virtual void	SetReadOnly (bool bReadOnly=true)
	By default disables the widget, but can be overridden to make a widget more interactable (for example to be able to copy text from it).

Protected Member Functions
virtual ezQtGroupBoxBase *	CreateElement (QWidget *pParent)
virtual ezQtPropertyWidget *	CreateWidget (ezUInt32 index)
virtual Element &	AddElement (ezUInt32 index)
virtual void	RemoveElement (ezUInt32 index)
virtual void	UpdateElement (ezUInt32 index)=0
void	UpdateElements ()
virtual void	GetRequiredElements (ezDynamicArray< ezVariant > &out_keys) const
virtual void	UpdatePropertyMetaState ()
virtual ezPropertyCategory::Enum	GetContainerCategory () const
	Some containers like ezVariant can be both a map or an array so we can't reply on the property type alone. For these containers, this method can be overwritten to retrieve the category from something other than m_pProp->GetCategory().
void	Clear ()
virtual void	OnInit () override
void	DeleteItems (ezHybridArray< ezPropertySelection, 8 > &items)
void	MoveItems (ezHybridArray< ezPropertySelection, 8 > &items, ezInt32 iMove)
virtual void	DoPrepareToDie () override
virtual void	dragEnterEvent (QDragEnterEvent *event) override
virtual void	dragMoveEvent (QDragMoveEvent *event) override
virtual void	dragLeaveEvent (QDragLeaveEvent *event) override
virtual void	dropEvent (QDropEvent *event) override
virtual void	paintEvent (QPaintEvent *event) override
virtual void	showEvent (QShowEvent *event) override
Protected Member Functions inherited from ezQtPropertyWidget
void	Broadcast (ezPropertyEvent::Type type)
void	PropertyChangedHandler (const ezPropertyEvent &ed)
bool	IsUndead () const
virtual bool	eventFilter (QObject *pWatched, QEvent *pEvent) override

Protected Attributes
QHBoxLayout *	m_pLayout
ezQtGroupBoxBase *	m_pGroup
QVBoxLayout *	m_pGroupLayout
ezQtAddSubElementButton *	m_pAddButton = nullptr
QPalette	m_Pal
ezHybridArray< ezVariant, 16 >	m_Keys
ezDynamicArray< Element >	m_Elements
ezInt32	m_iDropSource = -1
ezInt32	m_iDropTarget = -1
Protected Attributes inherited from ezQtPropertyWidget
ezQtPropertyGridWidget *	m_pGrid = nullptr
ezObjectAccessorBase *	m_pObjectAccessor = nullptr
const ezRTTI *	m_pType = nullptr
const ezAbstractProperty *	m_pProp = nullptr
ezHybridArray< ezPropertySelection, 8 >	m_Items
bool	m_bIsDefault
	Whether the variable that the widget represents is currently set to the default value or has been modified.

Additional Inherited Members
Static Public Member Functions inherited from ezQtPropertyWidget
static const ezRTTI *	GetCommonBaseType (const ezHybridArray< ezPropertySelection, 8 > &items)
static QColor	SetPaletteBackgroundColor (ezColorGammaUB inputColor, QPalette &ref_palette)

Detailed Description

Base class for all container properties.

Member Function Documentation

DoPrepareToDie()

void ezQtPropertyContainerWidget::DoPrepareToDie ( )

overrideprotectedvirtual

Implements ezQtPropertyWidget.

GetContainerCategory()

ezPropertyCategory::Enum ezQtPropertyContainerWidget::GetContainerCategory ( ) const

protectedvirtual

Some containers like ezVariant can be both a map or an array so we can't reply on the property type alone. For these containers, this method can be overwritten to retrieve the category from something other than m_pProp->GetCategory().

Reimplemented in ezQtVariantContainerWidget.

HasLabel()

virtual bool ezQtPropertyContainerWidget::HasLabel ( ) const

inlineoverridevirtual

If this returns true (default), a QLabel is created and the text that GetLabel() returns is displayed.

Reimplemented from ezQtPropertyWidget.

OnInit()

void ezQtPropertyContainerWidget::OnInit ( )

overrideprotectedvirtual

Implements ezQtPropertyWidget.

SetIsDefault()

void ezQtPropertyContainerWidget::SetIsDefault ( bool  bIsDefault )

overridevirtual

Whether the variable that the widget represents is currently set to the default value or has been modified.

Reimplemented from ezQtPropertyWidget.

SetSelection()

void ezQtPropertyContainerWidget::SetSelection ( const ezHybridArray< ezPropertySelection, 8 > &  items )

overridevirtual

This is called whenever the selection in the editor changes and thus the widget may need to display a different value.

If the array holds more than one element, the user selected multiple objects. In this case, the code should check whether the values differ across the selected objects and if so, the widget should display "multiple values".

Reimplemented from ezQtPropertyWidget.

Reimplemented in ezQtExposedParametersPropertyWidget, and ezQtVariantContainerWidget.

---

The documentation for this class was generated from the following files:

• /home/runner/work/ezEngine/ezEngine/Code/Tools/Libs/GuiFoundation/PropertyGrid/PropertyBaseWidget.moc.h
• /home/runner/work/ezEngine/ezEngine/Code/Tools/Libs/GuiFoundation/PropertyGrid/Implementation/PropertyBaseWidget.cpp
