#include <ParticleTypeMesh.h>

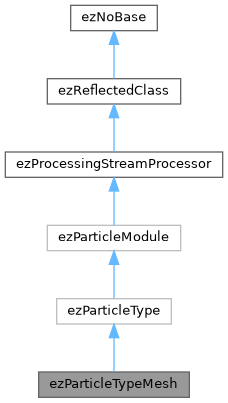

Inheritance diagram for ezParticleTypeMesh:

[legend]

Public Member Functions
virtual void	CreateRequiredStreams () override

virtual void	ExtractTypeRenderData (ezMsgExtractRenderData &ref_msg, const ezTransform &instanceTransform) const override

Public Member Functions inherited from ezParticleType
virtual float	GetMaxParticleRadius (float fParticleSize) const

Public Member Functions inherited from ezParticleModule
virtual void	QueryOptionalStreams ()

void	Reset (ezParticleSystemInstance *pOwner)

virtual void	OnFinalize ()
	Called after everything is set up.

ezParticleSystemInstance *	GetOwnerSystem ()

const ezParticleSystemInstance *	GetOwnerSystem () const

ezParticleEffectInstance *	GetOwnerEffect () const

Public Member Functions inherited from ezProcessingStreamProcessor
	ezProcessingStreamProcessor ()
	Base constructor.

virtual	~ezProcessingStreamProcessor ()
	Base destructor.

Public Member Functions inherited from ezReflectedClass
virtual const ezRTTI *	GetDynamicRTTI () const

bool	IsInstanceOf (const ezRTTI *pType) const
	Returns whether the type of this instance is of the given type or derived from it.

template<typename T >
EZ_ALWAYS_INLINE bool	IsInstanceOf () const
	Returns whether the type of this instance is of the given type or derived from it.

Public Attributes
ezMeshResourceHandle	m_hMesh

ezMaterialResourceHandle	m_hMaterial

float	m_fScale = 1.0f

ezTempHashedString	m_sTintColorParameter

Public Attributes inherited from ezProcessingStreamProcessor
float	m_fPriority = 0.0f
	Used for sorting processors, to ensure a certain order. Lower priority == executed first.

Protected Member Functions
virtual void	InitializeElements (ezUInt64 uiStartIndex, ezUInt64 uiNumElements) override
	This method needs to be implemented in order to initialize new elements to specific values.

virtual void	Process (ezUInt64 uiNumElements) override
	The actual method which processes the data, will be called with the number of elements to process.

bool	QueryMeshAndMaterialInfo () const
	Queries and caches mesh and material information from resources.

void	RequestRequiredWorldModulesForCache (ezParticleWorldModule *pParticleModule) override

Protected Member Functions inherited from ezParticleType
virtual void	StepParticleSystem (const ezTime &tDiff, ezUInt32 uiNumNewParticles)

Protected Member Functions inherited from ezParticleModule
virtual void	OnReset ()
	Called by Reset() to perform custom cleanup.

void	CreateStream (const char szName, ezProcessingStream::DataType Type, ezProcessingStream *ppStream, bool bWillInitializeStream)

virtual ezResult	UpdateStreamBindings () final override
	Internal method which needs to be implemented, gets the concrete stream bindings. This is called every time the streams are resized. Implementations should check that their required streams exist and are of the correct data types.

ezRandom &	GetRNG () const

Protected Attributes
ezRenderDataManager *	m_pRenderDataManager = nullptr

ezProcessingStream *	m_pStreamPosition = nullptr

ezProcessingStream *	m_pStreamSize = nullptr

ezProcessingStream *	m_pStreamColor = nullptr

ezProcessingStream *	m_pStreamRotationSpeed = nullptr

ezProcessingStream *	m_pStreamRotationOffset = nullptr

ezProcessingStream *	m_pStreamAxis = nullptr

ezProcessingStream *	m_pStreamVariation = nullptr

bool	m_bRenderDataCached = false

ezRenderData::Category	m_RenderCategory

ezInstanceDataOffset	m_InstanceDataOffset

ezUInt8	m_uiNumSubMeshes = 0

ezDynamicArray< ezMaterialResourceHandle >	m_CachedSubMeshMaterials

bool	m_bMaterialOverride = false

Protected Attributes inherited from ezParticleType
ezTime	m_TimeDiff

ezUInt64	m_uiLastExtractedFrame

Protected Attributes inherited from ezProcessingStreamProcessor
ezProcessingStreamGroup *	m_pStreamGroup = nullptr
	Back pointer to the stream group - will be set to the owner stream group when adding the stream processor to the group. Can be used to get stream pointers in UpdateStreamBindings();.

Friends
class	ezParticleTypeMeshFactory

Additional Inherited Members
Static Public Member Functions inherited from ezNoBase
static const ezRTTI *	GetStaticRTTI ()

Static Protected Member Functions inherited from ezParticleType
static ezUInt32	ComputeSortingKey (ezParticleTypeRenderMode::Enum mode, ezUInt64 uiResource1Hash, ezUInt64 uiResource2Hash)

Detailed Description

Renders particles as instanced 3D meshes.

Each particle renders a full 3D mesh at its position, oriented according to its rotation axis. Materials can be overridden globally or use the mesh's default materials. Uses instanced rendering for performance when many particles share the same mesh.

Member Function Documentation

◆ CreateRequiredStreams()

void ezParticleTypeMesh::CreateRequiredStreams ( )

overridevirtual

Implements ezParticleModule.

◆ ExtractTypeRenderData()

void ezParticleTypeMesh::ExtractTypeRenderData	(	ezMsgExtractRenderData &	ref_msg,
		const ezTransform &	instanceTransform
	)		const

overridevirtual

Generates render data for all active particles.

Called during render data extraction to create render objects for this particle type.

Implements ezParticleType.

◆ InitializeElements()

void ezParticleTypeMesh::InitializeElements	(	ezUInt64	uiStartIndex,
		ezUInt64	uiNumElements
	)

overrideprotectedvirtual

This method needs to be implemented in order to initialize new elements to specific values.

Reimplemented from ezParticleType.

◆ Process()

virtual void ezParticleTypeMesh::Process ( ezUInt64 uiNumElements )

inlineoverrideprotectedvirtual

The actual method which processes the data, will be called with the number of elements to process.

Implements ezProcessingStreamProcessor.

◆ RequestRequiredWorldModulesForCache()

void ezParticleTypeMesh::RequestRequiredWorldModulesForCache ( ezParticleWorldModule * pParticleModule )

overrideprotectedvirtual

Override this to cache world module pointers for later access.

Cached modules can be retrieved via ezParticleWorldModule::GetCachedWorldModule().

Reimplemented from ezParticleModule.

The documentation for this class was generated from the following files:

/home/runner/work/ezEngine/ezEngine/Code/EnginePlugins/ParticlePlugin/Type/Mesh/ParticleTypeMesh.h
/home/runner/work/ezEngine/ezEngine/Code/EnginePlugins/ParticlePlugin/Type/Mesh/ParticleTypeMesh.cpp
