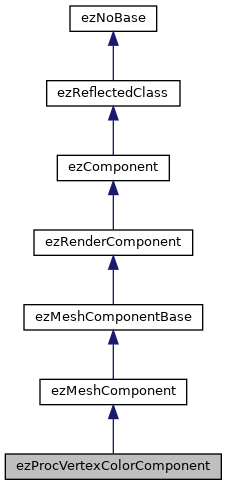

Inheritance diagram for ezProcVertexColorComponent:

[legend]

Public Member Functions
virtual void	OnActivated () override
	This method is called when the component gets activated.

virtual void	OnDeactivated () override
	This method is called when the component gets deactivated.

void	SetResourceFile (ezStringView sFile)

ezStringView	GetResourceFile () const

void	SetResource (const ezProcGenGraphResourceHandle &hResource)

const ezProcGenGraphResourceHandle &	GetResource () const

const ezProcVertexColorOutputDesc &	GetOutputDesc (ezUInt32 uiIndex) const

void	SetOutputDesc (ezUInt32 uiIndex, const ezProcVertexColorOutputDesc &outputDesc)

virtual void	SerializeComponent (ezWorldWriter &inout_stream) const override
	Override this to save the current state of the component to the given stream.

virtual void	DeserializeComponent (ezWorldReader &inout_stream) override
	Override this to load the current state of the component from the given stream.

void	OnTransformChanged (ezMsgTransformChanged &ref_msg)

Public Member Functions inherited from ezMeshComponent
void	OnMsgExtractGeometry (ezMsgExtractGeometry &ref_msg) const
	Extracts the render geometry for export etc.

Public Member Functions inherited from ezMeshComponentBase
virtual ezResult	GetLocalBounds (ezBoundingBoxSphere &ref_bounds, bool &ref_bAlwaysVisible, ezMsgUpdateLocalBounds &ref_msg) override
	Called by ezRenderComponent::OnUpdateLocalBounds().

void	SetMesh (const ezMeshResourceHandle &hMesh)
	Changes which mesh to render.

EZ_ALWAYS_INLINE const ezMeshResourceHandle &	GetMesh () const

	EZ_ADD_RESOURCEHANDLE_ACCESSORS_WITH_SETTER (Mesh, m_hMesh, SetMesh)

void	SetMaterial (ezUInt32 uiIndex, const ezMaterialResourceHandle &hMaterial)
	Sets the material that should be used for the sub-mesh with the given index.

ezMaterialResourceHandle	GetMaterial (ezUInt32 uiIndex) const

void	SetColor (const ezColor &color)
	An additional tint color passed to the renderer to modify the mesh.

const ezColor &	GetColor () const

void	SetCustomData (const ezVec4 &vData)
	An additional vec4 passed to the renderer that can be used by custom material shaders for effects.

const ezVec4 &	GetCustomData () const

void	SetSortingDepthOffset (float fOffset)
	The sorting depth offset allows to tweak the order in which this mesh is rendered relative to other meshes.

float	GetSortingDepthOffset () const

void	OnMsgSetMeshMaterial (ezMsgSetMeshMaterial &ref_msg)

void	OnMsgSetColor (ezMsgSetColor &ref_msg)

void	OnMsgSetCustomData (ezMsgSetCustomData &ref_msg)

Public Member Functions inherited from ezRenderComponent
void	TriggerLocalBoundsUpdate ()
	Call this when some value was modified that affects the size of the local bounding box and it should be recomputed.

EZ_ALWAYS_INLINE ezUInt32	GetUniqueIdForRendering (ezUInt32 uiInnerIndex=0, ezUInt32 uiInnerIndexShift=24) const
	Computes a unique ID for the given component, that is usually given to the renderer to distinguish objects.

Public Member Functions inherited from ezComponent
void	SetActiveFlag (bool bEnabled)
	Sets the active flag of the component, which affects its active state.

bool	GetActiveFlag () const
	Checks whether the 'active flag' is set on this component. Note that this does not mean that the component is also 'active'.

bool	IsActive () const
	Checks whether this component is in an active state.

bool	IsActiveAndInitialized () const
	Returns whether this component is active and initialized.

bool	IsActiveAndSimulating () const
	Whether the component is currently active and simulation has been started as well.

ezComponentManagerBase *	GetOwningManager ()
	Returns the corresponding manager for this component.

const ezComponentManagerBase *	GetOwningManager () const
	Returns the corresponding manager for this component.

ezGameObject *	GetOwner ()
	Returns the owner game object if the component is attached to one or nullptr.

const ezGameObject *	GetOwner () const
	Returns the owner game object if the component is attached to one or nullptr.

ezWorld *	GetWorld ()
	Returns the corresponding world for this component.

const ezWorld *	GetWorld () const
	Returns the corresponding world for this component.

ezComponentHandle	GetHandle () const
	Returns a handle to this component.

ezUInt32	GetUniqueID () const
	Returns the unique id for this component.

void	SetUniqueID (ezUInt32 uiUniqueID)
	Sets the unique id for this component.

void	EnsureInitialized ()
	Ensures that the component is initialized. Must only be called from another component's Initialize callback.

void	EnsureSimulationStarted ()
	Ensures that the OnSimulationStarted method has been called. Must only be called from another component's OnSimulationStarted callback.

EZ_ALWAYS_INLINE bool	SendMessage (ezMessage &ref_msg)
	Sends a message to this component.

EZ_ALWAYS_INLINE bool	SendMessage (ezMessage &ref_msg) const

void	PostMessage (const ezMessage &msg, ezTime delay=ezTime::MakeZero(), ezObjectMsgQueueType::Enum queueType=ezObjectMsgQueueType::NextFrame) const
	Queues the message for the given phase. The message is processed after the given delay in the corresponding phase.

virtual bool	HandlesMessage (const ezMessage &msg) const
	Returns whether the given Message is handled by this component.

void	SetUserFlag (ezUInt8 uiFlagIndex, bool bSet)
	Be careful to check which flags may already be in use by base classes.

bool	GetUserFlag (ezUInt8 uiFlagIndex) const
	Retrieves a custom flag. Index must be between 0 and 7.

void	SetCreatedByPrefab ()
	Adds ezObjectFlags::CreatedByPrefab to the component. See the flag for details.

bool	WasCreatedByPrefab () const
	Checks whether the ezObjectFlags::CreatedByPrefab flag is set on this component.

void	DeleteComponent ()
	Deletes this component. Note that the component will be invalidated first and the actual deletion is postponed.

Public Member Functions inherited from ezReflectedClass
virtual const ezRTTI *	GetDynamicRTTI () const

bool	IsInstanceOf (const ezRTTI *pType) const
	Returns whether the type of this instance is of the given type or derived from it.

template<typename T >
EZ_ALWAYS_INLINE bool	IsInstanceOf () const
	Returns whether the type of this instance is of the given type or derived from it.

Protected Member Functions
virtual ezMeshRenderData *	CreateRenderData () const override

Protected Member Functions inherited from ezMeshComponentBase
ezUInt32	Materials_GetCount () const

ezString	Materials_GetValue (ezUInt32 uiIndex) const

void	Materials_SetValue (ezUInt32 uiIndex, ezString sValue)

void	Materials_Insert (ezUInt32 uiIndex, ezString sValue)

void	Materials_Remove (ezUInt32 uiIndex)

void	OnMsgExtractRenderData (ezMsgExtractRenderData &msg) const

Protected Member Functions inherited from ezRenderComponent
virtual void	Deinitialize () override
	This method is called before the component is destroyed. A derived type can override this method to do common de-initialization work.

void	OnUpdateLocalBounds (ezMsgUpdateLocalBounds &msg)

void	InvalidateCachedRenderData ()

Protected Member Functions inherited from ezComponent
	ezComponent ()
	Keep the constructor private or protected in derived classes, so it cannot be called manually.

bool	IsDynamic () const
	Returns whether this component is dynamic and thus can only be attached to dynamic game objects.

virtual ezWorldModuleTypeId	GetTypeId () const =0

virtual ezComponentMode::Enum	GetMode () const =0

virtual void	Initialize ()
	Can be overridden for basic initialization that depends on a valid hierarchy and position.

virtual void	OnSimulationStarted ()
	This method is called once for active components, at the start of the next world update, but only when the world is simulated.

void	EnableUnhandledMessageHandler (bool enable)
	By default disabled. Enable to have OnUnhandledMessage() called for every unhandled message.

virtual bool	OnUnhandledMessage (ezMessage &msg, bool bWasPostedMsg)
	When EnableUnhandledMessageHandler() was activated, this is called for all messages for which there is no dedicated message handler.

virtual bool	OnUnhandledMessage (ezMessage &msg, bool bWasPostedMsg) const
	When EnableUnhandledMessageHandler() was activated, this is called for all messages for which there is no dedicated message handler.

bool	IsInitialized () const

bool	IsInitializing () const

bool	IsSimulationStarted () const

Additional Inherited Members
Static Public Member Functions inherited from ezRenderComponent
static ezUInt32	GetUniqueIdForRendering (const ezComponent &component, ezUInt32 uiInnerIndex=0, ezUInt32 uiInnerIndexShift=24)
	Computes a unique ID for the given component, that is usually given to the renderer to distinguish objects.

Static Public Member Functions inherited from ezNoBase
static const ezRTTI *	GetStaticRTTI ()

Protected Attributes inherited from ezMeshComponentBase
ezMeshResourceHandle	m_hMesh

ezDynamicArray< ezMaterialResourceHandle >	m_Materials

ezColor	m_Color = ezColor::White

ezVec4	m_vCustomData = ezVec4(0, 1, 0, 1)

float	m_fSortingDepthOffset = 0.0f

Protected Attributes inherited from ezComponent
const ezRTTI *	m_pMessageDispatchType = nullptr
	Messages will be dispatched to this type. Default is what GetDynamicRTTI() returns, can be redirected if necessary.

Member Function Documentation

◆ CreateRenderData()

ezMeshRenderData * ezProcVertexColorComponent::CreateRenderData ( ) const

overrideprotectedvirtual

Reimplemented from ezMeshComponentBase.

◆ DeserializeComponent()

void ezProcVertexColorComponent::DeserializeComponent ( ezWorldReader & inout_stream )

overridevirtual

Override this to load the current state of the component from the given stream.

The active state will be automatically serialized. The 'initialized' state is not serialized, all components will be initialized after creation, even if they were already in an initialized state when they were serialized.

Reimplemented from ezMeshComponentBase.

◆ OnActivated()

void ezProcVertexColorComponent::OnActivated ( )

overridevirtual

This method is called when the component gets activated.

By default a component is active, but it can be created in an inactive state. In such a case OnActivated() is only called once a component is activated. If a component gets switched between active and inactive at runtime, OnActivated() and OnDeactivated() are called accordingly. In contrast Initialize() and Deinitialize() are only ever called once.

See also: OnActivated(), OnDeactivated(), Initialize(), Deinitialize(), OnSimulationStarted()

Reimplemented from ezRenderComponent.

◆ OnDeactivated()

void ezProcVertexColorComponent::OnDeactivated ( )

overridevirtual

This method is called when the component gets deactivated.

Upon destruction, a component that is active first gets deactivated. Therefore OnDeactivated() should be used for typical game code cleanup.

See also: OnActivated(), OnDeactivated(), Initialize(), Deinitialize(), OnSimulationStarted()

Reimplemented from ezRenderComponent.

◆ SerializeComponent()

void ezProcVertexColorComponent::SerializeComponent ( ezWorldWriter & inout_stream ) const

overridevirtual

Override this to save the current state of the component to the given stream.

Reimplemented from ezMeshComponentBase.

The documentation for this class was generated from the following files:

/home/runner/work/ezEngine/ezEngine/Code/EnginePlugins/ProcGenPlugin/Components/ProcVertexColorComponent.h
/home/runner/work/ezEngine/ezEngine/Code/EnginePlugins/ProcGenPlugin/Components/Implementation/ProcVertexColorComponent.cpp
