ezManipulatorAdapter Class Referenceabstract

#include <ManipulatorAdapter.h>

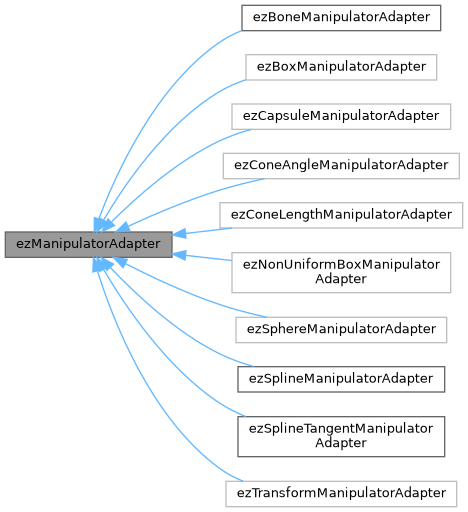

Inheritance diagram for ezManipulatorAdapter:
Inheritance graph
[legend]

Public Member Functions

void SetManipulator (const ezManipulatorAttribute *pAttribute, const ezDocumentObject *pObject)
 Connects this adapter to the given attribute and document object, then calls Finalize() and Update().

virtual void QueryGridSettings (ezGridSettingsMsgToEngine &out_gridSettings)


Protected Member Functions

virtual ezTransform GetOffsetTransform () const

virtual ezTransform GetObjectTransform () const

ezObjectAccessorBase * GetObjectAccessor () const

const ezAbstractProperty * GetProperty (const char *szProperty) const

virtual void Finalize ()=0
 Called once after SetManipulator(). Use this for one-time gizmo setup that depends on m_pObject being valid.

virtual void Update ()=0
 Called when a relevant property on m_pObject changes, after a transaction finishes, or on visibility changes.

virtual void UpdateGizmoTransform ()=0
 Called every frame before the viewport redraws. Update gizmo world-space transforms here.

void BeginTemporaryInteraction ()
 Starts a temporary command sequence for live drag interaction. Must be paired with EndTemporaryInteraction() or CancelTemporayInteraction().

void EndTemporaryInteraction ()

void CancelTemporayInteraction ()

void ChangeProperties (const char *szProperty1, ezVariant value1, const char *szProperty2=nullptr, ezVariant value2=ezVariant(), const char *szProperty3=nullptr, ezVariant value3=ezVariant(), const char *szProperty4=nullptr, ezVariant value4=ezVariant(), const char *szProperty5=nullptr, ezVariant value5=ezVariant(), const char *szProperty6=nullptr, ezVariant value6=ezVariant())
 Convenience wrapper that starts a transaction, sets up to six properties on m_pObject, and finishes the transaction.

void ClampProperty (const char *szProperty, ezVariant &value) const


Protected Attributes

bool m_bManipulatorIsVisible = false

const ezManipulatorAttribute * m_pManipulatorAttr = nullptr

const ezDocumentObject * m_pObject = nullptr
 The document object this adapter operates on. Valid for the lifetime of the adapter.


Detailed Description

Abstract base class for in-viewport gizmo adapters driven by an ezManipulatorAttribute.

An adapter bridges one document object and one ezManipulatorAttribute to a set of gizmos rendered in the viewport. It is instantiated by ezManipulatorAdapterRegistry and initialized via SetManipulator(). Subclasses implement Finalize(), Update(), and UpdateGizmoTransform() to set up and maintain their gizmos. UpdateGizmoTransform() is called every frame before the viewport is redrawn, while Update() is called on property changes and after transactions.

Adapters are deleted synchronously by ezManipulatorAdapterRegistry::ClearAdapters when the active manipulator changes (e.g. due to a selection change). Any code path inside an adapter that changes the selection must therefore defer the change to avoid deleting itself while still on the call stack.

Member Function Documentation

◆ Finalize()

virtual void ezManipulatorAdapter::Finalize ( )
protectedpure virtual

Called once after SetManipulator(). Use this for one-time gizmo setup that depends on m_pObject being valid.

Implemented in ezBoneManipulatorAdapter, ezBoxManipulatorAdapter, ezCapsuleManipulatorAdapter, ezConeAngleManipulatorAdapter, ezConeLengthManipulatorAdapter, ezNonUniformBoxManipulatorAdapter, ezSphereManipulatorAdapter, ezSplineManipulatorAdapter, ezSplineTangentManipulatorAdapter, and ezTransformManipulatorAdapter.

◆ Update()

virtual void ezManipulatorAdapter::Update ( )
protectedpure virtual

Called when a relevant property on m_pObject changes, after a transaction finishes, or on visibility changes.

Implemented in ezBoneManipulatorAdapter, ezBoxManipulatorAdapter, ezCapsuleManipulatorAdapter, ezConeAngleManipulatorAdapter, ezConeLengthManipulatorAdapter, ezNonUniformBoxManipulatorAdapter, ezSphereManipulatorAdapter, ezSplineManipulatorAdapter, ezSplineTangentManipulatorAdapter, and ezTransformManipulatorAdapter.

◆ UpdateGizmoTransform()

virtual void ezManipulatorAdapter::UpdateGizmoTransform ( )
protectedpure virtual

Called every frame before the viewport redraws. Update gizmo world-space transforms here.

Implemented in ezBoneManipulatorAdapter, ezBoxManipulatorAdapter, ezCapsuleManipulatorAdapter, ezConeAngleManipulatorAdapter, ezConeLengthManipulatorAdapter, ezNonUniformBoxManipulatorAdapter, ezSphereManipulatorAdapter, ezSplineManipulatorAdapter, ezSplineTangentManipulatorAdapter, and ezTransformManipulatorAdapter.

The documentation for this class was generated from the following files:
