Accessor for a sub-tree on an ezVariant property. The tools foundation code uses an ezDocumentObject, one of its ezAbstractProperty and an optional ezVariant index to reference to properties. Any deeper hierarchies must be built from additional objects. This principle prevents the GUI to reference anything inside an ezVariant that stores an VariantArray or VariantDictionary as ezVariant is a pure value type and cannot store additional objects on the tool side. To work around this, this class creates a view one level deeper into an ezVariant. This is done by calling SetSubItems which for each object in the map moves the view into the sub-tree referenced by the given value of the map. More...

#include <VariantSubAccessor.h>

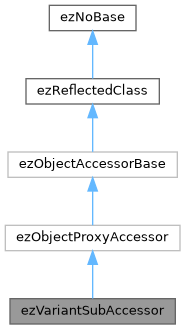

Inheritance diagram for ezVariantSubAccessor:

[legend]

Public Member Functions
	ezVariantSubAccessor (ezObjectAccessorBase pSource, const ezAbstractProperty pProp)
	Constructor.

void	SetSubItems (const ezMap< const ezDocumentObject *, ezVariant > &subItemMap)
	Sets the sub-tree indices for the selected objects.

const ezAbstractProperty *	GetRootProperty () const
	Returns the property this accessor wraps.

ezInt32	GetDepth () const
	How many level deep the view is inside the property.

ezResult	GetPath (const ezDocumentObject *pObject, ezDynamicArray< ezVariant > &out_path) const

virtual ezStatus	GetValue (const ezDocumentObject pObject, const ezAbstractProperty pProp, ezVariant &out_value, ezVariant index=ezVariant()) override

virtual ezStatus	SetValue (const ezDocumentObject pObject, const ezAbstractProperty pProp, const ezVariant &newValue, ezVariant index=ezVariant()) override

virtual ezStatus	InsertValue (const ezDocumentObject pObject, const ezAbstractProperty pProp, const ezVariant &newValue, ezVariant index=ezVariant()) override

virtual ezStatus	RemoveValue (const ezDocumentObject pObject, const ezAbstractProperty pProp, ezVariant index=ezVariant()) override

virtual ezStatus	MoveValue (const ezDocumentObject pObject, const ezAbstractProperty pProp, const ezVariant &oldIndex, const ezVariant &newIndex) override

virtual ezStatus	GetCount (const ezDocumentObject pObject, const ezAbstractProperty pProp, ezInt32 &out_iCount) override

virtual ezStatus	GetKeys (const ezDocumentObject pObject, const ezAbstractProperty pProp, ezDynamicArray< ezVariant > &out_keys) override

virtual ezStatus	GetValues (const ezDocumentObject pObject, const ezAbstractProperty pProp, ezDynamicArray< ezVariant > &out_values) override

virtual ezObjectAccessorBase *	ResolveProxy (const ezDocumentObject &ref_pObject, const ezRTTI &ref_pType, const ezAbstractProperty *&ref_pProp, ezDynamicArray< ezVariant > &ref_indices) override
	If this accessor is a proxy accessor, transform the input parameters into those of the source accessor. The default implementation does nothing and returns this. Usually this only needs to be implemented on ezObjectProxyAccessor derived accessors that modify the type, property, view etc of an object.

Public Member Functions inherited from ezObjectProxyAccessor
	ezObjectProxyAccessor (ezObjectAccessorBase *pSource)

ezObjectAccessorBase *	GetSourceAccessor () const

virtual void	StartTransaction (ezStringView sDisplayString) override

virtual void	CancelTransaction () override

virtual void	FinishTransaction () override

virtual void	BeginTemporaryCommands (ezStringView sDisplayString, bool bFireEventsWhenUndoingTempCommands=false) override

virtual void	CancelTemporaryCommands () override

virtual void	FinishTemporaryCommands () override

virtual const ezDocumentObject *	GetObject (const ezUuid &object) override

virtual ezStatus	AddObject (const ezDocumentObject pParent, const ezAbstractProperty pParentProp, const ezVariant &index, const ezRTTI *pType, ezUuid &inout_objectGuid) override

virtual ezStatus	RemoveObject (const ezDocumentObject *pObject) override

virtual ezStatus	MoveObject (const ezDocumentObject pObject, const ezDocumentObject pNewParent, const ezAbstractProperty *pParentProp, const ezVariant &index) override

Public Member Functions inherited from ezObjectAccessorBase
const ezDocumentObjectManager *	GetObjectManager () const

ezStatus	GetValueByName (const ezDocumentObject *pObject, ezStringView sProp, ezVariant &out_value, ezVariant index=ezVariant())

ezStatus	SetValueByName (const ezDocumentObject *pObject, ezStringView sProp, const ezVariant &newValue, ezVariant index=ezVariant())

ezStatus	InsertValueByName (const ezDocumentObject *pObject, ezStringView sProp, const ezVariant &newValue, ezVariant index=ezVariant())

ezStatus	RemoveValueByName (const ezDocumentObject *pObject, ezStringView sProp, ezVariant index=ezVariant())

ezStatus	MoveValueByName (const ezDocumentObject *pObject, ezStringView sProp, const ezVariant &oldIndex, const ezVariant &newIndex)

ezStatus	GetCountByName (const ezDocumentObject *pObject, ezStringView sProp, ezInt32 &out_iCount)

ezStatus	AddObjectByName (const ezDocumentObject pParent, ezStringView sParentProp, const ezVariant &index, const ezRTTI pType, ezUuid &inout_objectGuid)

ezStatus	MoveObjectByName (const ezDocumentObject pObject, const ezDocumentObject pNewParent, ezStringView sParentProp, const ezVariant &index)

ezStatus	GetKeysByName (const ezDocumentObject *pObject, ezStringView sProp, ezDynamicArray< ezVariant > &out_keys)

ezStatus	GetValuesByName (const ezDocumentObject *pObject, ezStringView sProp, ezDynamicArray< ezVariant > &out_values)

const ezDocumentObject *	GetChildObjectByName (const ezDocumentObject *pObject, ezStringView sProp, ezVariant index)

ezStatus	ClearByName (const ezDocumentObject *pObject, ezStringView sProp)

const ezAbstractProperty *	FindPropertyByName (const ezDocumentObject *pObject, ezStringView sProp)

template<typename T >
T	Get (const ezDocumentObject pObject, const ezAbstractProperty pProp, ezVariant index=ezVariant())

template<typename T >
T	GetByName (const ezDocumentObject *pObject, ezStringView sProp, ezVariant index=ezVariant())

ezInt32	GetCount (const ezDocumentObject pObject, const ezAbstractProperty pProp)

ezInt32	GetCountByName (const ezDocumentObject *pObject, ezStringView sProp)

Public Member Functions inherited from ezReflectedClass
virtual const ezRTTI *	GetDynamicRTTI () const

bool	IsInstanceOf (const ezRTTI *pType) const
	Returns whether the type of this instance is of the given type or derived from it.

template<typename T >
EZ_ALWAYS_INLINE bool	IsInstanceOf () const
	Returns whether the type of this instance is of the given type or derived from it.

Additional Inherited Members
Static Public Member Functions inherited from ezNoBase
static const ezRTTI *	GetStaticRTTI ()

Protected Member Functions inherited from ezObjectAccessorBase
	ezObjectAccessorBase (const ezDocumentObjectManager *pManager)

void	FireDocumentObjectStructureEvent (const ezDocumentObjectStructureEvent &e)

void	FireDocumentObjectPropertyEvent (const ezDocumentObjectPropertyEvent &e)

Protected Attributes inherited from ezObjectProxyAccessor
ezObjectAccessorBase *	m_pSource = nullptr

Protected Attributes inherited from ezObjectAccessorBase
const ezDocumentObjectManager *	m_pConstManager

Detailed Description

Accessor for a sub-tree on an ezVariant property. The tools foundation code uses an ezDocumentObject, one of its ezAbstractProperty and an optional ezVariant index to reference to properties. Any deeper hierarchies must be built from additional objects. This principle prevents the GUI to reference anything inside an ezVariant that stores an VariantArray or VariantDictionary as ezVariant is a pure value type and cannot store additional objects on the tool side. To work around this, this class creates a view one level deeper into an ezVariant. This is done by calling SetSubItems which for each object in the map moves the view into the sub-tree referenced by the given value of the map.

Constructor & Destructor Documentation

◆ ezVariantSubAccessor()

ezVariantSubAccessor::ezVariantSubAccessor	(	ezObjectAccessorBase *	pSource,
		const ezAbstractProperty *	pProp
	)

Constructor.

Parameters

pSource	The original accessor that is going to be proxied. By chaining this class an ezVariant can be explored deeper and deeper.
pProp	The ezVariant property that is going to be proxied. Only this property is allowed to be accessed by the accessor functions.

Member Function Documentation

◆ GetCount()

ezStatus ezVariantSubAccessor::GetCount	(	const ezDocumentObject *	pObject,
		const ezAbstractProperty *	pProp,
		ezInt32 &	out_iCount
	)

overridevirtual

Reimplemented from ezObjectProxyAccessor.

◆ GetKeys()

ezStatus ezVariantSubAccessor::GetKeys	(	const ezDocumentObject *	pObject,
		const ezAbstractProperty *	pProp,
		ezDynamicArray< ezVariant > &	out_keys
	)

overridevirtual

Reimplemented from ezObjectProxyAccessor.

◆ GetPath()

ezResult ezVariantSubAccessor::GetPath	(	const ezDocumentObject *	pObject,
		ezDynamicArray< ezVariant > &	out_path
	)		const

Builds a path up the hierarchy of wrapped ezVariantSubAccessor objects to determine the path to the current sub-tree of the ezVariant.

Parameters

pObject	The object for which the path should be computed
out_path	An array of indices that has to be followed from the root of the ezVariant to each the current sub-tree view.

Returns: Returns EZ_FAILURE if pObject is not known.

◆ GetValue()

ezStatus ezVariantSubAccessor::GetValue	(	const ezDocumentObject *	pObject,
		const ezAbstractProperty *	pProp,
		ezVariant &	out_value,
		ezVariant	index = `ezVariant()`
	)

overridevirtual

Reimplemented from ezObjectProxyAccessor.

◆ GetValues()

ezStatus ezVariantSubAccessor::GetValues	(	const ezDocumentObject *	pObject,
		const ezAbstractProperty *	pProp,
		ezDynamicArray< ezVariant > &	out_values
	)

overridevirtual

Reimplemented from ezObjectProxyAccessor.

◆ InsertValue()

ezStatus ezVariantSubAccessor::InsertValue	(	const ezDocumentObject *	pObject,
		const ezAbstractProperty *	pProp,
		const ezVariant &	newValue,
		ezVariant	index = `ezVariant()`
	)

overridevirtual

Reimplemented from ezObjectProxyAccessor.

◆ MoveValue()

ezStatus ezVariantSubAccessor::MoveValue	(	const ezDocumentObject *	pObject,
		const ezAbstractProperty *	pProp,
		const ezVariant &	oldIndex,
		const ezVariant &	newIndex
	)

overridevirtual

Reimplemented from ezObjectProxyAccessor.

◆ RemoveValue()

ezStatus ezVariantSubAccessor::RemoveValue	(	const ezDocumentObject *	pObject,
		const ezAbstractProperty *	pProp,
		ezVariant	index = `ezVariant()`
	)

overridevirtual

Reimplemented from ezObjectProxyAccessor.

◆ ResolveProxy()

ezObjectAccessorBase * ezVariantSubAccessor::ResolveProxy	(	const ezDocumentObject *&	ref_pObject,
		const ezRTTI *&	ref_pType,
		const ezAbstractProperty *&	ref_pProp,
		ezDynamicArray< ezVariant > &	ref_indices
	)

overridevirtual

If this accessor is a proxy accessor, transform the input parameters into those of the source accessor. The default implementation does nothing and returns this. Usually this only needs to be implemented on ezObjectProxyAccessor derived accessors that modify the type, property, view etc of an object.

Parameters

ref_pObject	In: proxy object, out: source object.
ref_pType	In: proxy type, out: source type.
ref_pProp	In: proxy property, out: source property.
ref_indices	In: proxy indices, out: source indices. While most of the time this will be one index, e.g. an array or map index. In case of variants that can store containers in containers this can be a chain of indices into a variant hierarchy.

Returns: Returns the source accessor.

Reimplemented from ezObjectAccessorBase.

◆ SetSubItems()

void ezVariantSubAccessor::SetSubItems ( const ezMap< const ezDocumentObject *, ezVariant > & subItemMap )

Sets the sub-tree indices for the selected objects.

Parameters

subItemMap Object to index map. Note that as this is in the ToolsFoundation it cannot use the ezPropertySelection class.

◆ SetValue()

ezStatus ezVariantSubAccessor::SetValue	(	const ezDocumentObject *	pObject,
		const ezAbstractProperty *	pProp,
		const ezVariant &	newValue,
		ezVariant	index = `ezVariant()`
	)

overridevirtual

Reimplemented from ezObjectProxyAccessor.

The documentation for this class was generated from the following files:

/home/runner/work/ezEngine/ezEngine/Code/Tools/Libs/ToolsFoundation/Object/VariantSubAccessor.h
/home/runner/work/ezEngine/ezEngine/Code/Tools/Libs/ToolsFoundation/Object/Implementation/VariantSubAccessor.cpp
